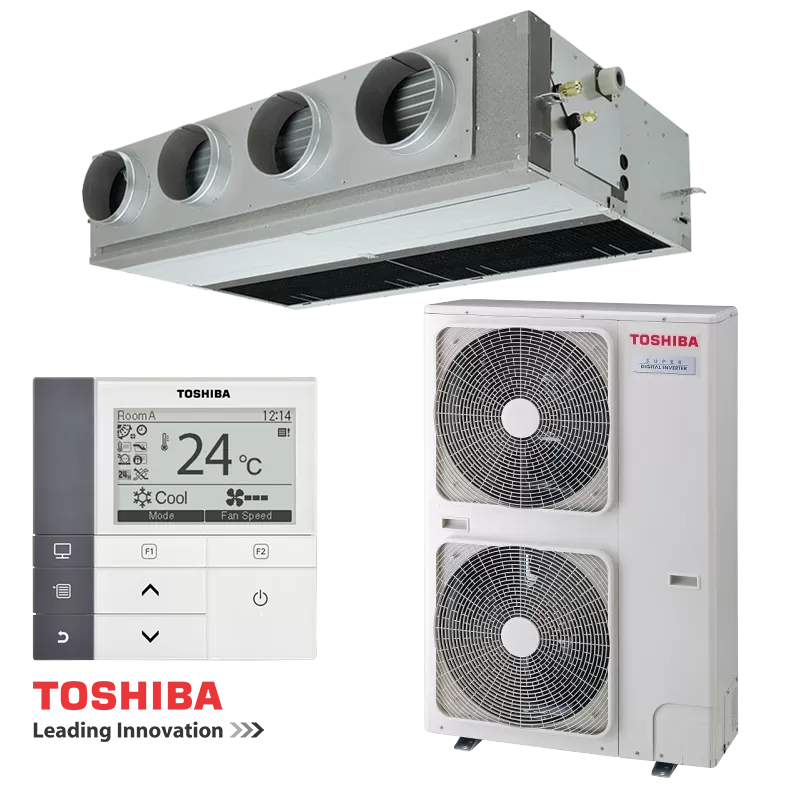

Duct Air conditioner Toshiba RAV-HM1601BTP-E + RAV-GM1601ATP-E

Comments

Technical information

• Basic
• Cooling capacity (Min./Nom./Max):

  3.0 / 14.0 / 16.0 kW

• Heating capacity (Min./Nom./Max):

  3.0 / 16.0 / 18.0 kW

• Consumption power - cooling (Min./Nom./Max):

  0.65 / 5.13 / 6.5 kW

• Consumption power - heating (Min./Nom./Max):

  0.65 / 4.69 / 6.89 kW

• Capacity (BTU):

  48 000 BTU

• Nominal efficiency EER cooling:

  2.73

• Seasonal efficiency SEER cooling:

  5.3

• COP:

  3.41

• SCOP:

  3.9

• Annual energy consumption (Cooling/Heating):

  1584 / 2872 kWh

• Operation Range (Cooling):

  -15 ~ 46 °C

• Operation Range (Heating):

  -15 ~ 15 °C

• Suitable for rooms up to:

  99 square meters

• Warranty:

  36 months

• Refrigerant:

  R-32

• Power supply (Phase/Frequency/Voltage):

  1~/50/220-240

• Indoor unit
• Dimensions:

  275 x 1400 x 750 H x W x L (mm)

• Weight:

  40 kg

• Sound Pressure - cooling (High/Nom./Low/Silent):

  40 / 36 / 33 / - dB

• Sound Pressure - heating (High/Nom./Low/Silent):

  40 / 36 / 33 / - dB

• Outdoor unit
• Compressor type:

  Toshiba

• Dimensions:

  1340 x 900 x 320 H x W x L (mm)

• Weight:

  99 kg

• Refrigerant piping - Liquid / Gas:

  9.52 / 15.9 mm (3/8" / 5/8") mm / inch

• Sound Pressure - cooling (High/Nom./Low/Silent):

  < 53 dB

• Sound Pressure - heating (High/Nom./Low/Silent):

  < 55 dB
