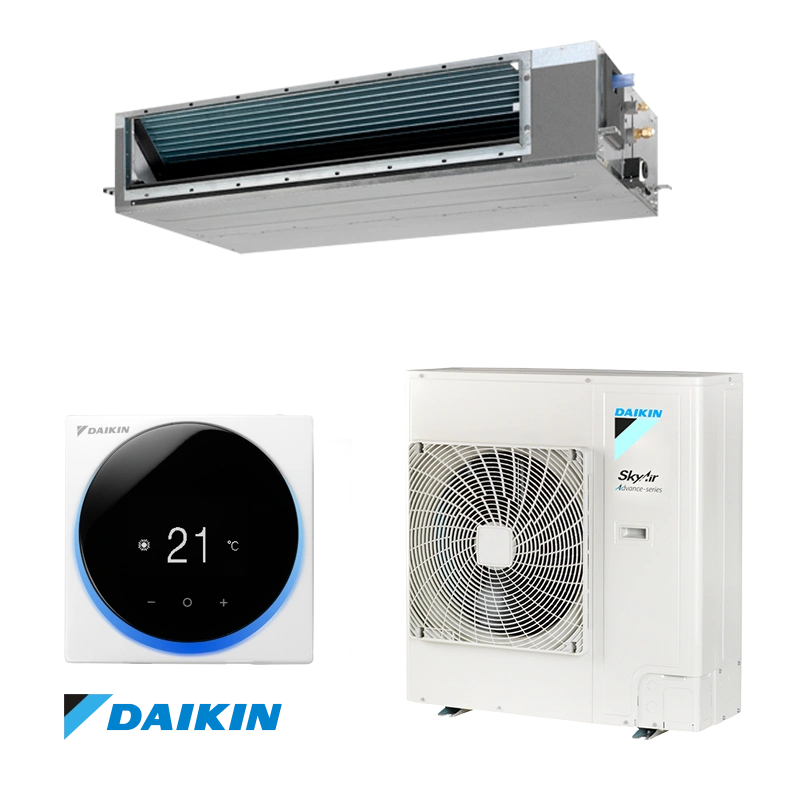

Duct Air conditioner Daikin FBA100A + RZASG100MY1 - 3-phase

  • Code: fba1003
  • Out of Stock
  • Weight: 22.00 kg

Duct Air conditioner Daikin FBA100A / RZASG100MY1 can easily be mounted in a ceiling void of only 300 mm, leaving only suction and discharge grilles visible. It offers you top efficiency, extremely low sound levels and optimal comfort.

Documents

User documentation
  • Installation manual for Daikin FBA100A / RZASG100MY1 Download
  • Installer reference guide for Daikin FBA100A / RZASG100MY1 Download
  • Energy label for Daikin FBA100A / RZASG100MY1 Download
  • Prodcut fiche for Daikin FBA100A / RZASG100MY1 Download

Comments

  1. Add comment
  2. 1 2 3 4 5

Technical information

  • Basic
  • Cooling capacity (Min./Nom./Max):

    - / 9.5 / - kW

  • Heating capacity (Min./Nom./Max):

    - / 10.8 / - kW

  • Consumption power - cooling (Min./Nom./Max):

    - / 2.84 / - kW

  • Consumption power - heating (Min./Nom./Max):

    - / 2.94 / - kW

  • Capacity (BTU):

    34 000 BTU

  • Nominal efficiency EER cooling:

    3.35

  • Seasonal efficiency SEER cooling:

    5.57

  • COP:

    3.67

  • SCOP:

    4.15

  • Annual energy consumption (Cooling/Heating):

    597 / 3812 kWh

  • Energy label (Cooling / Heating) - Average climate:

    A / A+

  • Operation Range (Cooling):

    -15 ~ 46 °C

  • Operation Range (Heating):

    -15 ~ 15.5 °C

  • Suitable for rooms up to:

    67 square meters

  • Warranty:

    36 months

  • Refrigerant:

    R-410A / R-32

  • Power supply (Phase/Frequency/Voltage):

    3~/50/380-415

  • Indoor unit
  • Dimensions:

    245 x 1400 x 800 H x W x L (mm)

  • Weight:

    46 kg

  • Sound Pressure - cooling (High/Nom./Low/Silent):

    34 / 32 / 30 / - dB (A)

  • Sound Pressure - heating (High/Nom./Low/Silent):

    34 / 32 / 30 / - dB (A)

  • Outdoor unit
  • Compressor type:

    Daikin

  • Dimensions:

    990 x 940 x 320 H x W x L (mm)

  • Weight:

    73 kg

  • Refrigerant piping - Liquid / Gas:

    9.52 / 15.9 mm (3/8" / 5/8") mm / inch

  • Sound Pressure - cooling (High/Nom./Low/Silent):

    - / 53 / - / - dB (A)

  • Sound Pressure - heating (High/Nom./Low/Silent):

    - / 57 / - / - dB (A)

Details

Flexible mounting

Duct air conditioners Daikin are extremely flexible in terms of installation due to the variety of models and options to create air pressure. "Slim" models have a height of only 245 millimeters, which makes it possible to mount them on 300 mm-high ceilings. The possibility to select the suction side at the back or the bottom makes this air conditioner type preferred by designers and architects.


Maximum comfort

Daikin ducted air conditioners offer maximum comfort that is guaranteed regardless of the length of the air duct, which gives you an unlimited choice of places where to put the bars. The spot can be chosen on a wall or on the ceiling, so as to avoid direct cold drafts, and achieve uniform air flow throughout the room.


Wide operating temperature range

The duct type SkyAir series provides a wide operating temperature range. In the cooling mode, maintaining a range of -5°C to +43°C makes these duct type air conditioners perfect for use even in server rooms where cooling is required even at low outdoor temperatures. In the heating mode, maintaining high energy efficiency at outdoor temperatures of -25°C contributes to low power consumption and high energy savings.


Seasonal efficiency

Seasonal efficiency shows seasonal performance of heating or cooling much more accurately and realistically, taking into account the different conditions of temperature and work load. High energy efficiency is intrinsically linked to low power consumption.

Inverter technology

Inverter technology allows air conditioners to adjust their output power for heating or cooling according to the room temperature. The set room temperature is reached quickly, and inverter air conditioners keep it constant at high levels of energy efficiency and reduced power consumption.

Leaving home mode

This mode allows you to keep the indoor temperature at a certain level when you are out of the room. Upon activation the air conditioner runs with minimal power, maintaining a certain temperature in order to provide a comfortable atmosphere when you get home.

Fan only

An air conditioner can also be used as a fan only. This function enables you to make the air in the room circulate.

Ultra quiet

Daikin indoor units are extremely quiet regardless of their operation mode. Activating this mode guarantees ultra quiet operation of the unit maintaining the achieved thermal comfort. High energy efficiency is maintained, and the noise level is so low that you and your neighbors will enjoy a quiet and peaceful environment.

Automatic switch from cooling to heating

It automatically selects cooling or heating mode in order to reach the set temperature.

Air filter

The air filter removes the specks of dust in the air, ensuring a constant flow of clean air in the room. This function is extremely important because it keeps the atmosphere in the climatized space healthy and fresh.

Air dry program

This program enables you to lower the humidity levels without changing the room temperature. You have the possibility to adjust the humidity level in the room according to your own preferences.

Fan revolution rates

This option provides you with the opportunity to adjust the airflow according to your own personal preferences. If you want to reach the desired room temperature quickly, you can set the fan to turn at a higher speed.

Weekly timer

The weekly timer allows you to set up to four working periods a day, seven days a week. Besides being convenient, the function helps to reduce running costs (weekly timer is available only on wired remote controllers).

Infrared remote controller (Optional)

Infrared remote controller with liquid crystal display facilitates the control of your air conditioner by providing you with the excellent possibility to turn the modes on, off and control them from a distance.

Wired remote controller (Optional)

The wired remote controller provides you with the opportunity to control the functions of the air conditioner from a distance. The smart interface of this controller will help you adjust your air conditioning system completely according to your requirements for thermal comfort.

Centralized control (Optional)

It allows for centralized control of several air conditioners from one central point. Thanks to this function you can turn several air conditioners on, off and control them simultaneously.

Automatic restart

The automatic restart function allows the air-conditioner to turn on with the last settings after a sudden outage and restoration of power supply.

Self-diagnosis

This function allows for the system to turn off automatically in case of detecting an unusual activity or error.

Drain pump kit

Thanks to the built-in drain pump, condensed water that accumulates during the cooling can be easily pumped out through a pipe. The built-in motors ensure quiet operation of the drain pumps and low power consumption.

Twin, triple and quad split

2, 3 or 4 indoor units can be connected to just one outdoor unit, even if they have different capacity. All indoor units work in the same mode (cooling or heating) and are controlled by the same remote control. This is applicable for single large spaces where a uniform distribution of the air and temperature is achieved.

Multi-split models application

This option enables you to connect a number of indoor units /up to 5/ to just one outdoor unit, thus creating a multi-split system. In this way, you can air condition several rooms with the help of one outdoor unit only and the installation of the indoor units can be carried out step by step. All indoor units can be controlled separately in the same operation mode.

Home use VRV

Up to 9 different indoor units can be connected to just one outdoor unit (even if they have different capacities up to class 71). All indoor units can be controlled separately, operating in the same mode.
