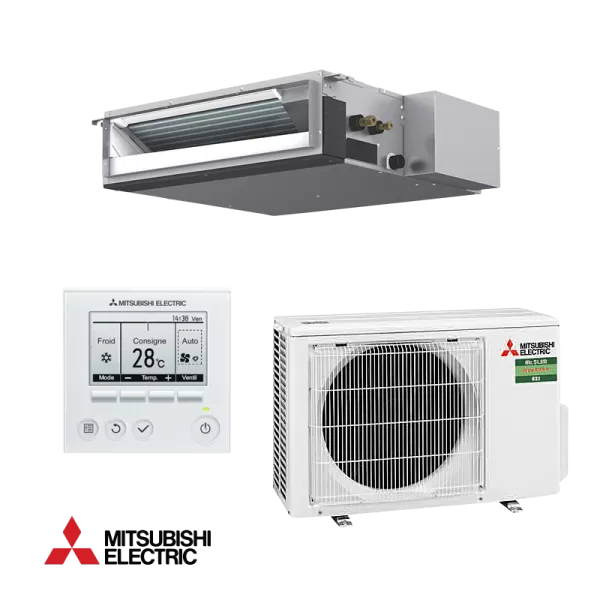

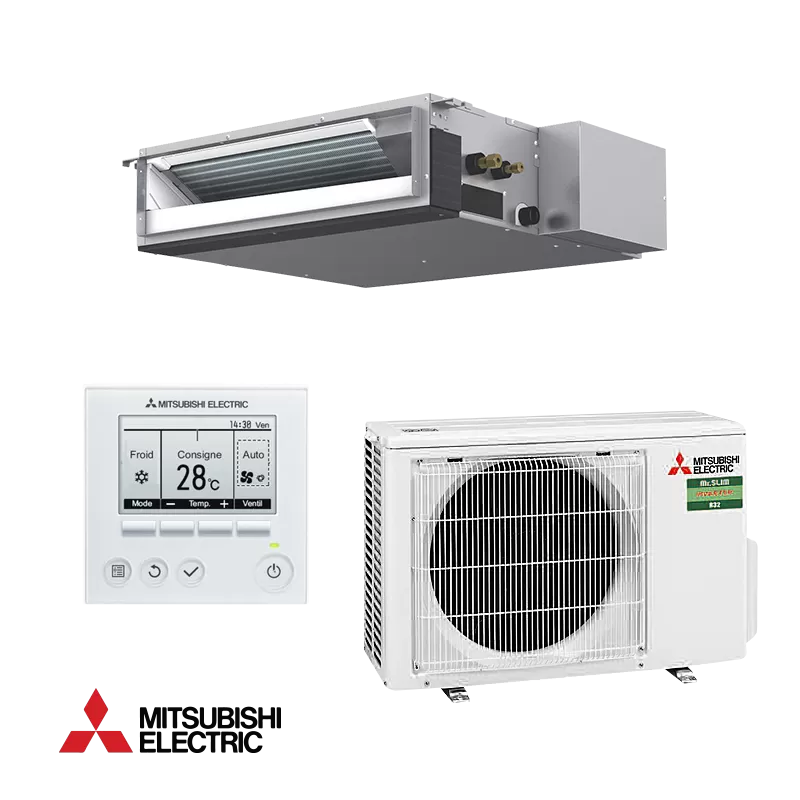

Duct Air conditioner Mitsubishi Electric SEZ-M35DA + SUZ-M35VA

Technical information

• Basic
• Cooling capacity (Min./Nom./Max):

  1.4 / 3.5 / 3.9 kW

• Heating capacity (Min./Nom./Max):

  1.7 / 4.2 / 5.0 kW

• Consumption power - cooling (Min./Nom./Max):

  - / 1.01 / - kW

• Consumption power - heating (Min./Nom./Max):

  - / 1.13 / - kW

• Capacity (BTU):

  12 000 BTU

• Seasonal efficiency SEER cooling:

  5.7

• SCOP:

  4

• Annual energy consumption (Cooling/Heating):

  210 / 979 kWh

• Energy label (Cooling / Heating) - Average climate:

  А+ / А+

• Operation Range (Cooling):

  -10 ~ 46 °C

• Operation Range (Heating):

  -10 ~ 24 °C

• Suitable for rooms up to:

  26 square meters

• Warranty:

  36 months

• Refrigerant:

  R-410A

• Power supply (Phase/Frequency/Voltage):

  1~/50/220-240

• Indoor unit
• Dimensions:

  200 x 990 x 700 H x W x L (mm)

• Weight:

  21 kg

• Sound Pressure - cooling (High/Nom./Low/Silent):

  33 / 28 / 23 / - dB (A)

• Sound Pressure - heating (High/Nom./Low/Silent):

  33 / 28 / 23 / - dB (A)

• Outdoor unit
• Compressor type:

  Mitsubishi

• Dimensions:

  550 x 800 x 285 H x W x L (mm)

• Weight:

  35 kg

• Refrigerant piping - Liquid / Gas:

  6.35 / 9.52 mm (1/4" / 3/8") mm / inch

• Sound Pressure - cooling (High/Nom./Low/Silent):

  49 / - / - / - dB (A)

• Sound Pressure - heating (High/Nom./Low/Silent):

  50 / - / - / - dB (A)

• Shipping package - MITSUBISHI SEZ-M35DA DUCT
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  23 x 110 x 73; Weight: 25 kg.;

• Shipping package - MITSUBISHI SUZ-M35VA OUTDOOR
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  60 x 82 x 30; Weight: 40 kg.;
