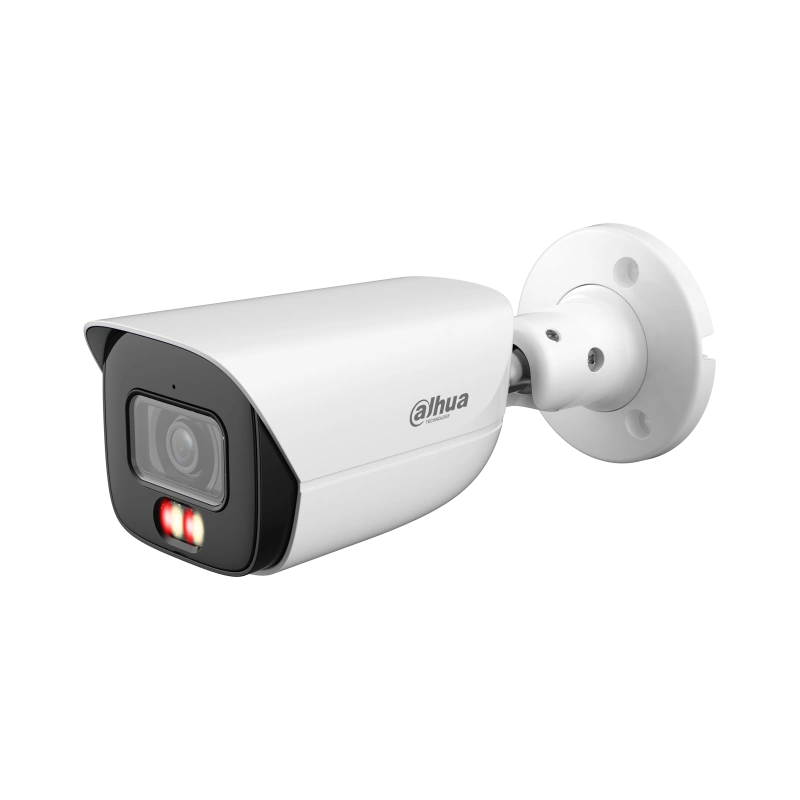

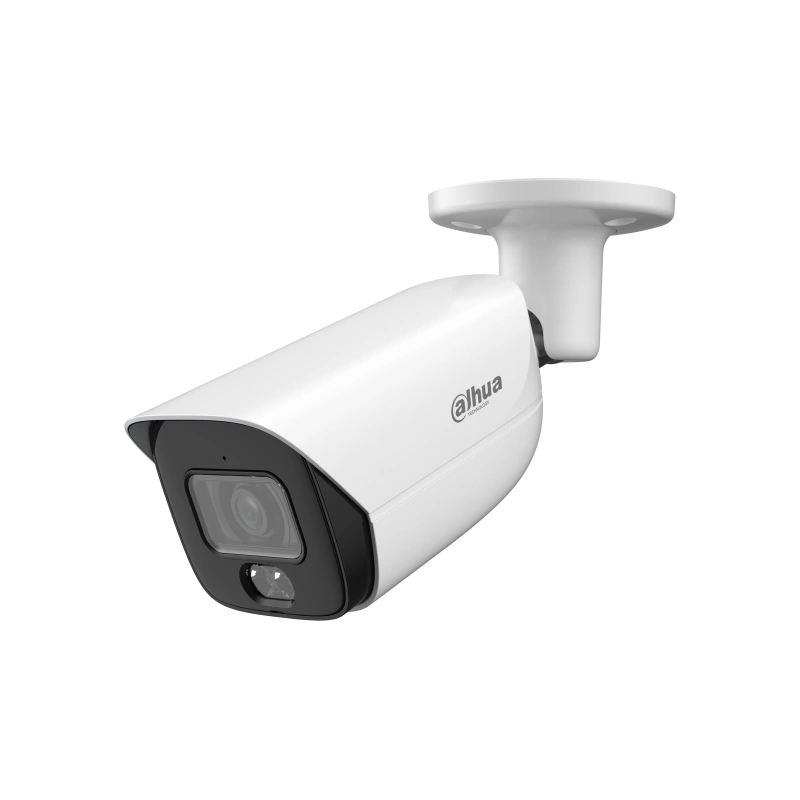

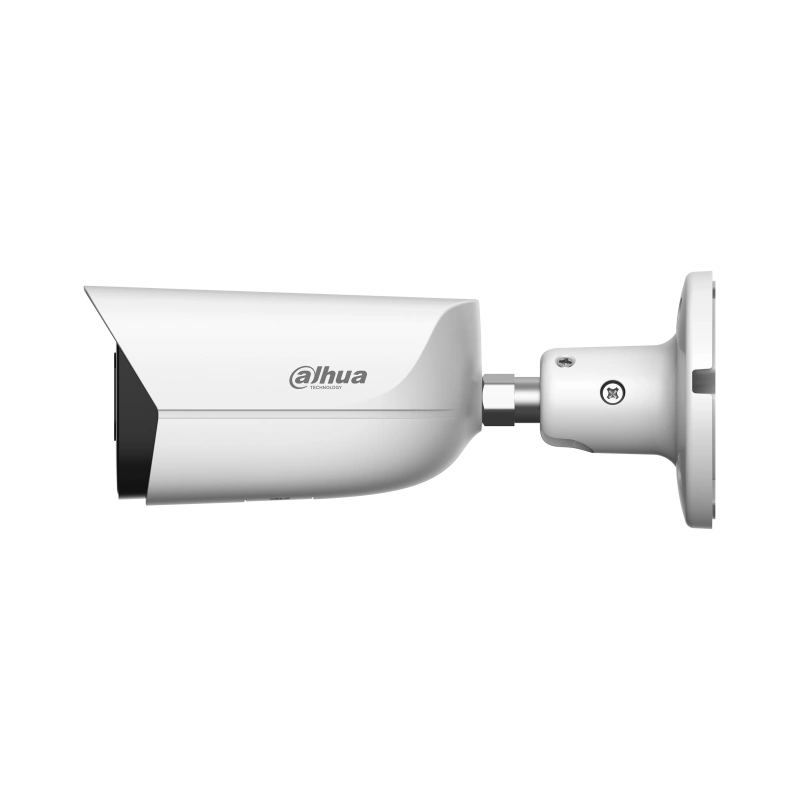

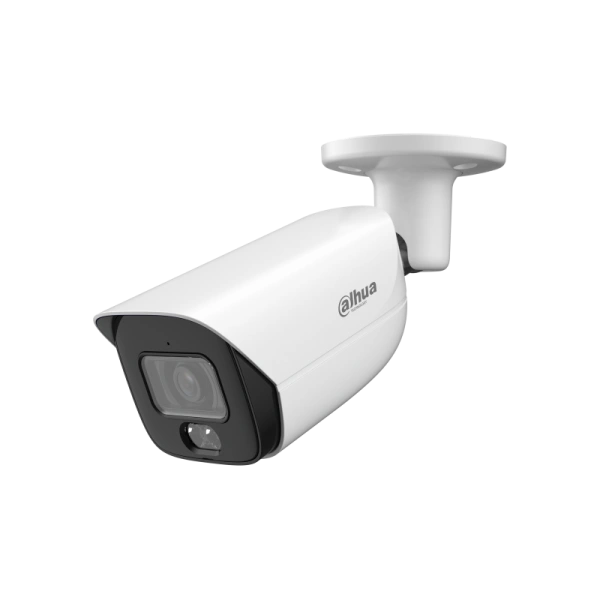

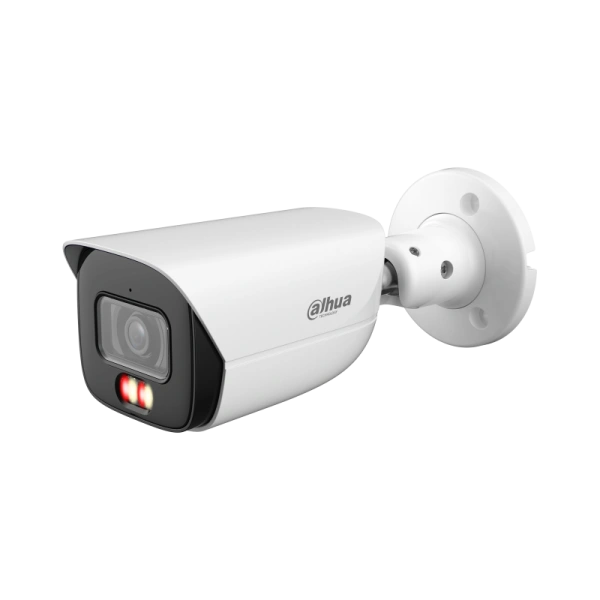

Dahua IPC-HFW5559E-ASE-IL-0280B 5MP Smart Dual Light Fixed-focal Bullet WizMind Network Camera

Technical information

• General
• Case Type:

  Bullet

• Series:

  WizMind

• Color:

  White

• Image Sensor:

  1/2.7” 5 Megapixel Progressive CMOS

• RAM/ROM:

  2 GB/4 GB

• Resolution:

  5M (2960 × 1668)

• Resolution_surveillance:

  5 Mp

• Scanning System:

  Progressive

• Electronic Shutter Speed:

  Auto/Manual 1/3 s–1/100000 s

• Minimum Illumination:

  0.0009 lux@F1.6 (Color, 30 IRE) 0.0005 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on)

• Day/Night:

  Auto (ICR)/Color/B/W

• IR backlight to:

  50 meters

• IR On/Off Control:

  Auto / Manual

• IR LEDs:

  2

• Fill Light (White Light) Distance:

  50 m

• Fill Light On/Off Control:

  Auto / Manual

• Fill Light Number:

  2

• Storage:

  FTP; SFTP; Micro SD card (1TB); NAS

• Camera
• IRE:

  30, 0Lux IR on

• S/N Ratio:

  > 56dB

• Pan/Tilt/Rotation:

  0°–360° (pan); 0°–90° (tilt); 0°–360° (rotation)

• Lens
• Lens type:

  Fixed

• Focal Length:

  2.8 mm

• Mount Type:

  M12

• Max Aperture:

  F1.6

• Angle of View:

  108.4° (H)

• Iris Type:

  Fixed aperture

• Close Focus Distance:

  1 m

• Video
• Frame Rate:

  Main stream: 2960×1668@(1 fps–25/30 fps) Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps) Third stream: 1920 × 1080@(1 fps–25/30 fps) Fourth stream: 1280 × 720@(1 fps–25/30 fps)

• Video Compression:

  H.265; H.264; H.264H; H.264B; MJPEG (only supported by sub stream)

• Smart Codec:

  AI H.265; AI H.264 , Smart H.265+/ Smart H.264+

• Streaming Capability:

  4 streams

• Bandwidth:

  80 Mbps incoming bandwidth

• Bit Rate:

  H.264: 3 kbps–16384 kbps H.265: 3 kbps–16384 kbps

• Bit Rate Control:

  CBR/VBR

• BLC:

  BLC / HLC / WDR / SSA

• WDR:

  120dB

• Scene Self-adaptation:

  Yes

• White Balance:

  Auto/natural/street lamp/outdoor/manual/regional custom

• Gain Control:

  Auto / Manual

• Noise Reduction:

  3D NR

• Smart light:

  Yes

• Flip:

  0°/90°/180°/270° (Supports 90°/270° with 2688 ×1520 resolution and lower.)

• Mirror:

  Yes

• Privacy Masking:

  4 mosaics + 8 color blocks

• Region of Interest:

  Yes

• Electronic Defog:

  Yes

• Perimeter Protection
• AI Functions:

  Perimeter protection , Intrusion , Tripwire , ROI (Region of interest) , Privacy masking , Defog , SMD Plus (detection of vehicle/human) , AcuPick , Smart Dual Illuminators , Face detection , People counting , Heat map , Metadata , Parking spots detection

• Face Recognition
• Metadata
• Artificial Intelligence
• Motion Detection:

  Yes

• IVS / Intelligent Video Surveillance :

  Tripwire, Intrusion

• Smart Motion Detection Technology:

  Yes

• Alarm Prompt:

  No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception

• Certification
• Certifications:

  CE-LVD: EN 62368-1; CE-EMC: Electromagnetc Compatbility Directve 2014/30/EU

• Port
• Audio Input:

  1-channel (RCA port)

• Audio Output:

  1-channel (RCA port)

• Alarm Input:

  1 channel in: wet contact, 5 mA 3–5 VDC

• Alarm Output:

  1 channel out: wet contact, 300 mA 12 VDC

• Audio Compression:

  G.711a; G.711Mu; PCM; G.726; G.723

• Built-in Microphone:

  Yes

• SD card:

  Yes

• SD card capacity:

  Micro SD up to 1 TB

• Network
• Ethernet:

  1 RJ-45 Ports (10/100 Mbps)

• Mobile App:

  Android, iOS

• Network Function:

  IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration

• Interoperability:

  ONVIF (Profile S & Profile G & Profile T & Profile M); CGI

• Max. User Access:

  20

• Web Viewer:

  Chrome; IE11; Firefox

• Management Software:

  DSS; DMSS; DoLynk Care

• Power
• Power Supply:

  12 VDC (±30%); PoE+ (802.3at); ePoE

• Power Consumption:

  Max 13.3 W (12 VDC); 15.6 W (PoE)

• Environment
• Operating Temperature:

  - 40°C to + 60°C

• Operating RH:

  < 95% RH (non-condensation)

• Storage Temperature:

  - 40°C to + 60°C

• Protection:

  IP67

• Construction
• Casing:

  Metal

• Dimensions:

  192.7 mm x 70.5 mm x 66.4 mm

• Net Weight:

  0.61 kg

• Gross Weight:

  0.77 kg

• Shipping package - DAHUA IPC-HFW5559E-ASE-IL-0280B
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  6.64 x 7.05 x 19.27; Weight: 0.77 kg.;
