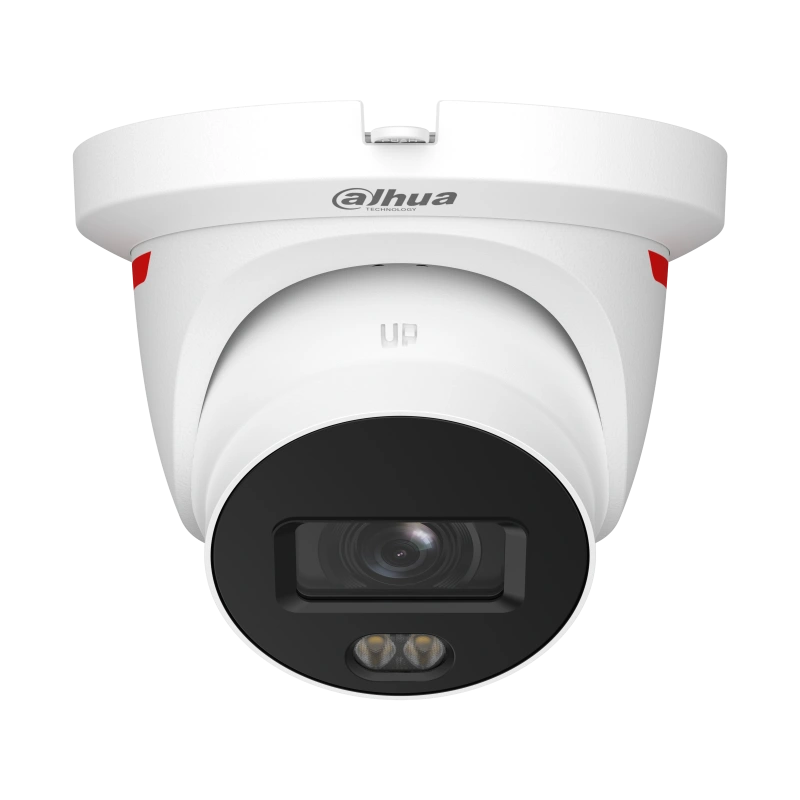

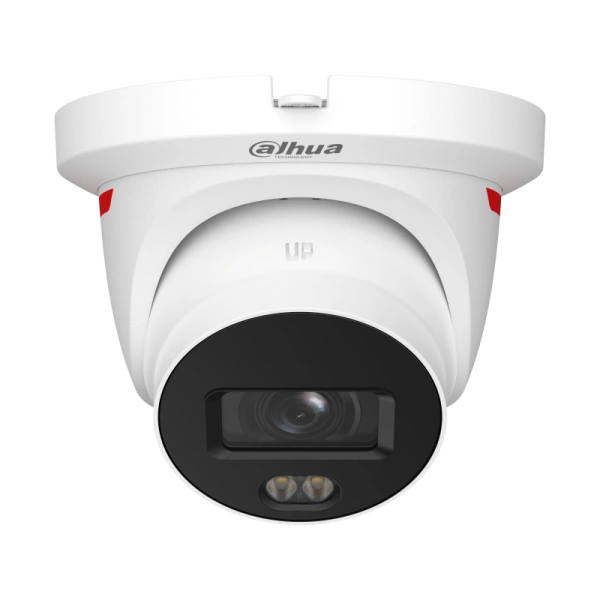

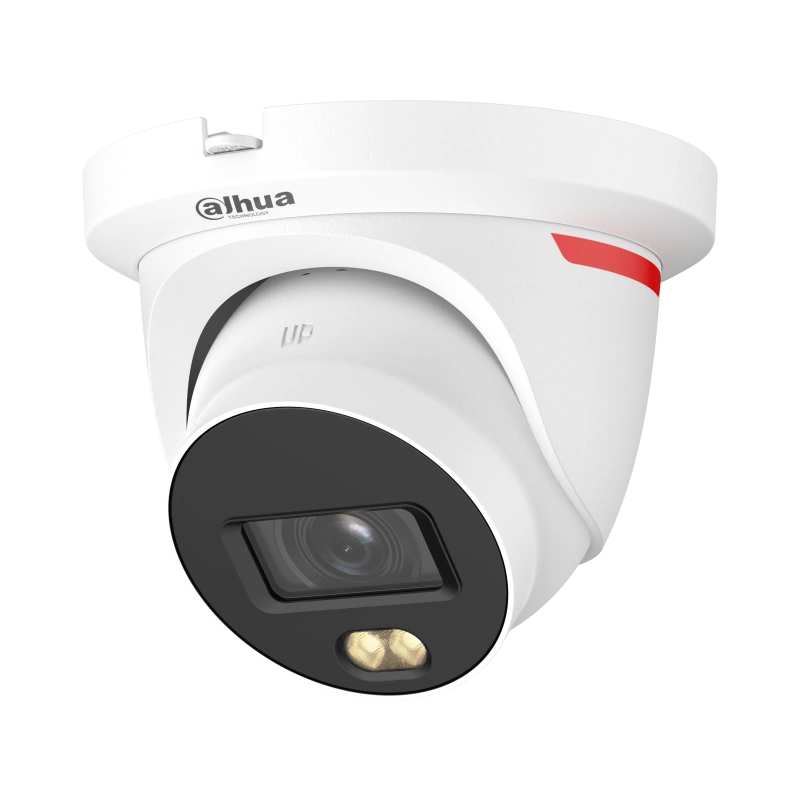

Dahua IPC-HDW2249TH-S-LED-0280B-PROX 2MP WizColor X Fixed-focal Eyeball WizSense Network Camera

Technical information

• General
• Case Type:

  Eyeball

• Series:

  WizSense

• Color:

  White

• Image Sensor:

  1/1.8” 2 Megapixel Progressive CMOS

• Resolution:

  1080p (1920 × 1080)

• Resolution_surveillance:

  2 Mp

• Scanning System:

  Progressive

• Electronic Shutter Speed:

  Auto/Manual 1/3 s–1/100000 s

• Minimum Illumination:

  0.00003 lux@F0.8

• Day/Night:

  Color/B/W

• Fill Light (White Light) Distance:

  20 m

• Fill Light On/Off Control:

  Auto / Manual

• Fill Light Number:

  2

• Storage:

  FTP; SFTP; Micro SD card (512 GB)

• Camera
• S/N Ratio:

  > 56dB

• Pan/Tilt/Rotation:

  0° - 360° (pan), 0° - 78° (tilt), 0°- 360° (rotation)

• Lens
• Lens type:

  Fixed

• Focal Length:

  2.8 mm

• Mount Type:

  M18

• Max Aperture:

  F0.8

• Angle of View:

  110° (H)

• Focus Control:

  Fixed

• Close Focus Distance:

  1.3 m

• Video
• Frame Rate:

  Main stream: 1920 × 1080@(1–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) Third stream: 352 × 288@1 fps/352 × 240@1 fps

• Video Compression:

  H.265; H.264; H.264H; H.264B; MJPEG (only supported by sub stream)

• Smart Codec:

  AI H.265; AI H.264 , Smart H.265+/ Smart H.264+

• Streaming Capability:

  3 streams

• Bandwidth:

  36 Mbps incoming bandwidth

• Bit Rate:

  H.264: 32 kbps–6144 kbps; H.265: 12 kbps–6144 kbps

• Bit Rate Control:

  CBR/VBR

• BLC:

  BLC / HLC / WDR

• WDR:

  120dB

• White Balance:

  Auto/natural/street lamp/outdoor/manual/regional custom

• Gain Control:

  Auto / Manual

• Noise Reduction:

  3D NR

• Smart light:

  Yes

• Flip:

  0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution and lower.)

• Mirror:

  Yes

• Privacy Masking:

  4 areas

• Region of Interest:

  Yes

• Lowlight performance technology:

  WizColor

• Perimeter Protection
• AI Functions:

  ROI (Region of interest) , Privacy masking , SMD Plus (detection of vehicle/human) , Perimeter protection , Tripwire , Intrusion

• Face Recognition
• Metadata
• Artificial Intelligence
• Motion Detection:

  Yes

• IVS / Intelligent Video Surveillance :

  Tripwire, Intrusion

• Smart Motion Detection Technology:

  Yes

• Alarm Prompt:

  No SD card; SD card full; SD card error; network disconnection; IP conflict; invalid access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception

• Certification
• Certifications:

  CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

• Port
• Audio Compression:

  G.711a; G.711Mu; PCM; G.726

• Built-in Microphone:

  Yes

• SD card:

  Yes

• SD card capacity:

  Micro SD up to 512GB

• Network
• Ethernet:

  1 RJ-45 Ports (10/100 Mbps)

• Mobile App:

  Android, iOS

• Network Function:

  IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; NFS; P2P; Auto Registration

• Interoperability:

  ONVIF (Profile S & Profile G & Profile T); CGI

• Max. User Access:

  6

• Web Viewer:

  Chrome; IE9 or later; Firefox

• Management Software:

  Smart PSS Lite; DSS; DMSS; DoLynk Care

• Compatible accessories:

  PFA13F-E, G3416GW, PFA156, PFB220C

• Power
• Power Supply:

  12 VDC (±30%); PoE (802.3af)

• Power Consumption:

  Max 2.9 W (12 VDC); 3.7 W (PoE)

• Environment
• Operating Temperature:

  - 40°C to + 60°C

• Operating RH:

  < 95% RH (non-condensation)

• Storage Temperature:

  - 40°C to + 60°C

• Protection:

  IP67

• Construction
• Casing:

  Metal+Plastic

• Dimensions:

  Φ135 mm x 111.7 mm

• Net Weight:

  0.58 kg

• Gross Weight:

  0.84 kg

• Shipping package - DAHUA IPC-HDW2249TH-S-LED-0280B-PROX
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  13.8 x 16.5 x 16.5; Weight: 0.84 kg.;
