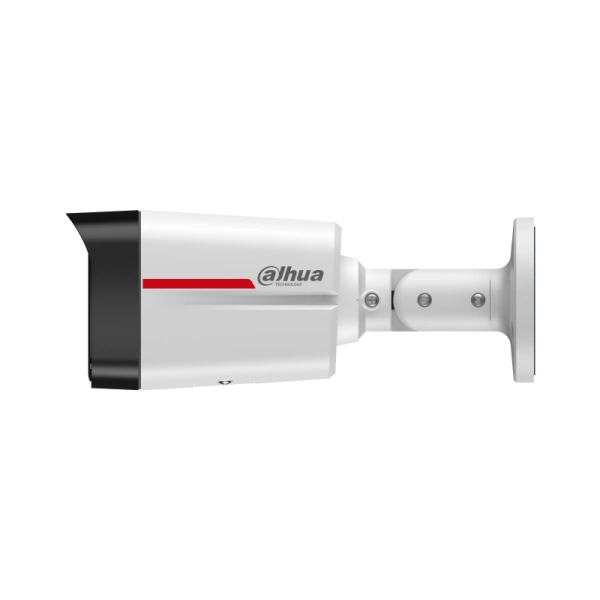

Dahua IPC-HFW2649TL-S-LED-0360B-PRO 6MP WizColor Fixed-focal Bullet WizSense Network Camera

Technical information

• General
• Case Type:

  Bullet

• Series:

  WizSense

• Color:

  White

• Image Sensor:

  1/1.8” 6 Megapixel Progressive CMOS

• RAM/ROM:

  256 MB/128 MB

• Resolution:

  6M (3288 × 1850)

• Resolution_surveillance:

  6 Mp

• Scanning System:

  Progressive

• Electronic Shutter Speed:

  Auto/Manual 1/3 s–1/100000 s

• Minimum Illumination:

  0.0002 lux@F1.0

• Day/Night:

  Color/B/W

• Fill Light (White Light) Distance:

  50 m

• Fill Light On/Off Control:

  Auto / Manual

• Fill Light Number:

  4

• Storage:

  FTP; Micro SD card (support max. 256 G); NAS; SFTP

• Camera
• S/N Ratio:

  > 56dB

• Pan/Tilt/Rotation:

  0°–360° (pan); 0°–90° (tilt); 0°–360° (rotation)

• Lens
• Lens type:

  Fixed

• Focal Length:

  3.6 mm

• Mount Type:

  M16

• Max Aperture:

  F1.0

• Angle of View:

  78° (H)

• Iris Type:

  Fixed aperture

• Close Focus Distance:

  4 m

• Video
• Frame Rate:

  Main stream: 3288 × 1850@(1–20 fps)/2688 × 1520@(1–25/30 fps) sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)

• Video Compression:

  H.265; H.264; H.264H; H.264B; MJPEG (only supported by sub stream)

• Smart Codec:

  Smart H.265+/ Smart H.264+

• Streaming Capability:

  2 streams

• Bandwidth:

  48 Mbps incoming bandwidth

• Bit Rate:

  H.264: 32 kbps–8192 kbps; H.265: 12 kbps–8192 kbps

• Bit Rate Control:

  CBR/VBR

• BLC:

  BLC / HLC / WDR

• WDR:

  120dB

• White Balance:

  Auto/natural/street lamp/outdoor/manual/regional custom

• Gain Control:

  Auto / Manual

• Noise Reduction:

  3D NR

• Smart light:

  Yes

• Flip:

  0°/90°/180°/270° (Supports 90°/270° with 2688 ×1520 resolution and lower.)

• Mirror:

  Yes

• Privacy Masking:

  4 areas

• Region of Interest:

  Yes

• Lowlight performance technology:

  WizColor

• Perimeter Protection
• AI Functions:

  Privacy masking , ROI (Region of interest) , Tripwire , Intrusion , Perimeter protection , SMD Plus (detection of vehicle/human)

• Face Recognition
• Metadata
• Artificial Intelligence
• Motion Detection:

  Yes

• IVS / Intelligent Video Surveillance :

  Tripwire, Intrusion

• Smart Motion Detection Technology:

  Yes

• Alarm Prompt:

  No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception

• Certification
• Certifications:

  CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

• Port
• Audio Compression:

  G.711a; G.711Mu; PCM; G.726

• Built-in Microphone:

  Yes

• SD card:

  Yes

• SD card capacity:

  Micro SD up to 256 GB

• Network
• Ethernet:

  1 RJ-45 Ports (10/100 Mbps)

• Mobile App:

  Android, iOS

• Network Function:

  IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; P2P; Bonjour; Auto Registration

• Interoperability:

  ONVIF (Profile S & Profile G & Profile T); CGI

• Max. User Access:

  20

• Web Viewer:

  Chrome; IE9 or later; Firefox

• Management Software:

  Smart PSS Lite; DSS; DMSS

• Compatible accessories:

  G3416GW, PFA130-E, PFA134, PFA151

• Power
• Power Supply:

  12 VDC (±30%); PoE (802.3af)

• Power Consumption:

  Max 6.1 W (12 VDC); 7.4 W (PoE)

• Environment
• Operating Temperature:

  - 40°C to + 60°C

• Operating RH:

  < 95% RH (non-condensation)

• Storage Temperature:

  - 40°C to + 60°C

• Protection:

  IP67

• Construction
• Casing:

  Metal

• Dimensions:

  197.9 mm × 80.2 mm × 76.2 mm

• Net Weight:

  0.57 kg

• Gross Weight:

  0.72 kg

• Shipping package - DAHUA IPC-HFW2649TL-S-LED-0360B-PRO
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  11.1 x 11.5 x 24; Weight: 0.71 kg.;
