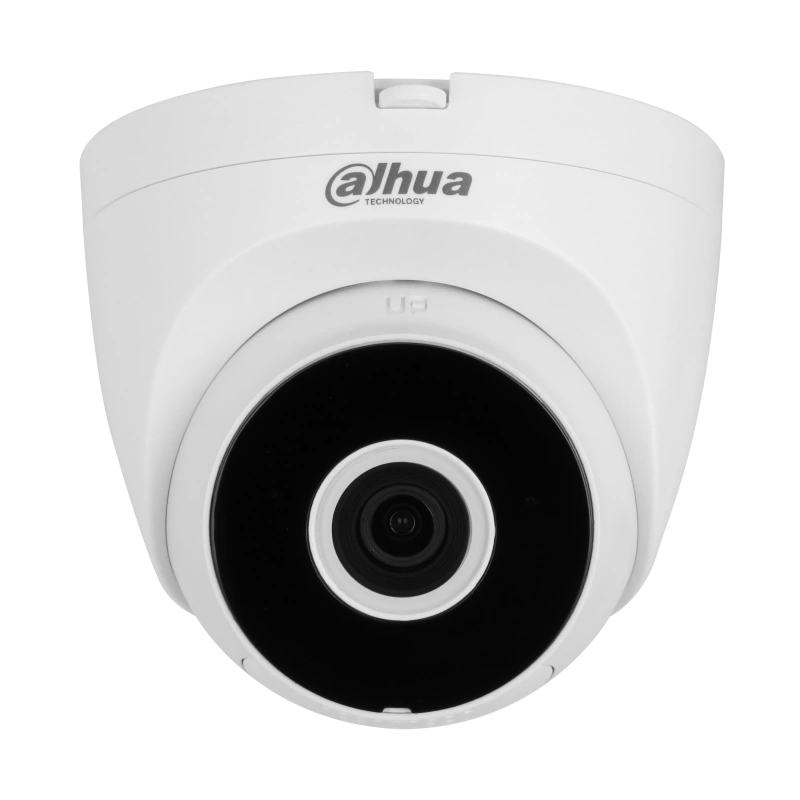

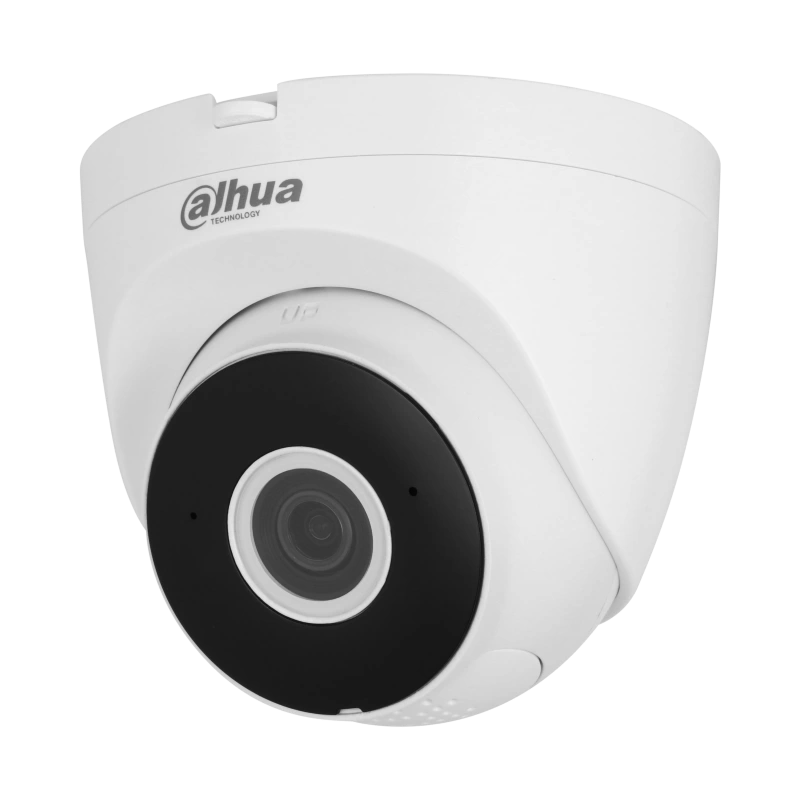

Dahua IPC-HDW1430DT-STW-0280B 4 MP IR Fixed-focal WiFi Eyeball Network Camera

Technical information

• General
• Case Type:

  Eyeball

• Series:

  Wireless

• Color:

  White

• Image Sensor:

  1/3” 4 Megapixel progressive CMOS

• RAM/ROM:

  64 MB/16 MB

• Resolution:

  4M (2560 × 1440)

• Resolution_surveillance:

  4 Mp

• Scanning System:

  Progressive

• Electronic Shutter Speed:

  Auto/Manual 1/3 s–1/100000 s

• Minimum Illumination:

  0.03 Lux@F2.0 (Color, 30 IRE) 0.003 Lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on)

• Day/Night:

  Auto (ICR)/Color/B/W

• IR backlight to:

  30 meters

• IR On/Off Control:

  Auto / Manual

• IR LEDs:

  1

• Storage:

  Micro SD card (256 G)

• Camera
• IRE:

  30, 0Lux IR on

• S/N Ratio:

  > 56dB

• Pan/Tilt/Rotation:

  0°-360°(pan); 0°-78°(tilt); 0°-360°(rotation)

• Lens
• Lens type:

  Fixed

• Focal Length:

  2.8 mm

• Mount Type:

  M12

• Max Aperture:

  F2.0

• Angle of View:

  90° (H)

• Focus Control:

  Fixed

• Close Focus Distance:

  1 m

• Video
• Frame Rate:

  Main stream: 2560 × 1440 (1–20 fps) Sub stream: 640 × 480@(1–25 fps) 640 × 480@(1–30 fps)

• Video Compression:

  H.264B; H.264; H.264H; H.265

• Smart Codec:

  Smart H.265+/ Smart H.264+

• Streaming Capability:

  2 streams

• Bandwidth:

  36 Mbps incoming bandwidth

• Bit Rate:

  H264: 24 kbps–4096 kbps H265: 9 kbps–4096 kbps

• Bit Rate Control:

  CBR/VBR

• BLC:

  BLC / DWDR

• WDR:

  DWDR

• White Balance:

  Auto/natural/street lamp/outdoor/manual/regional custom

• Gain Control:

  Auto

• Noise Reduction:

  3D NR

• Smart light:

  Yes

• Flip:

  0° / 180°

• Mirror:

  Yes

• Perimeter Protection
• Face Recognition
• Metadata
• Artificial Intelligence
• Alarm Prompt:

  No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; intensity change

• Certification
• Certifications:

  CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; CE-RED: Radio Equipment Directive 2014/53/EU; FCC: 47 CFR FCC Part 15, Subpart B; FCC ID: FCC PART 15C

• Port
• Audio Compression:

  G.711a; G.711Mu

• Built-in Microphone:

  Yes

• Built-in Speaker:

  Yes

• SD card:

  Yes

• SD card capacity:

  Micro SD up to 256 GB

• Network
• Wi-Fi:

  IEEE802.11b/g/n 2.4–2.4835 GHz; 2.4 G

• Ethernet:

  1 RJ-45 Ports (10/100 Mbps)

• Mobile App:

  Android, iOS

• Network Function:

  IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast; RTMP

• Interoperability:

  ONVIF (Profile S/Profile T); CGI; P2P

• Max. User Access:

  6

• Web Viewer:

  Chrome; IE9 or later; Firefox

• Management Software:

  Smart PSS, DSS, DMSS

• Compatible accessories:

  PFA13G, PFA109, PFA152-E, PFB220C

• Power
• Power Supply:

  12V DC

• Power Consumption:

  Max 6.1 W (12 VDC)

• Environment
• Operating Temperature:

  - 30°C to + 60°C

• Operating RH:

  < 95% RH

• Storage Temperature:

  - 30°C to + 60°C

• Protection:

  IP67

• Construction
• Casing:

  Metal+Plastic

• Dimensions:

  Φ109.9 mm × 102.2 mm

• Net Weight:

  0.352 kg

• Gross Weight:

  0.53 kg

• Shipping package - DAHUA IPC-HDW1430DT-SAW-0280B
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  11 x 12 x 12; Weight: 0.53 kg.;
