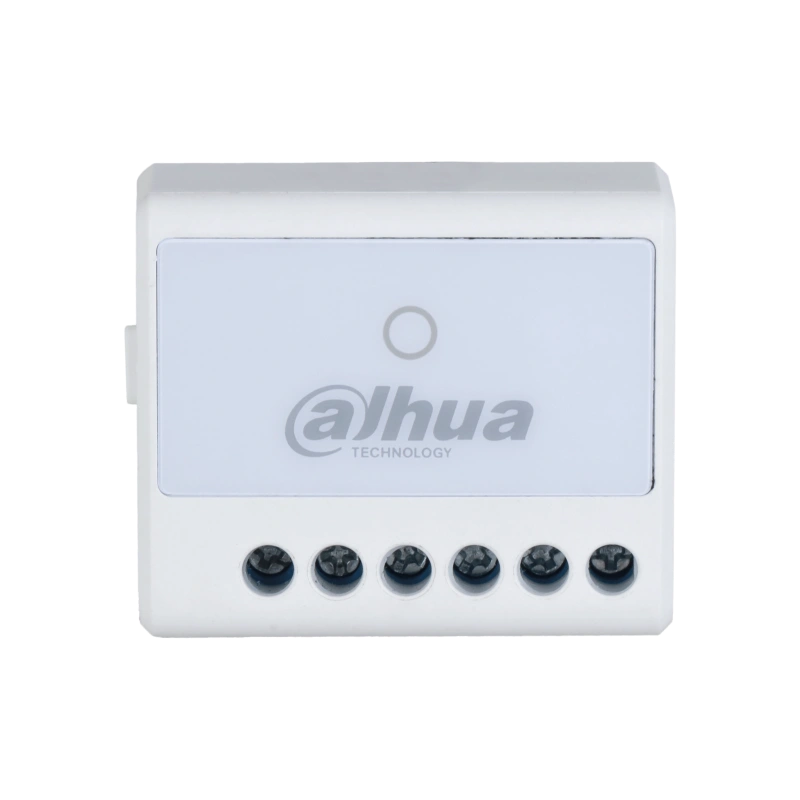

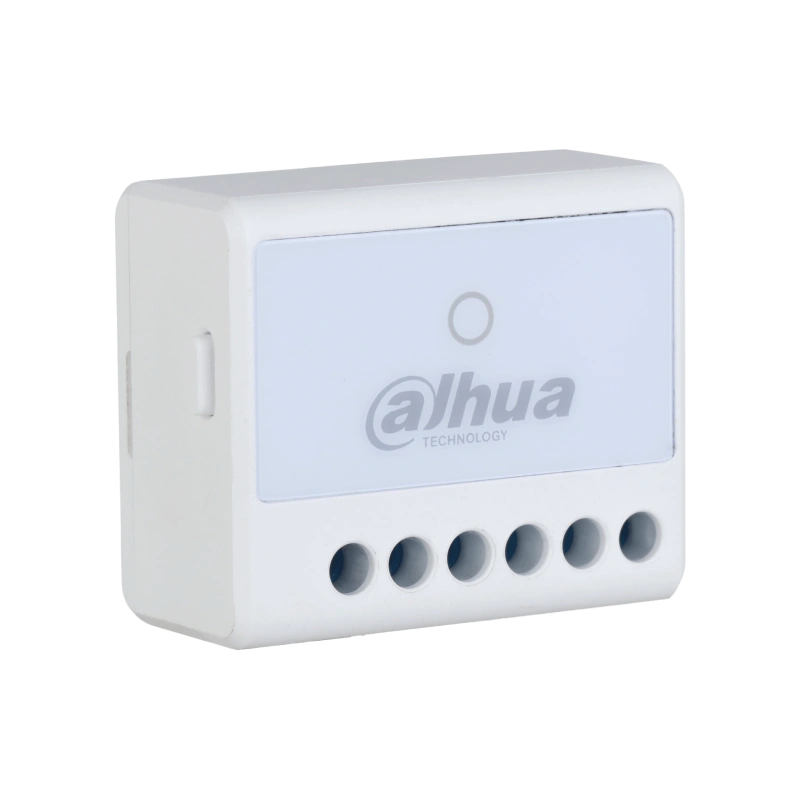

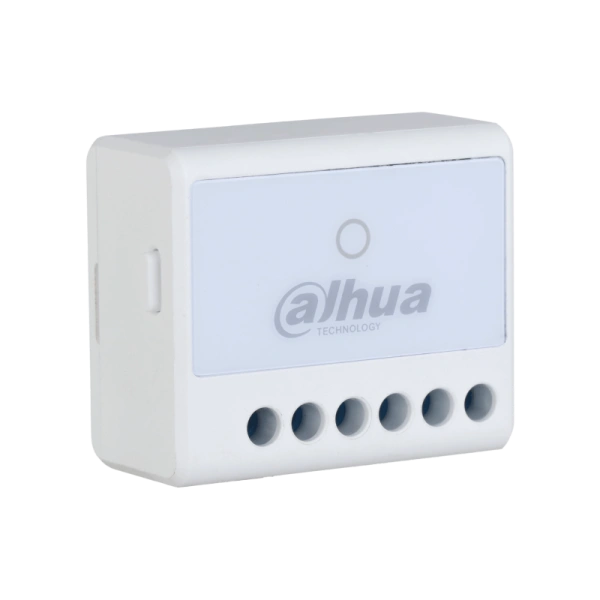

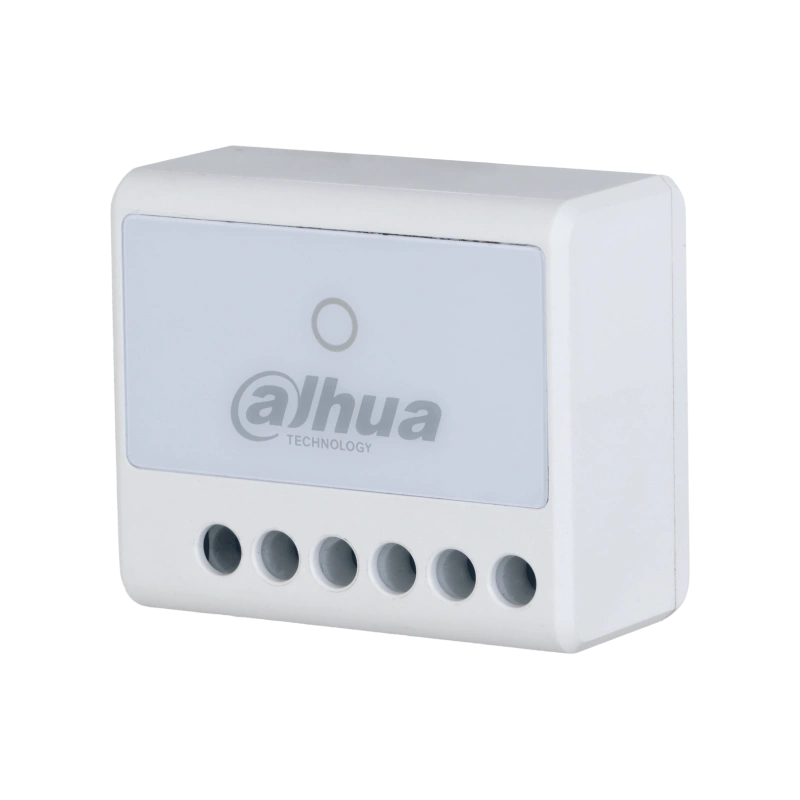

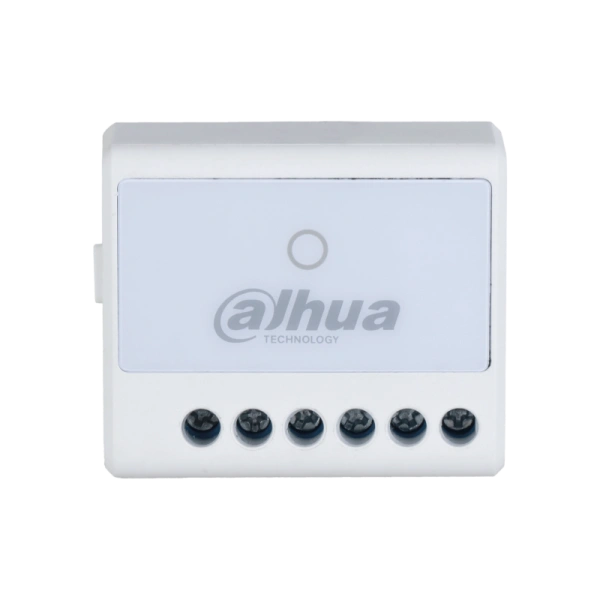

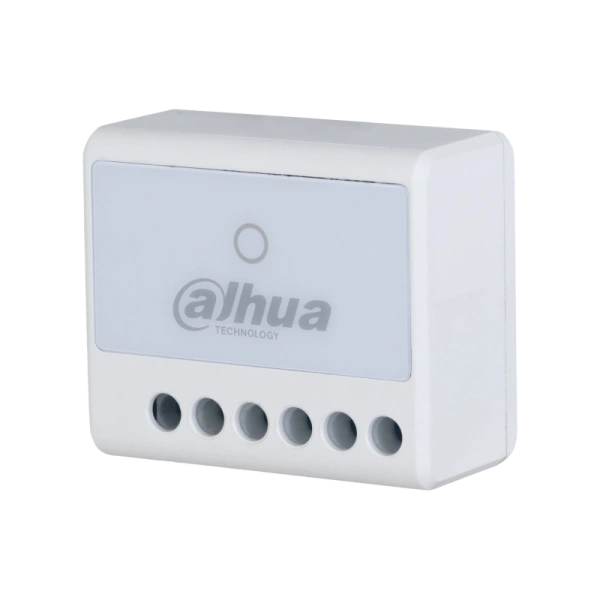

Dahua ARM7011-W2(868) Wireless Relay

Technical information

• General
• Type:

  Relays

• Input / Output
• Video
• Ports
• Indicator Light:

  1 for multiple statuses

• Button:

  1

• Function
• Remote Upgrade:

  Cloud update

• Remote set up:

  Yes

• Mobile Apps:

  Yes

• Test Mode:

  Yes

• Wireless
• Carrier Frequency:

  868.0 MHz–868.6 MHz

• Communication Distance:

  Up to 1200 m in an open space

• Communication Mechanism:

  Two-way

• Encryption Mode:

  AES128

• Frequency Hopping:

  Yes

• Technical
• Power Supply:

  7 - 24V DC

• Operating Temperature:

  –10 °C to +55 °C

• Operating Humidity:

  10%–90% (RH)

• Product Dimensions:

  39 mm × 33 mm × 19 mm

• Installation:

  Wall mount

• Net Weight:

  0.045 kg

• Gross Weight:

  0.06 kg

• Certifications:

  CE

• Casing:

  PC + ABS

• Specification
• Alarm input:

  1 for tamper, NO/NC

• Relay Output:

  1, NO/NC (0–36 VDC, Max 5A)

• Temperature
• Alarm
• Peripherals
• Shipping package - DAHUA WIRELESS RELAY ARM7011-W2(868)
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  3.05 x 5.95 x 9.5; Weight: 0.06 kg.;
