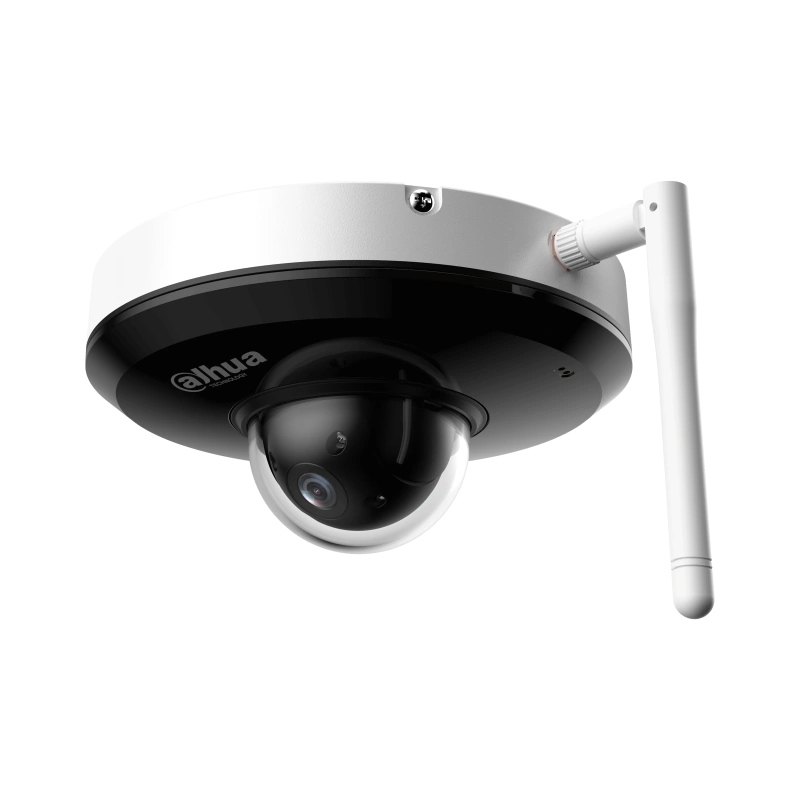

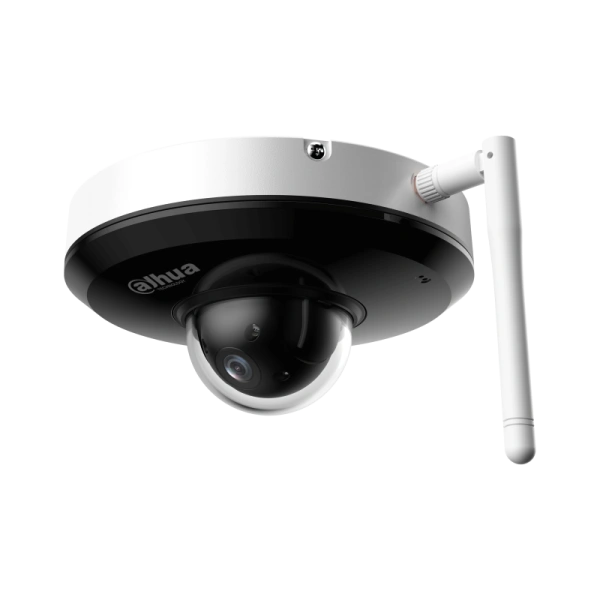

Wireless security camera Dahua SD1A404DB-GNY-W 4MP 4x Starlight IR WizSense Network PTZ Camera

Technical information

• General
• Series:

  PT

• Color:

  White

• Image Sensor:

  1/2.8” 4 Megapixel Progressive CMOS

• RAM/ROM:

  512 MB/256 MB

• Resolution:

  4M (2560 × 1440)

• Resolution_surveillance:

  4 Mp

• Scanning System:

  Progressive

• Electronic Shutter Speed:

  1s–1/30,000s

• Minimum Illumination:

  0.005 lux@F1.8 (Color, 30 IRE); 0.0005 lux@F1.8 (B/W, 30 IRE); 0 lux (illuminator on)

• Day/Night:

  Auto (ICR)/Color/B/W

• IR backlight to:

  20 meters

• IR On/Off Control:

  Manual/SmartIR/Off

• IR LEDs:

  3

• Storage:

  FTP; SFTP; Micro SD card (512 GB); NAS

• Camera
• IRE:

  30, 0Lux IR on

• S/N Ratio:

  > 55dB

• Pan/Tilt/Rotation:

  0° - 355° (pan) and 5° - 90° (tilt)

• Manual Control Speed:

  0.1° ~70° /s (pan); 0.1° ~30° /s (tilt)

• Preset Speed:

  0.1° ~80° /s (pan); 0.1° ~40° /s (tilt)

• Presets:

  300

• PTZ / PT:

  Yes

• PTZ mode:

  8 Tour

• Power up Action:

  Yes

• Idle Motion:

  Preset/Tour

• Protocol:

  DH-SD

• Lens
• Lens type:

  Varifocal

• Focal Length:

  2.8 mm to 12 mm

• Zoom:

  4 x optical; 16x digital

• Max Aperture:

  F1.8 ~ F2.7

• Angle of View:

  96.9° - 31.6°(H)

• Iris Type:

  Fixed aperture

• Focus Control:

  Auto/Semi-Auto/Manual

• Close Focus Distance:

  0.2 m – 0.5 m

• Video
• Frame Rate:

  Main stream: 4M/3M/1080P/1.3M/720P @(1-25/30 fps) Sub stream 1: D1/VGA/CIF @(1-25/30 fps) Sub stream 2: 720P@ (1-25/30 fps)

• Video Compression:

  H.264H; H.264B; H.264; H.265; MJPEG (Sub Stream)

• Smart Codec:

  Smart H.265+/ Smart H.264+

• Streaming Capability:

  3 streams

• Bandwidth:

  64 Mbps incoming bandwidth

• Bit Rate:

  H264: 96 Kbps–14,848 Kbps H265: 38 Kbps–8,960 Kbps

• Bit Rate Control:

  CBR/VBR

• BLC:

  BLC / HLC / WDR

• WDR:

  120dB

• White Balance:

  Auto/Indoor/Outdoor/Track/Manual/Sodium lamp/Natural light/Street lamp

• Gain Control:

  Auto / Manual / Gain Prio

• Noise Reduction:

  2D NR/3D NR

• Flip:

  180°

• Privacy Masking:

  Up to 24 areas

• Region of Interest:

  Yes

• Electronic Image Stabilization (EIS):

  Yes

• Electronic Defog:

  Yes

• Lowlight performance technology:

  Starlight

• Perimeter Protection
• AI Functions:

  ROI (Region of interest) , Privacy masking , EIS (Electronic image stabilization) , Defog , Tripwire , Intrusion , Perimeter protection , Abandoned/missing object , Parking spots detection , Face detection , People counting , SMD Plus (detection of vehicle/human)

• Face Recognition
• Metadata
• Artificial Intelligence
• Motion Detection:

  Yes

• IVS / Intelligent Video Surveillance :

  Tripwire; Intrusion; Abandoned/Missing objects

• Smart Motion Detection Technology:

  Yes

• Alarm Prompt:

  Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection

• Certification
• Certifications:

  CE-EMC: EN 55032; EN 61000-3-3; EN 61000-3-2; EN 50130-4; EN 55035 CE-LVD: EN 62368-1 CE-RED:EN301489; EN300328; EN IEC 62311

• Port
• Audio Input:

  1 (LINE IN; bare wire)

• Audio Output:

  1 (LINE OUT; bare wire)

• Audio Compression:

  PCM; G.711A; G.711MU; G.726; MPEG2-Layer2; G.722.1

• Built-in Microphone:

  Yes

• SD card:

  Yes

• SD card capacity:

  Micro SD up to 1 TB

• Network
• Wi-Fi:

  IEEE 802.11b/g/n/ax

• Ethernet:

  1 RJ-45 Ports (10/100 Mbps)

• Mobile App:

  Android, iOS

• Network Function:

  FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP

• Interoperability:

  ONVIF (Profile S & Profile G & Profile T); CGI; SDK

• Max. User Access:

  20

• Web Viewer:

  IE, Chrome, Firefox, Safari

• Management Software:

  DMSS; DSS PRO

• Compatible accessories:

  PFA120, PFB305W, PFA150, PFA151, PFA107, PFB220C

• Power
• Power Supply:

  12 VDC, 2 A ± 10%

• Power Consumption:

  < 13W

• Environment
• Operating Temperature:

  - 30°C to + 60°C

• Operating RH:

  < 95% RH

• Protection:

  IP66

• Vandal Resistance:

  IK08

• Construction
• Dimensions:

  Φ128 mm × 65.7 mm

• Net Weight:

  0.5 kg

• Gross Weight:

  0.7 kg

• Shipping package - DAHUA SD1A404DB-GNY-W
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  13.5 x 15.5 x 15.5; Weight: 0.7 kg.;
