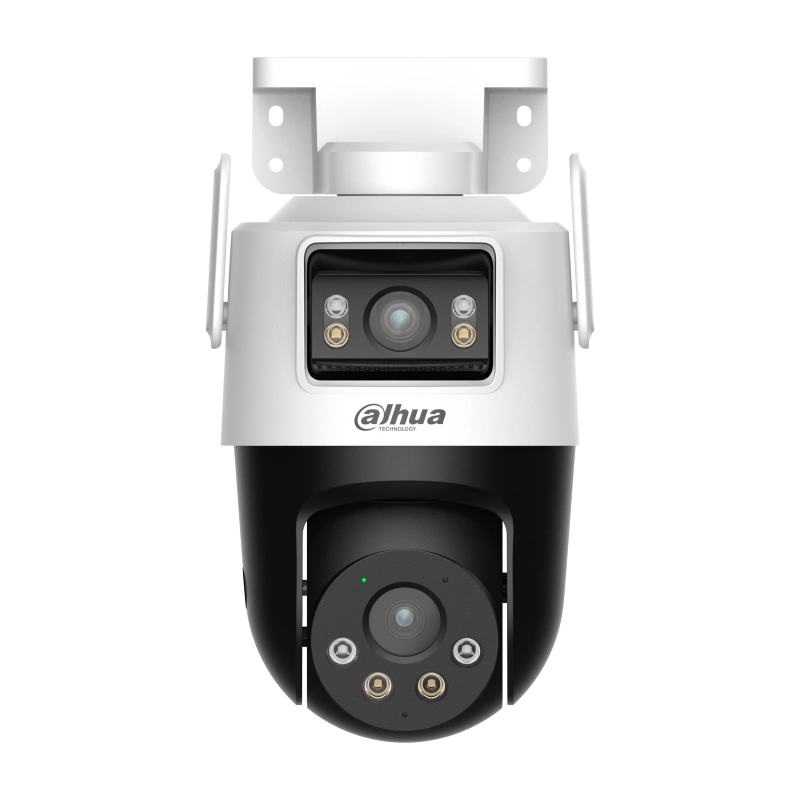

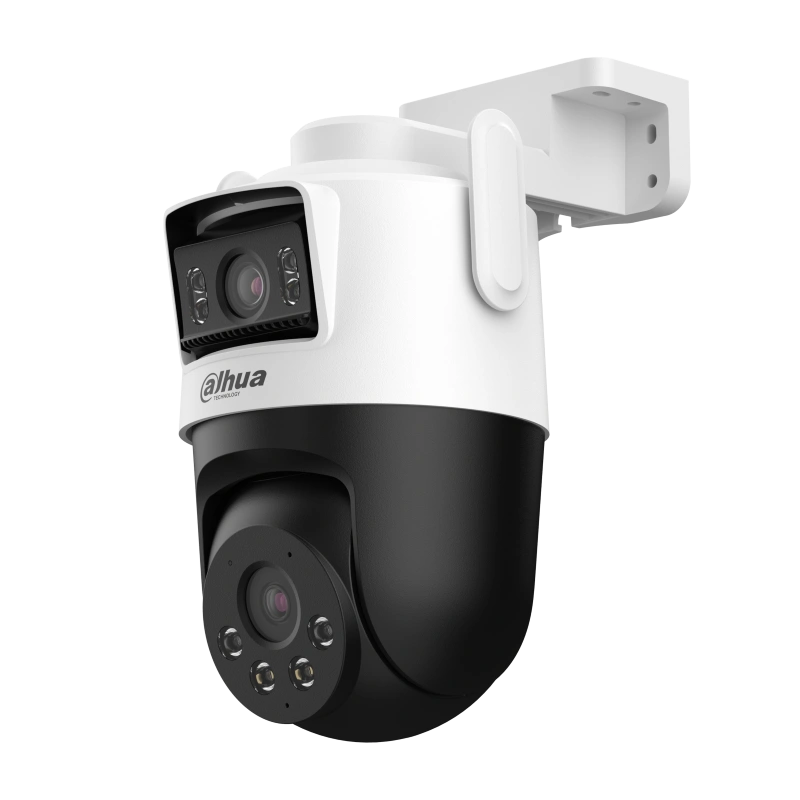

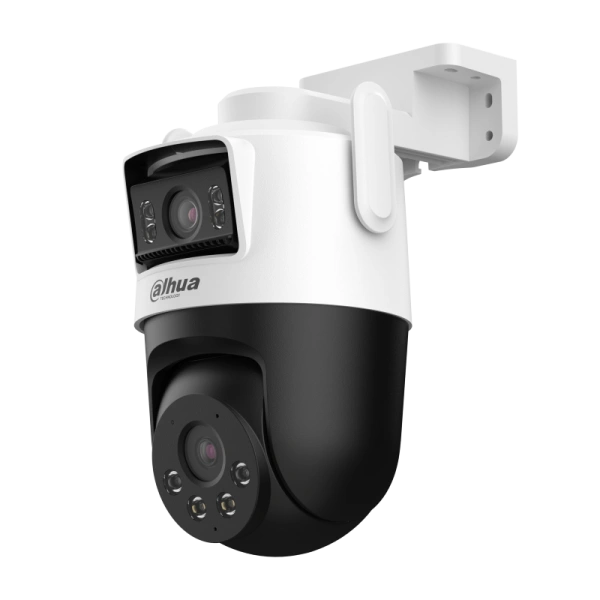

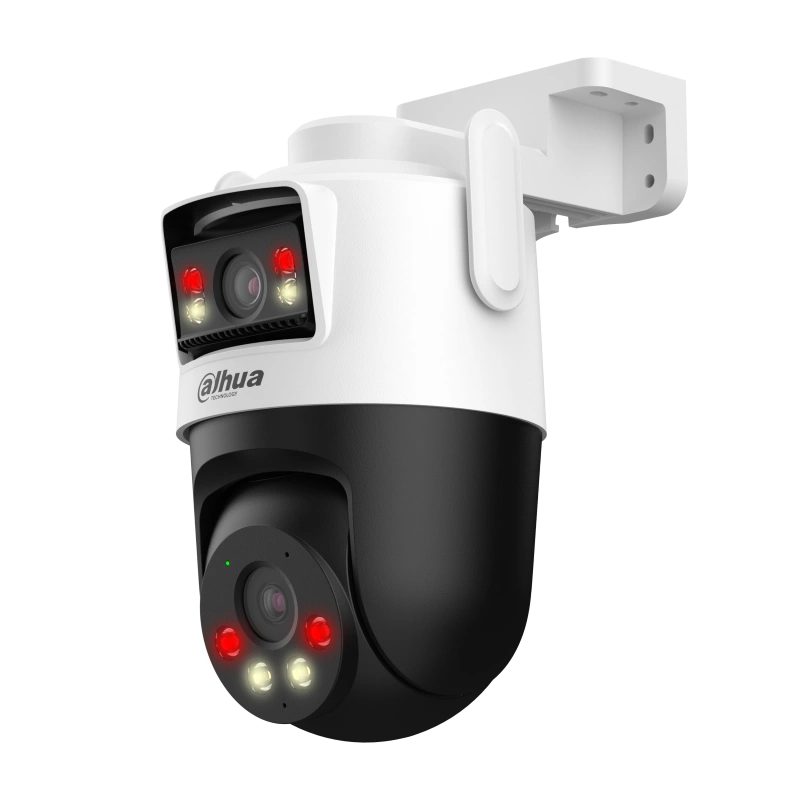

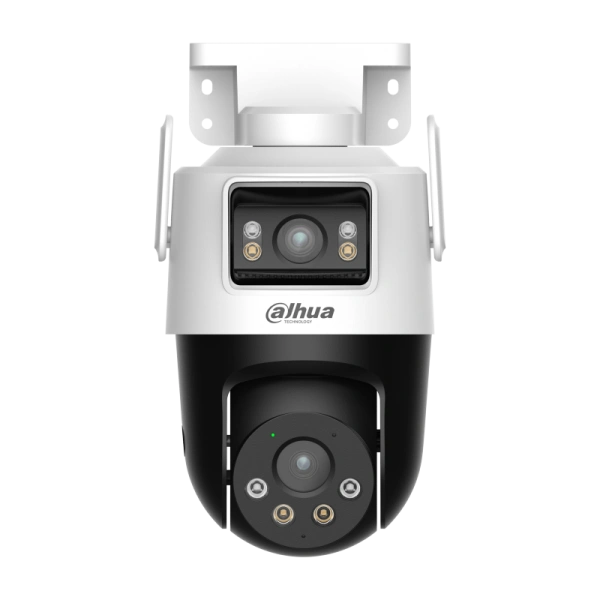

Wireless security camera Dahua P3D-3F-PV Picco 3+3MP Outdoor Wi-Fi Dual-Lens Pan & Tilt Camera

Technical information

• General
• Series:

  Wireless

• Color:

  White

• Image Sensor:

  2 x 1/2.8" 3 Megapixels Progressive CMOS

• Resolution:

  3M (2304 x 1296)

• Resolution_surveillance:

  3 Mp

• Scanning System:

  Progressive

• Day/Night:

  Auto (ICR)/Color/B/W

• IR backlight to:

  30 (fixed camera), 50 (PT camera) meters

• IR LEDs:

  2 x 2

• Fill Light (White Light) Distance:

  20 (Fixed camera), 40 (PT camera) m

• Fill Light Number:

  2 x 2

• Camera
• Pan/Tilt/Rotation:

  -10° to 15° (Fixed camera), 0° to 352° Pan, 0° to 90° Tilt (PT camera)

• PTZ / PT:

  Yes

• Lens
• Lens type:

  Fixed

• Focal Length:

  2.8 mm (Fixed camera), 6 mm (PT Camera)

• Max Aperture:

  F1.6 (Fixed camera), F1.6 (PT Camera)

• Angle of View:

  95° (H) (Fixed camera), 53° (H) (PT Camera)

• Iris Type:

  Fixed aperture

• Video
• Frame Rate:

  Main stream: 2304 × 1296@15 fps sub stream: 640 × 360@15 fps

• Video Compression:

  H.265

• Bit Rate:

  H.265: 512 kbps–4096 kbps

• WDR:

  DWDR

• Flip:

  0° / 180°

• Perimeter Protection
• AI Functions:

  SMD Plus (detection of vehicle/human)

• Face Recognition
• Metadata
• Artificial Intelligence
• Motion Detection:

  Yes

• Smart Motion Detection Technology:

  Yes

• Certification
• Certifications:

  CE

• Port
• Audio Compression:

  G.711A

• Built-in Microphone:

  Yes

• Built-in Speaker:

  Yes

• SD card:

  Micro SD up to 256 GB

• Network
• Wi-Fi:

  IEEE 802.11b/g/n/ax 2.412-2.472 GHz, 2.4 G

• Mobile App:

  Android, iOS

• Management Software:

  DMSS

• Power
• Power Supply:

  12V DC

• Power Consumption:

  Max 10W

• Environment
• Operating Temperature:

  - 20°C to + 50°C

• Operating RH:

  < 95% RH (non-condensation)

• Protection:

  IP66

• Construction
• Casing:

  Plastic

• Dimensions:

  159.4 mm × 119.1 mm × 210 mm

• Net Weight:

  0.585 kg

• Shipping package - DAHUA P3D-3F-PV PICOO
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  21 x 11.91 x 15.94; Weight: 1.1 kg.;
