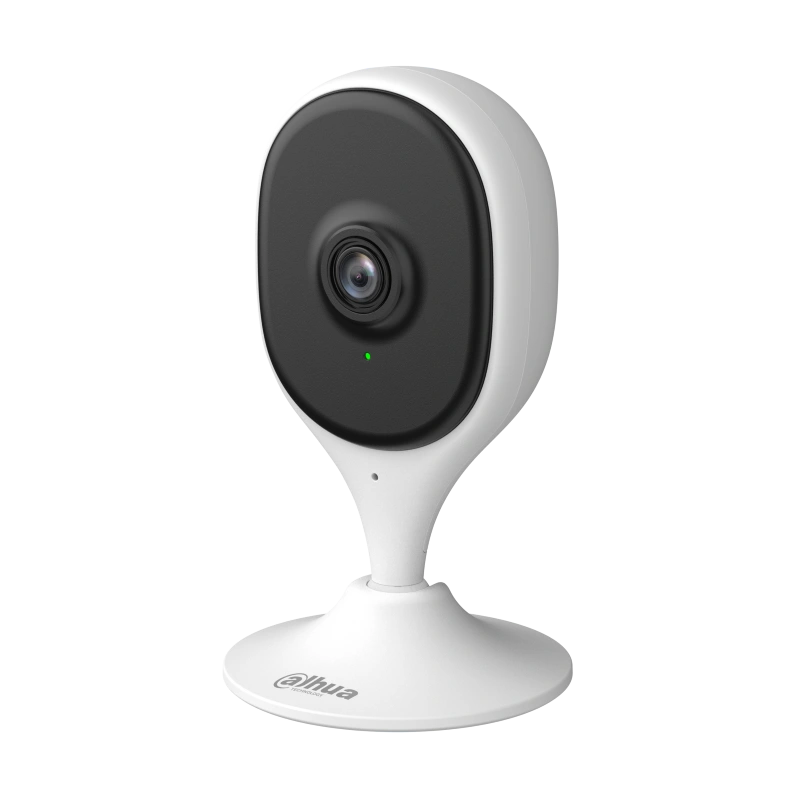

Wireless security camera Dahua C5A-0280B 5MP Indoor Fixed-focal Wi-Fi Cube Network Camera

Technical information

• General
• Case Type:

  Cube

• Series:

  Wireless

• Color:

  White

• Image Sensor:

  1/2.7” 5 Megapixel Progressive CMOS

• Resolution:

  5M (2880 × 1620)

• Resolution_surveillance:

  5 Mp

• Scanning System:

  Progressive

• Electronic Shutter Speed:

  Auto/Manual 1/3 s–1/100000 s

• Day/Night:

  Auto (ICR)/Color/B/W

• IR backlight to:

  10 meters

• IR On/Off Control:

  Auto

• IR LEDs:

  1

• Camera
• Pan/Tilt/Rotation:

  0°-360°(pan) and -10°-70°(tilt)

• Lens
• Max Aperture:

  F2.0

• Angle of View:

  90° (H)

• Video
• Frame Rate:

  Main stream: 2880 × 1620@(1-25/30 fps) sub stream: 640 × 360@(1-25/30 fps)

• Video Compression:

  H.265

• Bit Rate:

  H.265: 80 kbps–4096 kbps

• WDR:

  DWDR

• Flip:

  0° / 180°

• Perimeter Protection
• AI Functions:

  SMD (Human detection)

• Face Recognition
• Metadata
• Artificial Intelligence
• Motion Detection:

  Yes

• Smart Motion Detection Technology:

  Yes

• Detection:

  Human Detection

• Certification
• Certifications:

  CE

• Port
• Audio Compression:

  G.711A

• Built-in Microphone:

  Yes

• Built-in Speaker:

  Yes

• SD card:

  Micro SD up to 256 GB

• Network
• Wi-Fi:

  IEEE 802.11b/g/n/ax 2.412-2.472 GHz, 2.4 G

• Mobile App:

  Android, iOS

• Management Software:

  DMSS

• Power
• Power Supply:

  DC 5V1A

• Power Consumption:

  < 2.75 W

• Environment
• Operating Temperature:

  - 10°C to + 45°C

• Operating RH:

  < 95% RH

• Construction
• Casing:

  Plastic

• Dimensions:

  Φ68 mm × 31.9 mm × 119.2 mm

• Net Weight:

  0.095 kg

• Shipping package - DAHUA C5A-0280B CUBE
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  11.92 x 6.8 x 3.19; Weight: 0.11 kg.;
