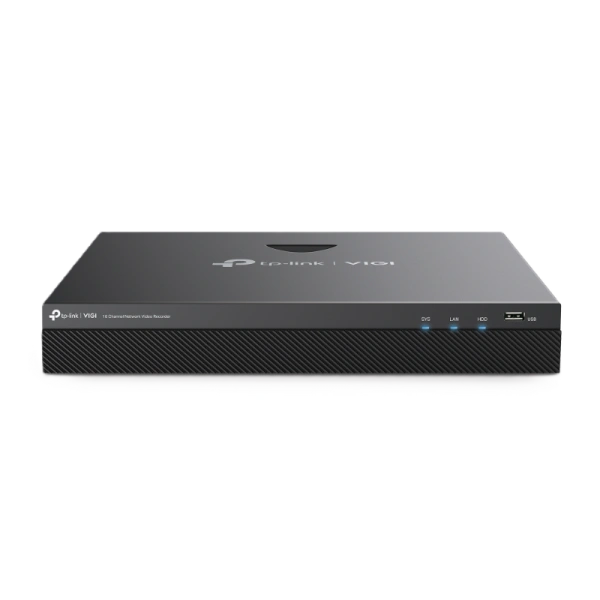

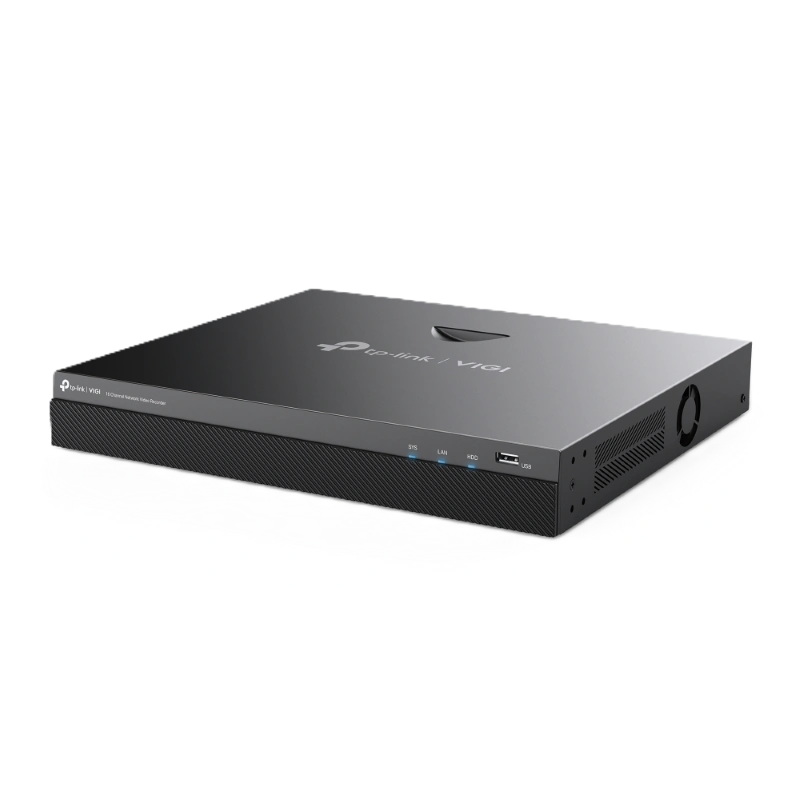

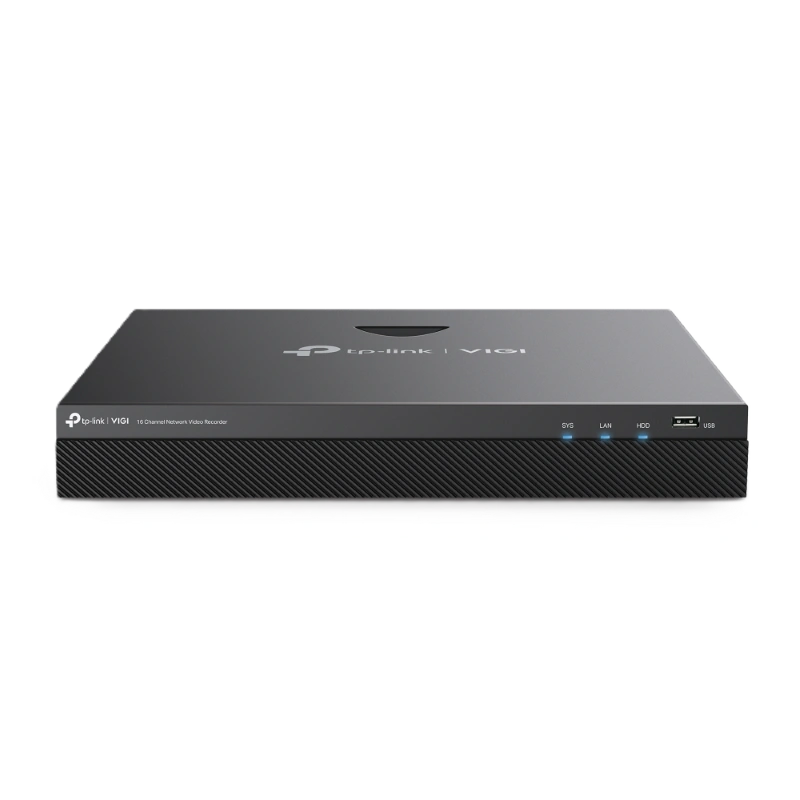

VIGI NVR2016H 16 Channel Network Video Recorder

Technical information

• General
• Color:

  Black

• IP Camera Input:

  16 channel

• Resolution:

  8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

• Max rezolution of the cameras:

  8 MP

• Storage:

  2 SATA III ports, up to 16 TB for a single HDD, 1 eSATA

• Camera
• Lens
• Video
• Video Compression:

  H.265+/H.265/H.264+/H.264

• Bandwidth:

  160 Mbps incoming; 160 Mbps Outgoing

• Record Mode:

  Manual/Motion detection/Schedule

• Decoding Capacity:

  25fps: 10-ch@1080P; 30fps: 2-ch@8MP, 4-ch@5MP, 5-ch@4MP, 6-ch@3MP

• Playback:

  Up to 16 channels playback

• Playback Function:

  Instant playback, general playback, event playback, tag playback

• Perimeter Protection
• AI Functions:

  Abandoned/missing object , Intrusion , Perimeter protection , Scene Changing , Smart Sound Detection , SMD Plus (detection of vehicle/human) , Tripwire

• Face Recognition
• Metadata
• Artificial Intelligence
• Motion Detection:

  Yes

• Alarm Prompt:

  Motion Detection, Video Tampering, Scene Change Detection, Line-Crossing Detection, Intrusion Detection, Region Entering Detection, Region Exiting Detection, Loitering Detection, Object Abandoned/Removal Detection, Vehicle Detection, Human Detection, Abnormal Sound Detection, Smart Frame

• Certification
• Certifications:

  CE, NTRA, Triman, BSMI, VCCI, FCC, HDMI, ONVIF

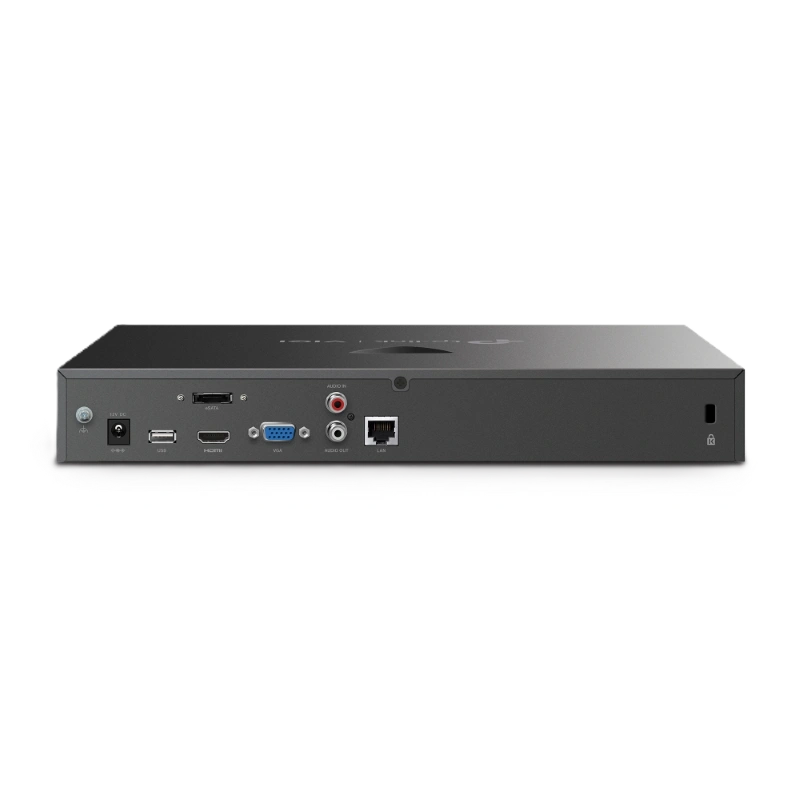

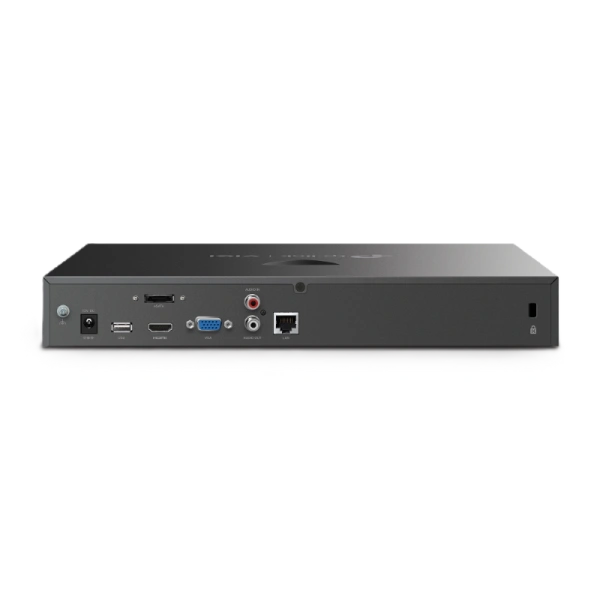

• Port
• Audio Input:

  1-channel (RCA port)

• Audio Output:

  1-channel (RCA port)

• Alarm I/O:

  6/4

• Video Port:

  1 х HDMI, 1 x VGA

• USB:

  1 Rear USB 3.0 , 1 Front USB 2.0

• Resolution:

  HDMI: 3840 ×2160/30Hz, 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz; VGA: 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

• Multi-screen Display:

  1/4/6/8/9/16

• Audio Compression:

  G.711A/G.711U/G.726

• Network
• Ethernet:

  1 RJ-45 Port (10/100/1000Mbps)

• Mobile App:

  Android, iOS

• Network Function:

  UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP, IPv6, SNMP, LLDP, FTP

• Interoperability:

  ONVIF Profile S/T, CGI

• Web Viewer:

  Chrome (57+), Firefox (52+), Edge (91+), Safari (11+)

• Management Software:

  VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool, VIGI PC Client

• Power
• Power Supply:

  12 VDC, 3.3 A

• Power Consumption:

  < 7.475 W (Without HDD)

• Environment
• Operating Temperature:

  - 10°C to + 55°C

• Operating RH:

  10% to 90% RH (no condensation)

• Storage Temperature:

  -40°C to +70°C

• Construction
• Dimensions:

  330 mm × 285 mm × 45 mm

• Net Weight:

  2 kg

• Gross Weight:

  3.3 kg
