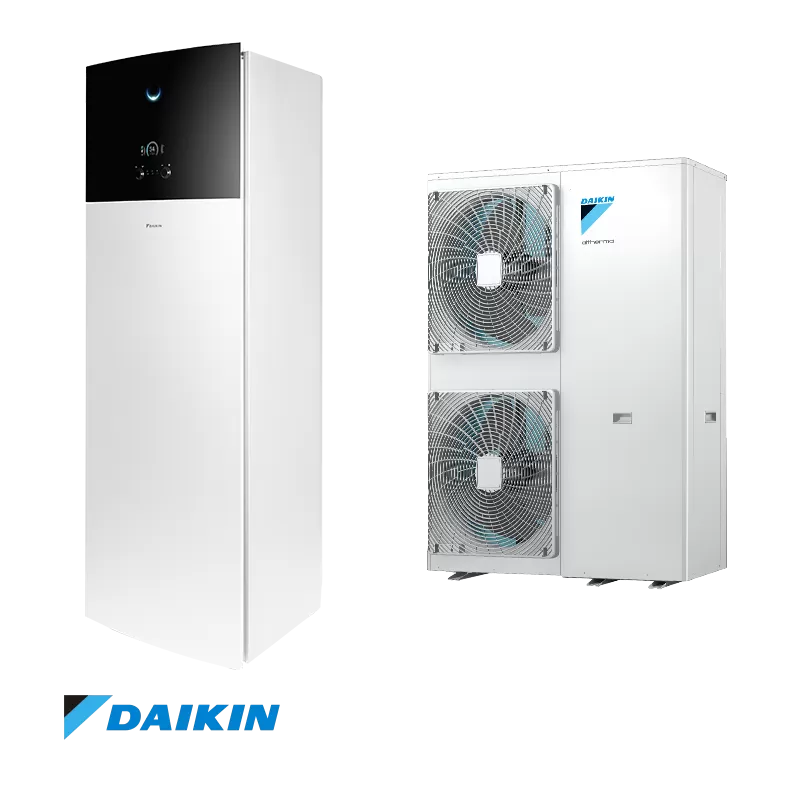

Low temperature heat pump with water tank Daikin Altherma EAVX16S18D6V + EPGA14DV

Technical information

• Basic
• Cooling capacity (Min./Nom./Max):

  - / 11.1 / - kW

• Heating capacity (Min./Nom./Max):

  - / 14.5 / - kW

• Consumption power - cooling (Min./Nom./Max):

  - / 2.72 / - kW

• Consumption power - heating (Min./Nom./Max):

  - / 2.91 / - kW

• Nominal efficiency EER cooling:

  4.09

• COP:

  4.99

• Operation Range (Cooling):

  10 ~ 43 °C

• Operation Range (Heating):

  -28 ~ 35 °C

• Circulating water temperature (cooling):

  5 ~ 22 °C

• Circulating water temperature (heating):

  15 ~ 60 °C

• Warranty:

  36 months

• Refrigerant:

  R-32

• Power supply (Phase/Frequency/Voltage):

  1~/50/230

• Indoor unit
• Dimensions:

  1650 x 595 x 625 H x W x L (mm)

• Weight:

  109 kg

• Sound Pressure - cooling (High/Nom./Low/Silent):

  - / 30 / - / - dB

• Sound Pressure - heating (High/Nom./Low/Silent):

  - / 30 / - / - dB

• Outdoor unit
• Dimensions:

  1440 x 1160 x 380 H x W x L (mm)

• Weight:

  143 kg

• Sound Pressure - cooling (High/Nom./Low/Silent):

  - / 55 / - / - dB

• Sound Pressure - heating (High/Nom./Low/Silent):

  - / 48 / - / - dB
