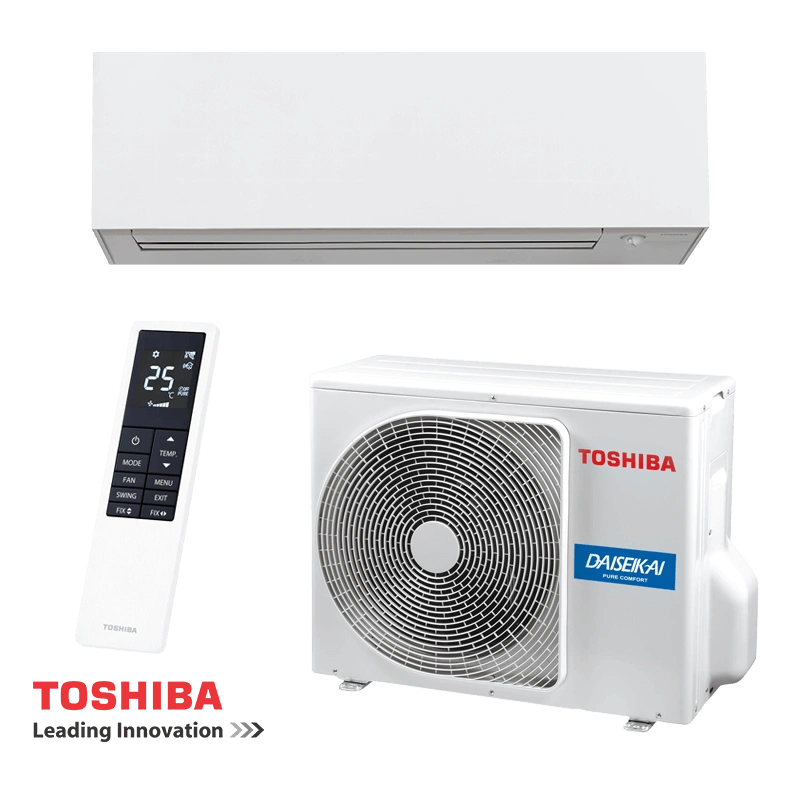

Inverter Air conditioner Toshiba Super Daiseikai 10 WHITE RAS-B13S4KVPG-E / RAS-13S4AVPG-E

Technical information

• Basic
• Wi-Fi:

  Yes

• Cooling capacity (Min./Nom./Max):

  0.9 / 3.5 / 4.2 kW

• Heating capacity (Min./Nom./Max):

  0.7 / 4.0 / 6.3 kW

• Consumption power - cooling (Min./Nom./Max):

  0.2 / 0.8 / 1.1 kW

• Consumption power - heating (Min./Nom./Max):

  0.18 / 0.8 / 1.6 kW

• Capacity (BTU):

  13 000 BTU

• Nominal efficiency EER cooling:

  4.38

• Seasonal efficiency SEER cooling:

  9.7

• COP:

  5

• SCOP:

  5.2

• Annual energy consumption (Cooling/Heating):

  126 / 969 kWh

• Energy label (Cooling / Heating) - Average climate:

  A+++ / A+++

• Operation Range (Cooling):

  -15 ~ 46 °C

• Operation Range (Heating):

  -20 ~ 24 °C

• Suitable for rooms up to:

  25 square meters

• Warranty:

  60 months

• Refrigerant:

  R-32

• Power supply (Phase/Frequency/Voltage):

  1~/50/220-240

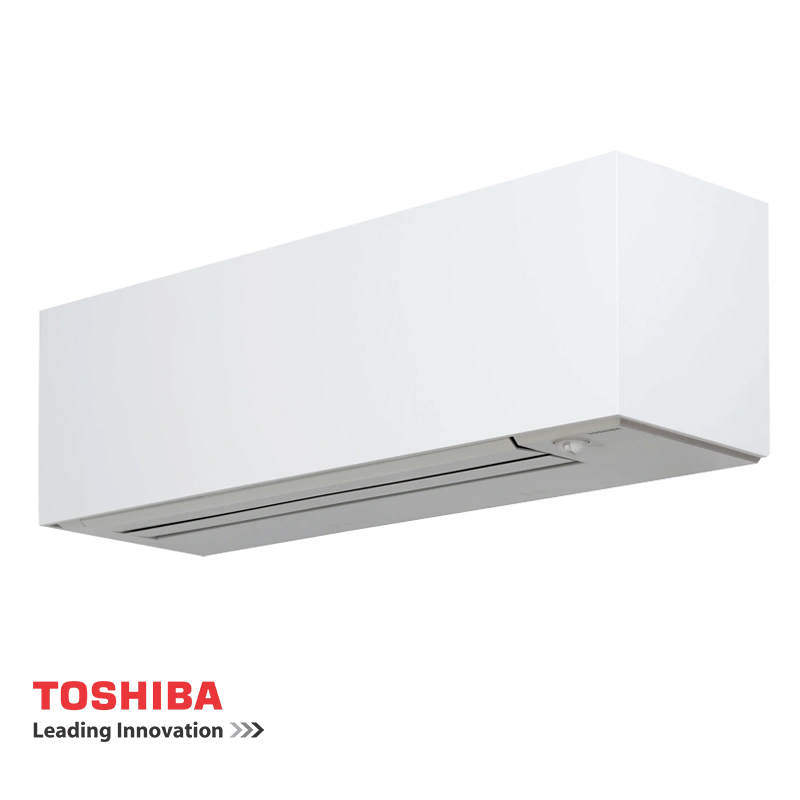

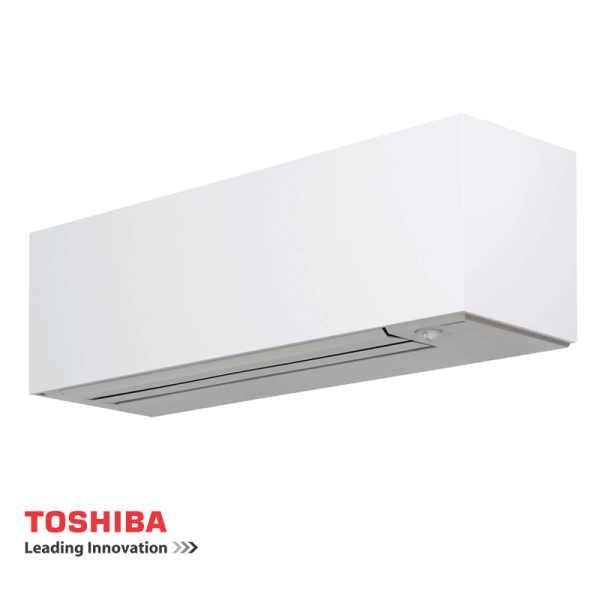

• Indoor unit
• Dimensions:

  293 x 940 x 257 H x W x L (mm)

• Weight:

  16 kg

• Sound Pressure - cooling (High/Nom./Low/Silent):

  41 / - / 26 / - dB (A)

• Sound Pressure - heating (High/Nom./Low/Silent):

  42 / - / 24 / - dB (A)

• Outdoor unit
• Compressor type:

  Twin Rotary

• Dimensions:

  630 x 800 x 300 H x W x L (mm)

• Weight:

  38 kg

• Refrigerant piping - Liquid / Gas:

  6.35 / 9.52 mm (1/4" / 3/8") mm / inch

• Sound Pressure - cooling (High/Nom./Low/Silent):

  45 / - / - / - dB (A)

• Sound Pressure - heating (High/Nom./Low/Silent):

  46 / - / - / - dB (A)

• Shipping package - TOSHIBA RAS-B13S4KVPG-E - DAI 10 WHITE
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  33 x 97 x 29; Weight: 16 kg.;

• Shipping package - TOSHIBA RAS-13S4AVPG-E - DAI 10 OUTDOOR
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  67 x 85 x 38; Weight: 42 kg.;
