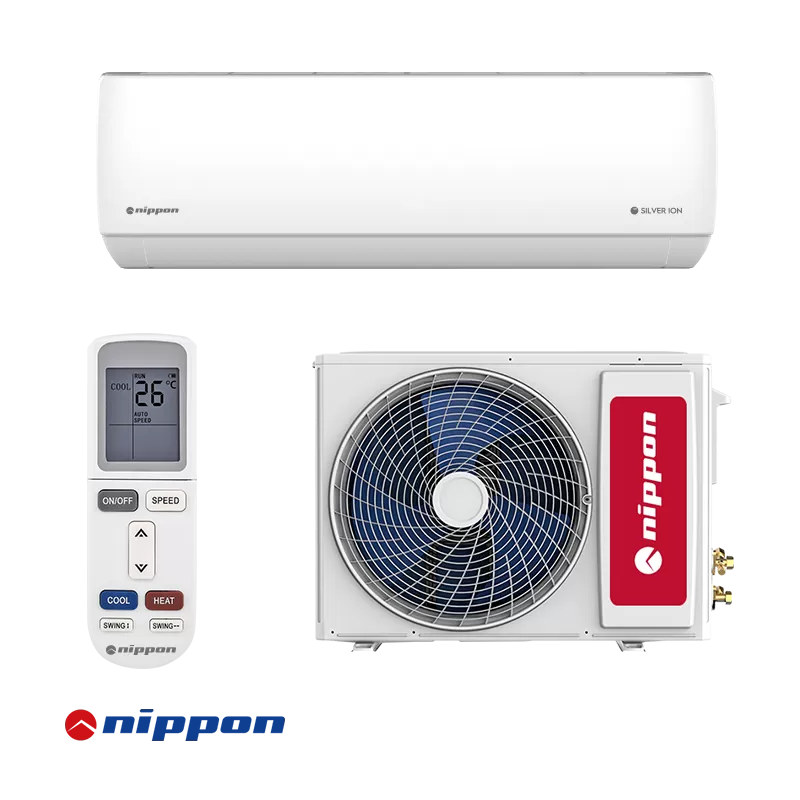

Inverter Air conditioner Nippon KFR 12DC SILVER ION 2

Technical information

• Basic
• Cooling capacity (Min./Nom./Max):

  0.8 / 3.5 / 4.1 kW

• Heating capacity (Min./Nom./Max):

  1.0 / 3.8 / 4.2 kW

• Consumption power - cooling (Min./Nom./Max):

  0.1 / 1.18 / 1.6 kW

• Consumption power - heating (Min./Nom./Max):

  0.3 / 1.10 / 1.6 kW

• Capacity (BTU):

  12 000 BTU

• Seasonal efficiency SEER cooling:

  6.19

• SCOP:

  4.1

• Annual energy consumption (Cooling/Heating):

  198 / 938 kWh

• Energy label (Cooling / Heating) - Average climate:

  A++ / A+

• Operation Range (Cooling):

  16 ~ 49 °C

• Operation Range (Heating):

  -15 ~ 30 °C

• Suitable for rooms up to:

  24 square meters

• Warranty:

  36 months

• Refrigerant:

  R-32

• Power supply (Phase/Frequency/Voltage):

  1~/50/220-240

• Indoor unit
• Dimensions:

  292 x 792 x 201 H x W x L (mm)

• Weight:

  8.5 kg

• Outdoor unit
• Dimensions:

  530 x 705 x 279 H x W x L (mm)

• Weight:

  22.5 kg

• Refrigerant piping - Liquid / Gas:

  6.35 / 9.52 mm (1/4" / 3/8") mm / inch

• Shipping package - KFR 12DC SILVER ION2 - INDOOR
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  27 x 35 x 86; Weight: 9 kg.;

• Shipping package - KFR 12DC SILVER ION2 - OUTDOOR
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  60 x 33 x 83; Weight: 22.5 kg.;
