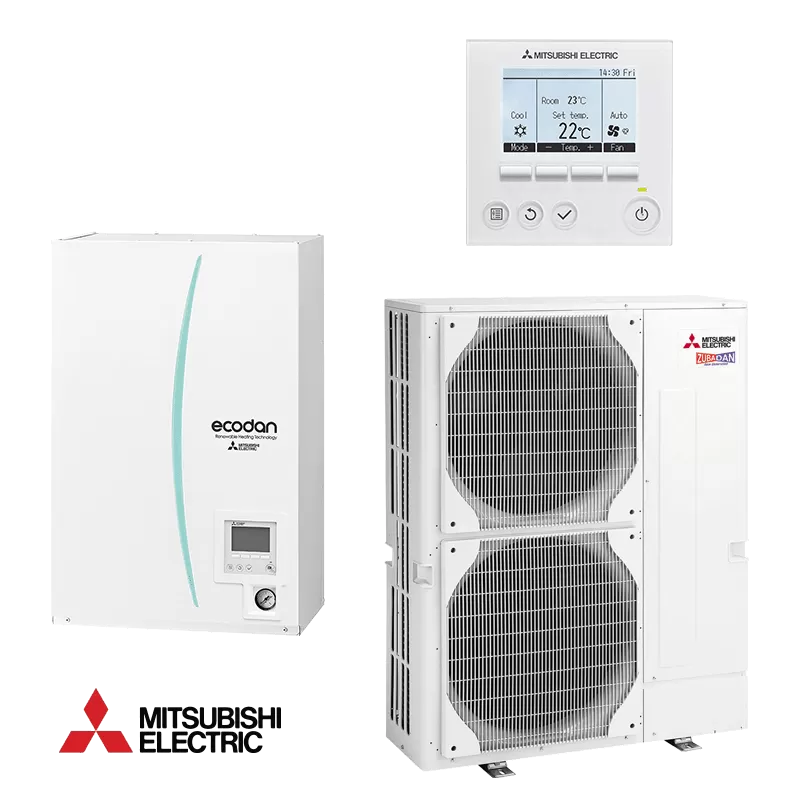

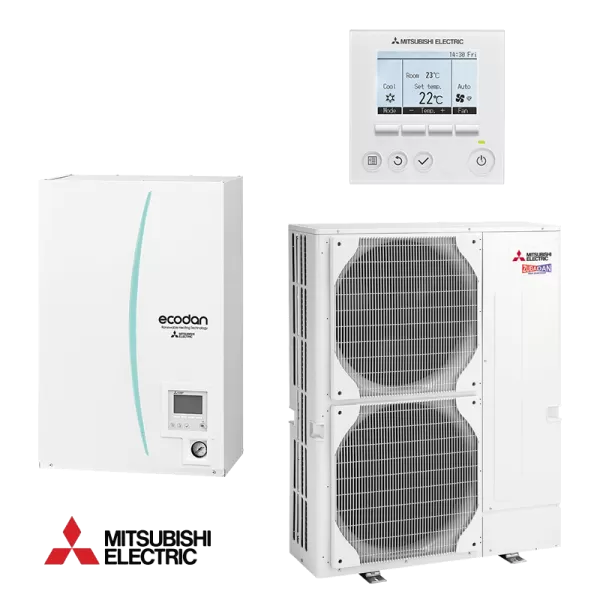

Heat pump Hydro box Mitsubishi Ecodan ERSE-MED + PUHZ-SHW230YKA - 3-phase

Technical information

• Basic
• Cooling capacity (Min./Nom./Max):

  - / 20.0 / - kW

• Heating capacity (Min./Nom./Max):

  - / 23.0 / - kW

• Consumption power - cooling (Min./Nom./Max):

  - / 5.63 / - kW

• Consumption power - heating (Min./Nom./Max):

  - / 6.31 / - kW

• Nominal efficiency EER cooling:

  3.55

• COP:

  3.65

• Operation Range (Cooling):

  -15 ~ 46 °C

• Operation Range (Heating):

  -28 ~ 21 °C

• Warranty:

  36 months

• Refrigerant:

  R-410A

• Power supply (Phase/Frequency/Voltage):

  3~/50/380-415

• Indoor unit
• Dimensions:

  950 x 600 x 360 H x W x L (mm)

• Weight:

  62 kg

• Sound Pressure - cooling (High/Nom./Low/Silent):

  - / 40 / - / - dB (A)

• Sound Pressure - heating (High/Nom./Low/Silent):

  - / 40 / - / - dB (A)

• Outdoor unit
• Dimensions:

  1338 x 1050 x 330 H x W x L (mm)

• Weight:

  143 kg

• Sound Pressure - heating (High/Nom./Low/Silent):

  - / 75 / - / - dB (A)
