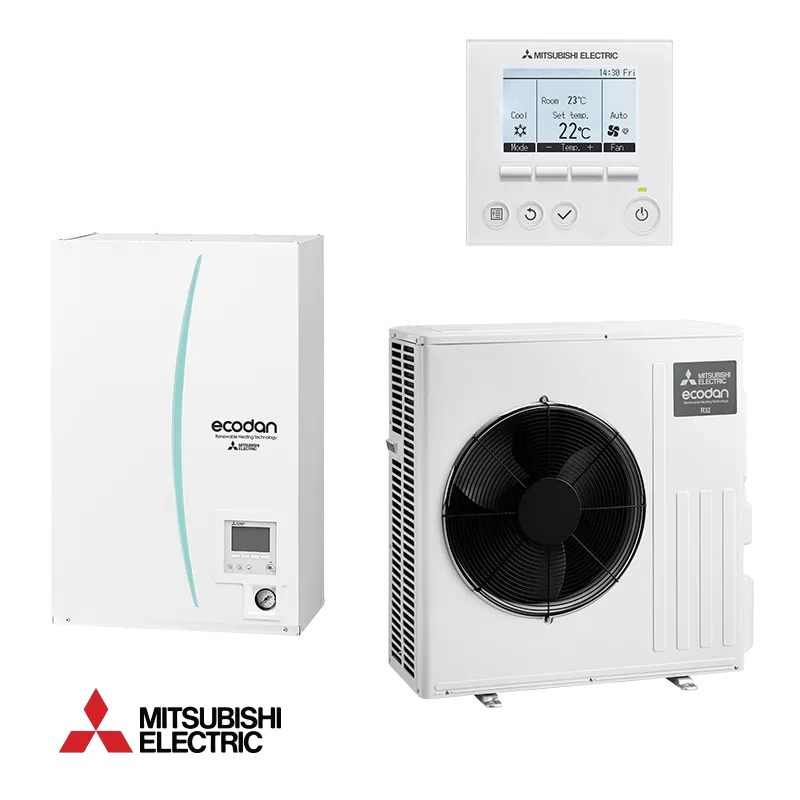

Heat pump Hydro box Mitsubishi Ecodan ERSD-VM2D + SUZ-SWM40VA

Technical information

• Basic
• Cooling capacity (Min./Nom./Max):

  - / 5.6 / - kW

• Heating capacity (Min./Nom./Max):

  - / 4.0 / - kW

• Consumption power - cooling (Min./Nom./Max):

  - / 1.12 / - kW

• Consumption power - heating (Min./Nom./Max):

  - / 0.77 / - kW

• Nominal efficiency EER cooling:

  4.97

• COP:

  5.2

• Operation Range (Cooling):

  10 ~ 46 °C

• Operation Range (Heating):

  -20 ~ 24 °C

• Warranty:

  36 months

• Refrigerant:

  R-32

• Power supply (Phase/Frequency/Voltage):

  1~/50/220-240

• Indoor unit
• Dimensions:

  800 x 530 x 360 H x W x L (mm)

• Weight:

  44 kg

• Sound Pressure - cooling (High/Nom./Low/Silent):

  - / 41 / - / - dB (A)

• Sound Pressure - heating (High/Nom./Low/Silent):

  - / 41 / - / - dB (A)

• Outdoor unit
• Dimensions:

  880 x 840 x 330 H x W x L (mm)

• Weight:

  54 kg

• Sound Pressure - cooling (High/Nom./Low/Silent):

  - / 58 / - / - dB (A)

• Sound Pressure - heating (High/Nom./Low/Silent):

  - / 58 / - / - dB (A)
