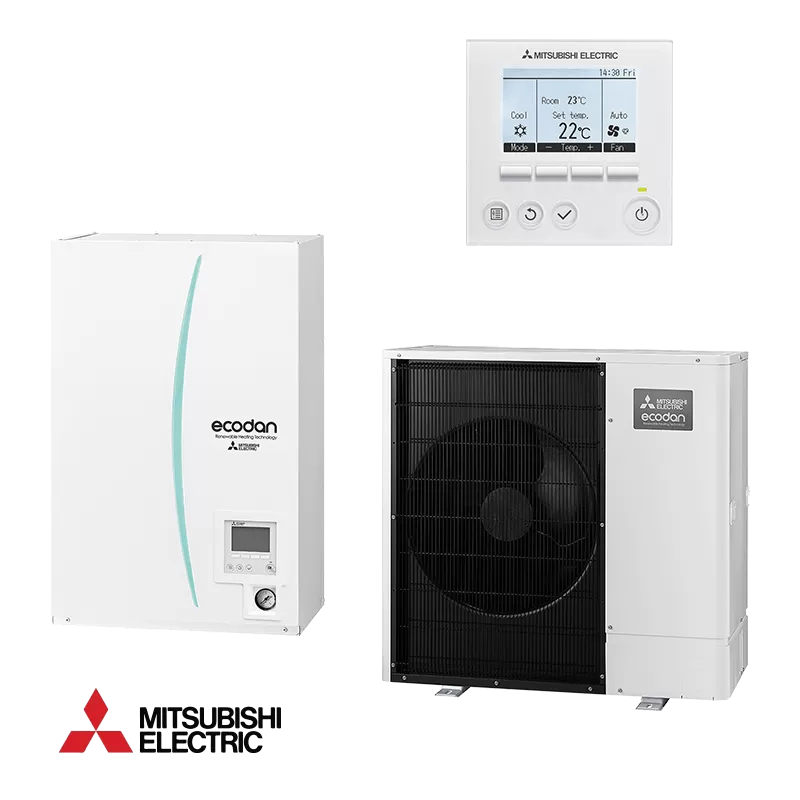

Heat pump Hydro box Mitsubishi Ecodan ERSD-VM2D + PUD-SHWM140YAA - 3-phase (only heating)

Technical information

• Basic
• Heating capacity (Min./Nom./Max):

  - / 14.0 / - kW

• Consumption power - heating (Min./Nom./Max):

  - / 6.51 / - kW

• Capacity (BTU):

  48 000 BTU

• COP:

  2.15

• Operation Range (Heating):

  -28 ~ 21 °C

• Warranty:

  36 months

• Refrigerant:

  R-32

• Power supply (Phase/Frequency/Voltage):

  3~/50/380-415

• Indoor unit
• Dimensions:

  800 x 530 x 360 H x W x L (mm)

• Weight:

  47 kg

• Sound Pressure - heating (High/Nom./Low/Silent):

  - / 40 / - / - dB (A)

• Outdoor unit
• Dimensions:

  1020 x 1050 x 480 H x W x L (mm)

• Weight:

  110 kg

• Sound Pressure - heating (High/Nom./Low/Silent):

  - / 62 / - / - dB (A)
