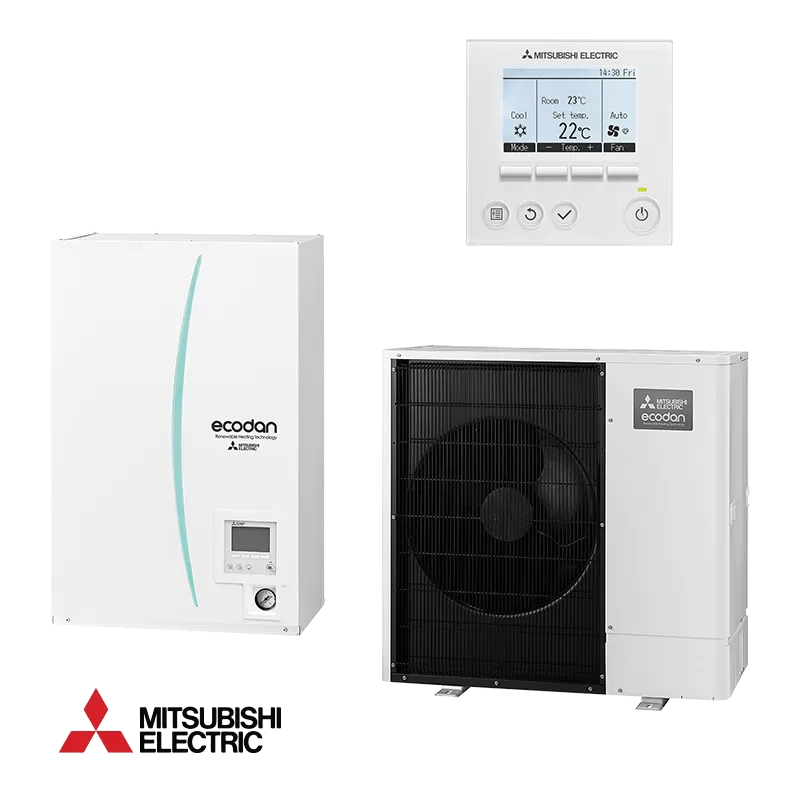

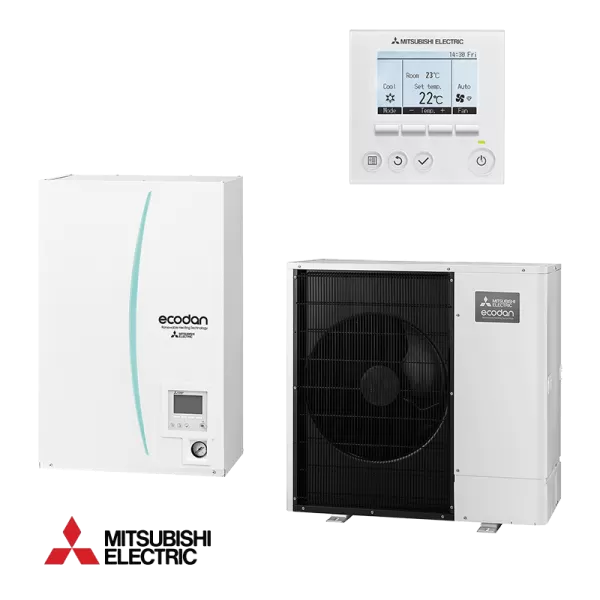

Heat pump Hydro box Mitsubishi Ecodan ERSC-MED + PUHZ-SW100VAA

Technical information

• Basic
• Cooling capacity (Min./Nom./Max):

  - / 10.0 / - kW

• Heating capacity (Min./Nom./Max):

  - / 11.2 / - kW

• Consumption power - cooling (Min./Nom./Max):

  - / 2.3 / - kW

• Consumption power - heating (Min./Nom./Max):

  - / 2.51 / - kW

• Nominal efficiency EER cooling:

  2.83

• COP:

  4.46

• Operation Range (Cooling):

  -15 ~ 46 °C

• Operation Range (Heating):

  -20 ~ 21 °C

• Warranty:

  36 months

• Refrigerant:

  R-410A

• Power supply (Phase/Frequency/Voltage):

  1~/50/220-240

• Indoor unit
• Dimensions:

  800 x 530 x 360 H x W x L (mm)

• Weight:

  40 kg

• Sound Pressure - cooling (High/Nom./Low/Silent):

  - / 40 / - / - dB

• Sound Pressure - heating (High/Nom./Low/Silent):

  - / 40 / - / - dB

• Outdoor unit
• Dimensions:

  1020 x 1050 x 480 H x W x L (mm)

• Weight:

  114 kg

• Sound Pressure - heating (High/Nom./Low/Silent):

  - / 60 / - / - dB
