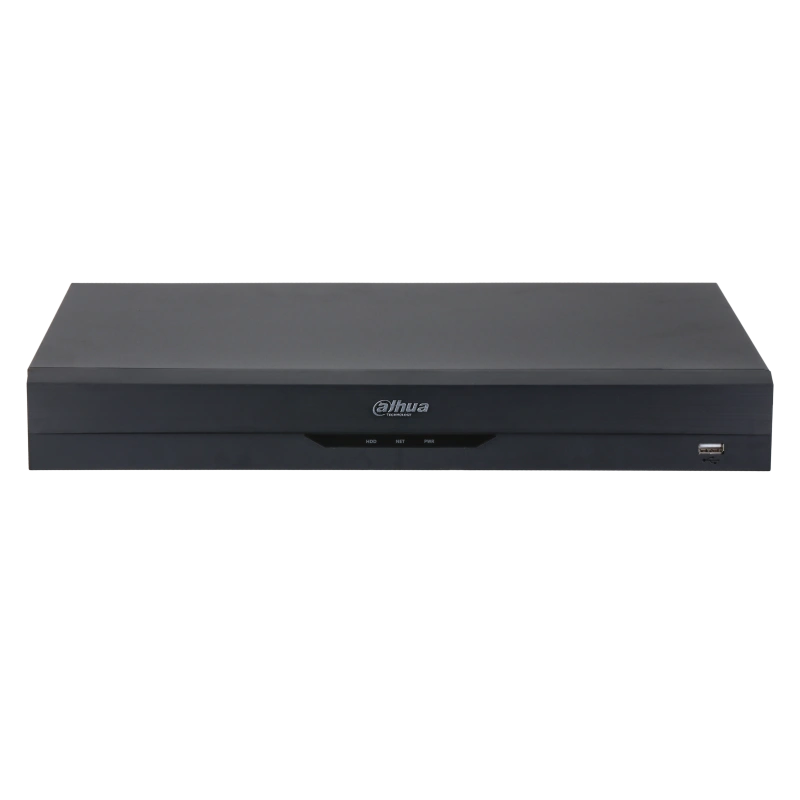

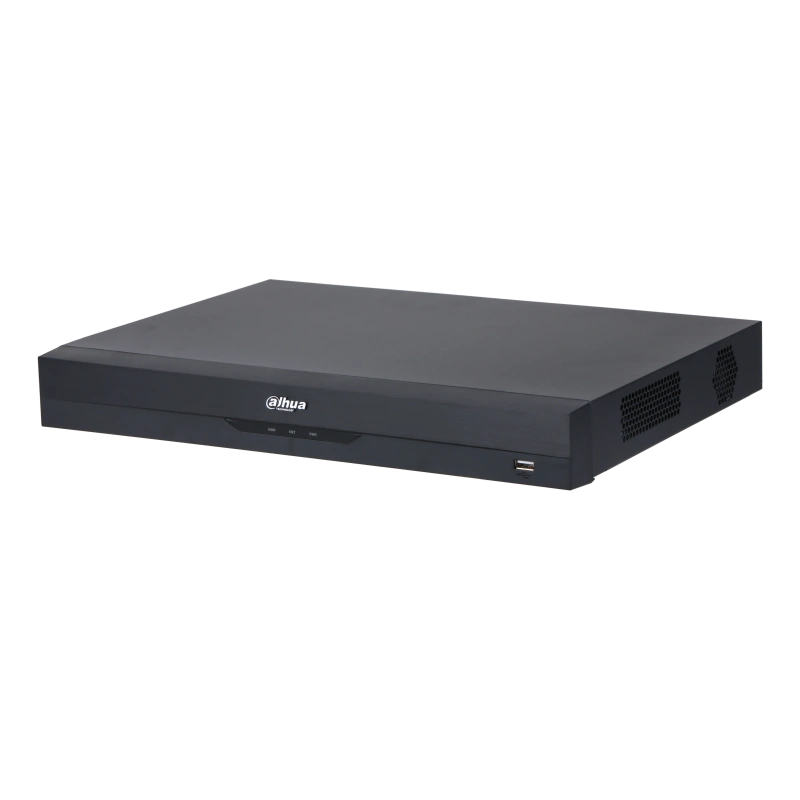

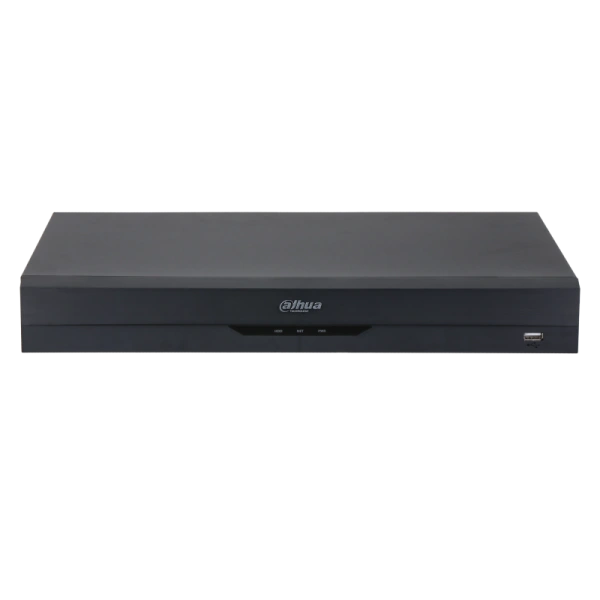

Dahua XVR5232AN-I2/T 32CH Penta-brid 5MP Value/1080P 1U 2HDDs WizSense Digital Video Recorder

Technical information

• General
• Series:

  WizSense

• Color:

  Black

• Main Processor:

  Embedded Processor

• Operating System:

  Embedded LINUX

• Analog Camera Input:

  32 channels, BNC

• IP Camera Input:

  16+32 channels

• HDCVI Camera:

  5 MP@25 fps; 5 MP@20 fps; 5 MP@10/12.5 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@50/60 fps; 720p@25/30fps

• AHD Camera:

  5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps

• TVI Camera:

  5 MP(2560 × 1944)@20 fps; 5 MP(2960 × 1665)@20/25 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps

• Max rezolution of the cameras:

  5 MP

• Storage:

  2 SATA III Ports, Up to 16 TB

• Camera
• Lens
• Video
• Video Compression:

  H.265/H.264

• Smart Codec:

  AI , Smart H.265+/ Smart H.264+

• Streaming Capability:

  2 streams

• Bandwidth:

  192 Mbps incoming bandwidth

• Bit Rate:

  32 kbps–6144 kbps

• Encoding Capacity:

  Main stream: Channels 1-4 and 17-20 5M-N@(1 fps–25 fps), others 5M-N@(1 fps–12 fps); Channels 1-4 and 17-20 4M-N/1080p@(1 fps–30 fps), others 4M-N/1080p@(1 fps–15 fps); 1080N/720p/960H/D1/CIF@(1 fps–30 fps); Sub stream: D1/CIF@(1 fps–15 fps); Encode Enhancement enabled： Main stream: Channels 1-8 and 17-24 5M-N@(1 fps–20 fps), others 5M-N@(1 fps-12 fps); (4 channels can be transformed to 5MP@6 fps) Channels 1-8 and 17-24 4M-N/1080p@(1 fps–25 fps),others 4M-N/1080p@(1 fps–15 fps); 1080N/720p/960H/D1/CIF@(1 fps–30 fps); Sub stream: D1/CIF@(1 fps–15 fps);

• Record Mode:

  General, motion detection; intelligent; alarm

• Playback:

  1/4/9/16

• Playback Function:

  Instant playback, general playback, event playback, tag playback, smart playback

• Backup Mode:

  USB Device/Network

• Perimeter Protection
• AI Functions:

  AcuPick , Perimeter protection , Intrusion , Tripwire , Face detection , Face recognition , SMD Plus (detection of vehicle/human) , Scene Changing

• AcuPick by Recorder:

  2 channels

• Perimeter protection by recorder:

  8 channels, 10 IVS rules per channel

• SMD Plus by camera:

  48 channels

• SMD Plus by recorder:

  32 channels

• Face recognition by recorder:

  2 канала за разпознаване на лица по видео поток

• Face Detection by recorder:

  2 channels

• Face Recognition
• Metadata
• Artificial Intelligence
• Motion Detection:

  Yes

• IVS / Intelligent Video Surveillance :

  Tripwire, Intrusion

• Smart Motion Detection Technology:

  Yes

• Alarm Prompt:

  Motion detection; alarm box; HDCVI alarm; camera external alarm; network alarm; PIR alarm

• Certification
• Certifications:

  CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014

• Third-party Support:

  Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF

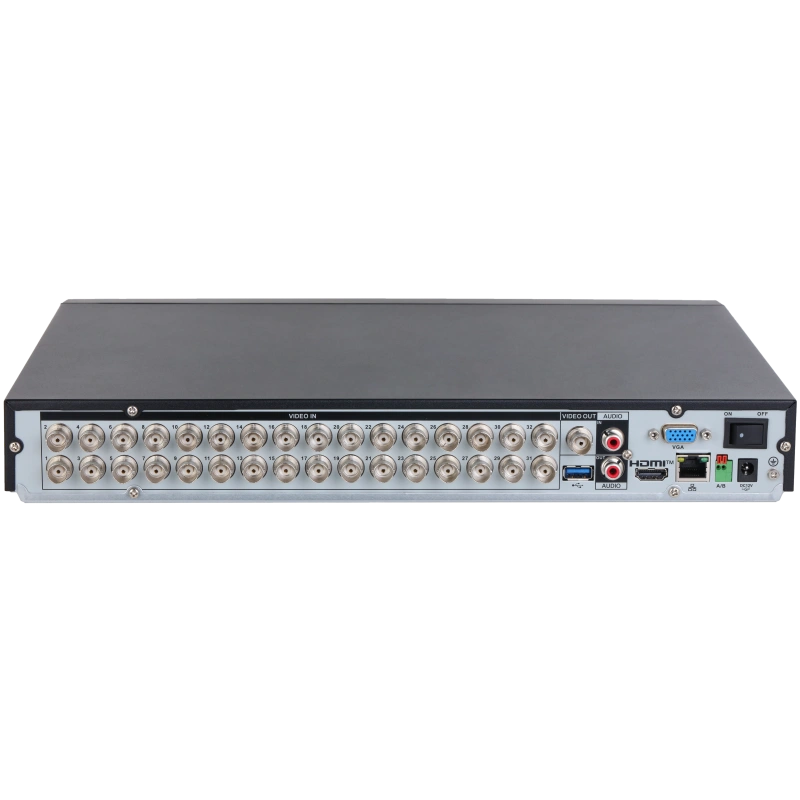

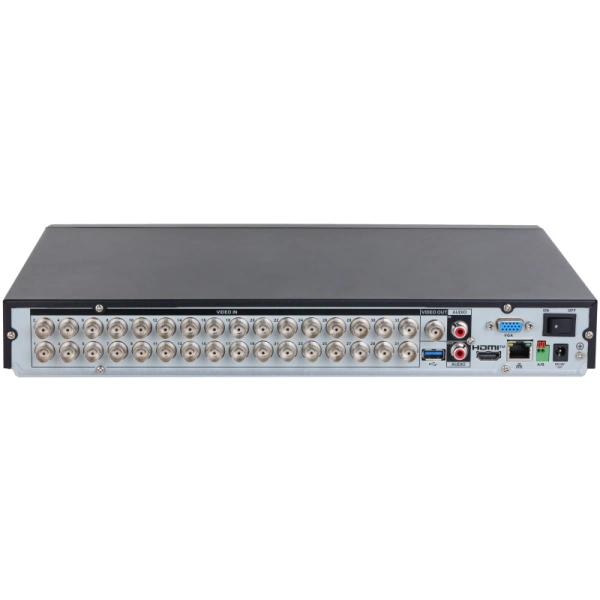

• Port
• Audio Input:

  1-channel RCA, 32-channel BNC (Coaxial Audio)

• Audio Output:

  1-channel (RCA port)

• Video Port:

  1 х HDMI, 1 x VGA

• USB:

  1 front USB 2.0 port, 1 rear USB 3.0 port

• RS485:

  1

• Resolution:

  HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720

• Multi-screen Display:

  1st Screen: 1/4/8/9/16/25/36; 2nd Screen: 1/4/8/9/16

• Two-way Talk:

  Yes

• Audio Compression:

  G.711a; G.711u; PCM

• Audio Sample Rate:

  8KHz, 16 bit Per Channel

• Audio Bit Rate:

  64 Кbps Per Channel

• Network
• Ethernet:

  1 RJ-45 Port (10/100/1000Mbps)

• Mobile App:

  Android, iOS

• Network Function:

  HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)

• Interoperability:

  ONVIF 24.12 (Profile T; Profile S; Profile G); CGI; SDK

• Web Viewer:

  Chrome; IE; Safari; Edge; Firefox

• Power
• Power Supply:

  12 VDC, 5 A

• Power Consumption:

  < 16W (Without HDD)

• Environment
• Operating Temperature:

  - 10°C to + 55°C

• Operating RH:

  10% to 90% RH (no condensation)

• Storage Temperature:

  - 20°C to + 60°C

• Construction
• Dimensions:

  375.0 mm × 289.6 mm × 53.0 mm

• Net Weight:

  1.9 kg

• Gross Weight:

  3.24 kg

• Shipping package - DAHUA XVR5232AN-I2/T
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  13.7 x 42.7 x 35.6; Weight: 3.24 kg.;
