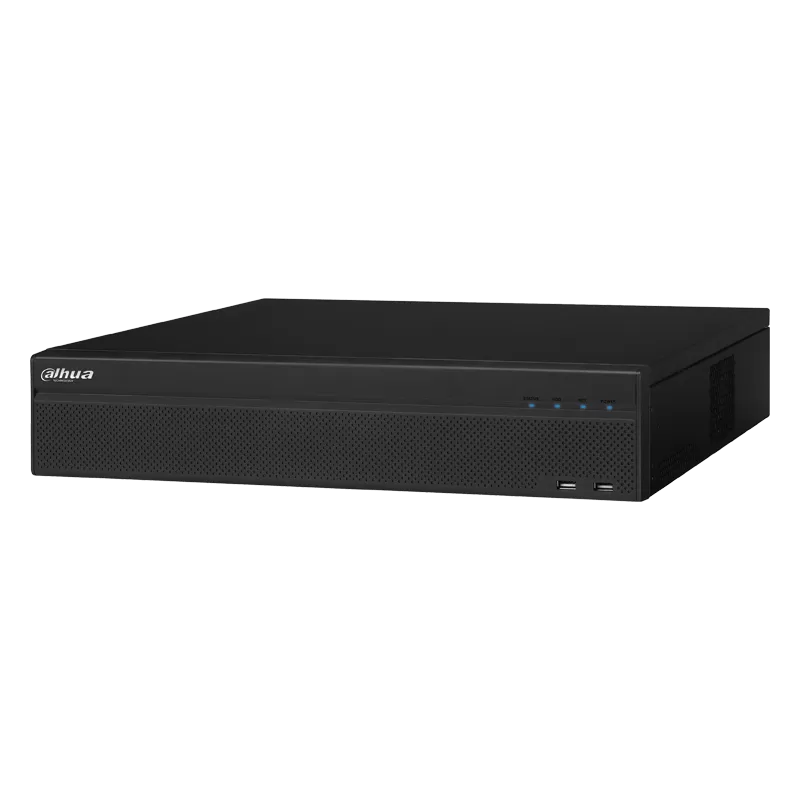

Dahua NVR5816-16P-4KS2E 16 Channel Pro Network Video Recorder

Technical information

• General
• Series:

  Pro

• Main Processor:

  Embedded Processor

• Operating System:

  Embedded LINUX

• IP Camera Input:

  16 channel

• Resolution:

  12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 1.3MP, 720p, D1, and more

• Max rezolution of the cameras:

  12 MP

• Storage:

  8 SATA III ports, up to 10 TB for a single HDD, 1 x eSATA

• Camera
• Lens
• Video
• Video Compression:

  Smart H.265+/H.265/Smart H.264+/H.264/MJPEG

• Bandwidth:

  320 Mbps for access, 320 Mbps for storage and 320 Mbps for forwarding

• Decoding Capacity:

  16-channel@1080P (30 fps)

• Record Mode:

  Manual; schedule (general; MD; alarm; MD & alarm; intelligent; POS)

• Playback:

  1/4/9/16

• Playback Function:

  Play, Pause; Stop; Fast forward; Fast backward; Rewind; Play by frame; Full screen; Backup (cut/file); Partially enlarge; Audio on/off

• Backup Mode:

  USB device

• Perimeter Protection
• Performance:

  16 channels

• AI Search:

  Search for pictures by channel, time and event type

• AI Functions:

  Perimeter protection , SMD Plus (detection of vehicle/human) , Face recognition , License plate recognition , Metadata , Stereo Analysis , Heat map , Face detection , People counting , Fisheye

• Perimeter protection by camera:

  16 channels

• SMD Plus by camera:

  16 channels

• Face recognition by camera:

  14 channels

• License plates recofnition by camera (ANPR):

  4 channels

• Video metadata by camera:

  16 channels

• Stereo analysi by camera:

  16 channels

• Face Recognition
• Face Recognition:

  Yes

• Performance:

  14 channels, 6 attributes: Gender; age; glasses; expression; mouth mask; beard

• AI Search:

  Search for pictures by channel, time and face attributes

• Metadata
• Vehicle:

  Plate No., type, color, vehicle type, logo, plate color, ornament, calling, seatbelt, region.

• Human Body:

  Top; top color; bottom; bottom color; hat; bag; gender; age; umbrella

• Non-motor Vehicle:

  Type, color, number of passengers, helmet.

• AI Search:

  Support search target video by metadata

• Artificial Intelligence
• Motion Detection:

  Yes

• Face Recogntion:

  Yes

• Smart Motion Detection Technology:

  Yes

• SMD Plus Performance:

  16 channels, Search by target classification (human, vehicle)

• Alarm Prompt:

  Motion detection, privacy masking, video loss, local alarm, PIR alarm, IPC alarm

• Certification
• Certifications:

  CE (EN55032, EN55024, EN50130-4, EN60950-1) FCC (Part 15 Subpart B, ANSI C63.4-2014) UL (UL60950-1)

• Third-party Support:

  Panasonic, Sony, Samsung, Axis, Pelco, Arecont, Onvif, Canon and more

• Port
• Audio Input:

  1-channel (RCA port)

• Audio Output:

  2 channels, RCA connector, which supports voice intercom output

• Alarm I/O:

  16/6

• Video Port:

  2 x HDMI, 2x VGA

• USB:

  4 USB Ports (2 Rear USB 3.0, 2 Front USB 2.0)

• RS232:

  1 channel, used to debug and pass through serial data

• RS485:

  1 Port, for PTZ Control

• Resolution:

  HDMI1: 3840 × 2160; 1920 × 1080; 1280 × 1024; 1280 × 720 VGA1: 1920 × 1080; 1280 × 1024; 1280 × 720 HDMI2/VGA2: 1920 × 1080 VGA1/HMDI1 homologous output, VGA2/HDMI2 homologous output, and VGA1/HDMI1 and VGA2/HDMI2 supports heterogeneous output

• Multi-screen Display:

  1st Screen: 1/4/8/9/16; 2nd Screen: 1/4/8/9/16

• Audio Compression:

  PCM; G.711A; G.711U; G.726

• Network
• PoE:

  16 ports (IEEE802.3af/at) 1-8 ports support ePoE & EoC

• Ethernet:

  1 RJ-45 Port (10/100/1000Mbps)

• Mobile App:

  Android, iOS

• Network Function:

  HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, and more.) ; P2P

• Interoperability:

  ONVIF (profile T/S/G); CGI; SDK

• Web Viewer:

  Chrome; IE9 or later; Firefox

• Power
• Power Supply:

  AC100V-240V, 50/60Hz

• Power Consumption:

  NVR: < 17.5W (without HDD) PoE: Max 25.5W for single port 150W total rated power

• Environment
• Operating Temperature:

  - 10°C to + 55°C

• Operating RH:

  10%–93%

• Storage Temperature:

  0°C to +40°C

• Construction
• Dimensions:

  440.0 mm × 452.5 mm × 94.9 mm

• Net Weight:

  7 kg

• Gross Weight:

  9.5 kg
