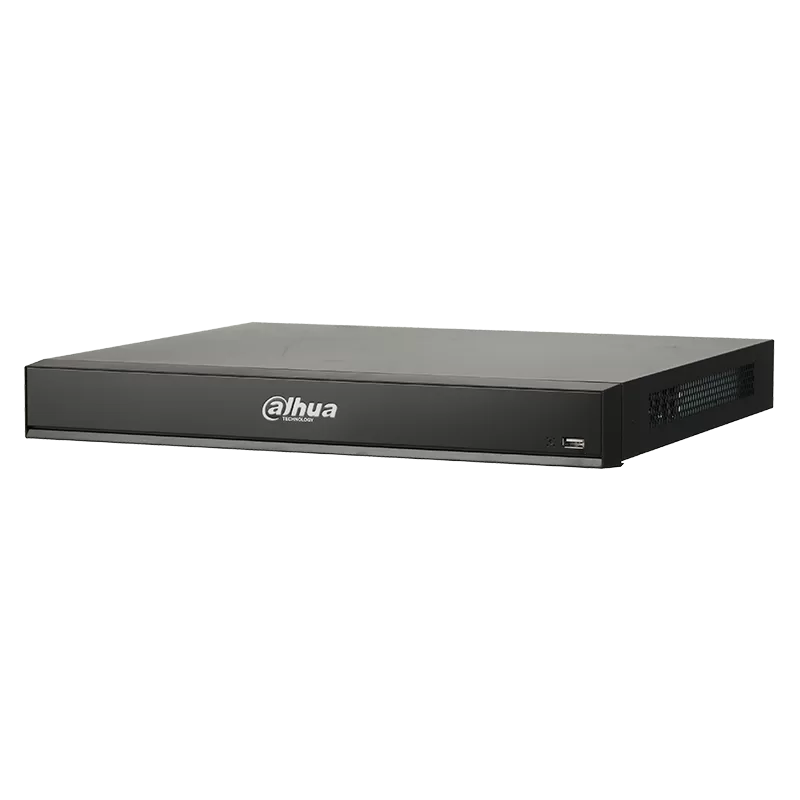

Dahua NVR5216-16P-I+L 16 Channel 1U 2HDDs 16PoE WizMind Network Video Recorder

Technical information

• General
• Series:

  WizMind

• Main Processor:

  Embedded Processor

• Operating System:

  Embedded LINUX

• IP Camera Input:

  16 channel

• Resolution:

  24MP, 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1 etc.

• Max rezolution of the cameras:

  24 MP

• Storage:

  2 SATA III Ports, Up to 10 TB capacity for each HDD

• Camera
• Lens
• Video
• Video Compression:

  Smart H.265+/H.265/Smart H.264+/H.264/MJPEG

• Bandwidth:

  320 Mbps (160 Mbps when AI function enabled)

• Record Mode:

  Manual, Schedule (Continuous, MD (Motion Detection), Alarm, IVS)

• Record Interval:

  1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec

• Decoding Capacity:

  4-ch@8MP (30fps), 16-ch@1080P (30fps)

• Playback:

  1/4/9/16

• Search Mode:

  Time /Date, Alarm, MD and Exact Search (accurate to second)

• Backup Mode:

  USB Device/Network

• Perimeter Protection
• Performance:

  12 channels, 10 IVS for each channel

• Object classification:

  Human/Vehicle secondary recognition for tripwire and intrusion

• AI Search:

  Search by target classification (Human, Vehicle)

• AI Functions:

  Face recognition , Perimeter protection , Metadata , People counting , Heat map , License plate recognition , SMD Plus (detection of vehicle/human) , Face detection

• Perimeter protection by recorder:

  12 channels, 10 IVS rules per channel (SMD Plus)

• Face recognition by recorder:

  4 канала за разпознаване на лица по видео поток / 16 канала за рапознаване на лица по снимка (с FD камера)

• Face Recognition
• Face Recognition:

  Yes

• Performance:

  Max 16 face pictures/sec processing (modeling and comparing)

• Stranger Mode:

  Detect strangers' faces(not in device's face database).Similarity threshold can be set manually.

• AI Search:

  Up to 8 target face images search at same time, similarity threshold can be set for each target face image.

• Database Management:

  Up to 20 face databases with 200,000 face images in total. Name, gender, birthday, nationality, address, ID information can be added to each face picture.

• Database Application:

  Each database can be applied to video channels independently.

• Metadata
• Face:

  Gender, age, glasses, beard, mouth mask, expression.

• Vehicle:

  Plate No., type, color, vehicle type, logo, plate color, ornament, calling, seatbelt, region.

• Human Body:

  Top; top color; bottom; bottom color; hat; bag; gender; age; umbrella

• Non-motor Vehicle:

  Type, color, number of passengers, helmet.

• AI Search:

  Support search target video by metadata

• Artificial Intelligence
• Motion Detection:

  Yes

• Smart Motion Detection Technology:

  Yes

• SMD Plus Performance:

  12 channels, Search by target classification (human, vehicle)

• Video Detection:

  Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Scene Change

• Trigger Events:

  Buzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc.

• Certification
• Certifications:

  CE (EN55032, EN55024, EN50130-4, EN62368-1) FCC (Part 15 Subpart B, ANSI C63.4-2014)

• Third-party Support:

  Panasonic, Sony, Samsung, Axis, Pelco, Arecont, Onvif, Canon and more

• Port
• Alarm Input:

  4 channels

• Video Port:

  1 х HDMI, 1 x VGA

• USB:

  1 Rear USB 3.0 , 1 Front USB 2.0

• RS232:

  1 Port, for PC Communication and Keyboard

• RS485:

  1 Port, for PTZ Control

• Resolution:

  HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720

• Multi-screen Display:

  1/4/8/9/16

• Two-way Talk:

  1 Channel Input, 1 Channel Output, RCA

• Relay Output:

  2

• Network
• Ethernet:

  1 RJ-45 Port (10/100/1000Mbps)

• PoE:

  16 ports (IEEE802.3af/at) 1-8 ports support ePoE & EoC

• Mobile App:

  Android, iOS

• Network Function:

  HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS, etc.), P2P

• Interoperability:

  ONVIF 2.4, SDK, CGI

• Max. User Access:

  128

• Web Viewer:

  Chrome; IE9 or later; Firefox

• Power
• Power Supply:

  AC100V-240V, 50/60Hz

• Power Consumption:

  NVR: <15.6W (Without HDD) PoE: Max 25.5W for single port 130W total rated power

• Fan:

  Smart fan, automatically adjust running speed

• Environment
• Operating Temperature:

  - 10°C to + 55°C

• Storage Temperature:

  0°C to +40°C

• Construction
• Dimensions:

  375.0 mm × 327.4 mm × 53.0 mm

• Net Weight:

  2.7 kg

• Gross Weight:

  4 kg

• Shipping package - DAHUA NVR5216-16P-I/L
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  5.3 x 37.5 x 32.74; Weight: 4 kg.;
