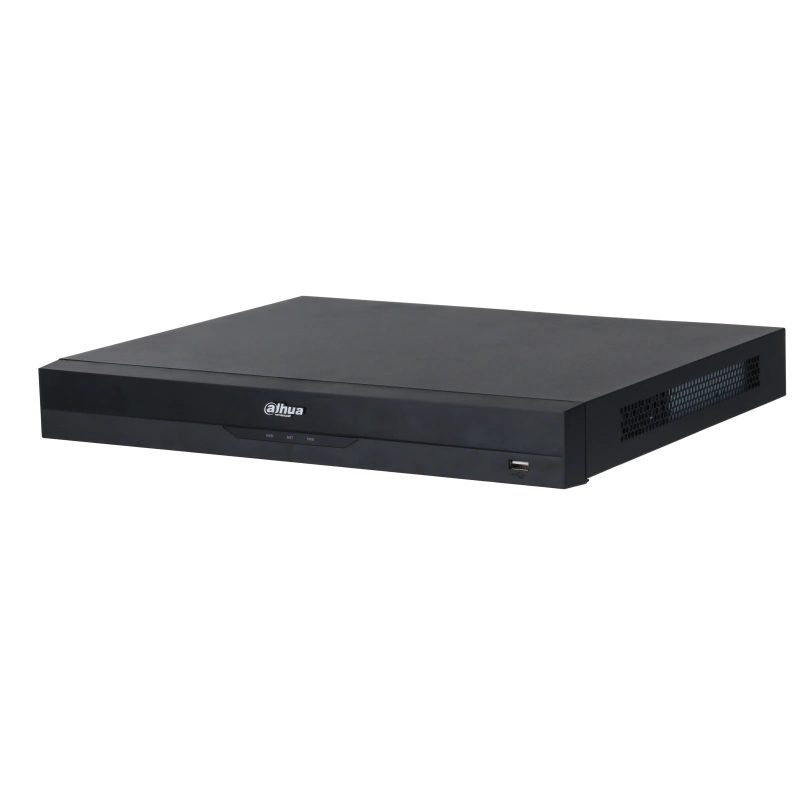

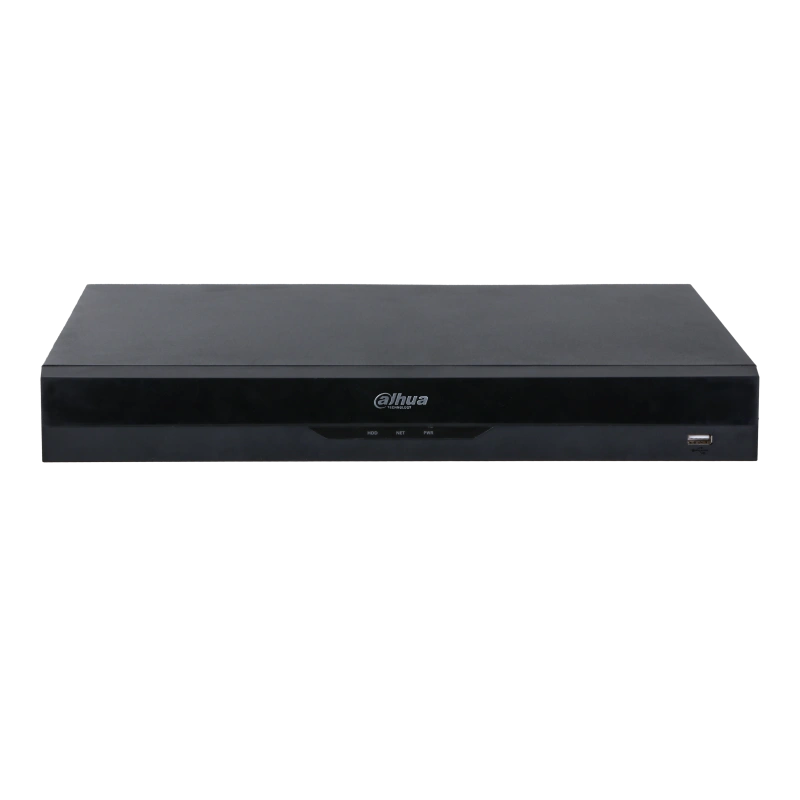

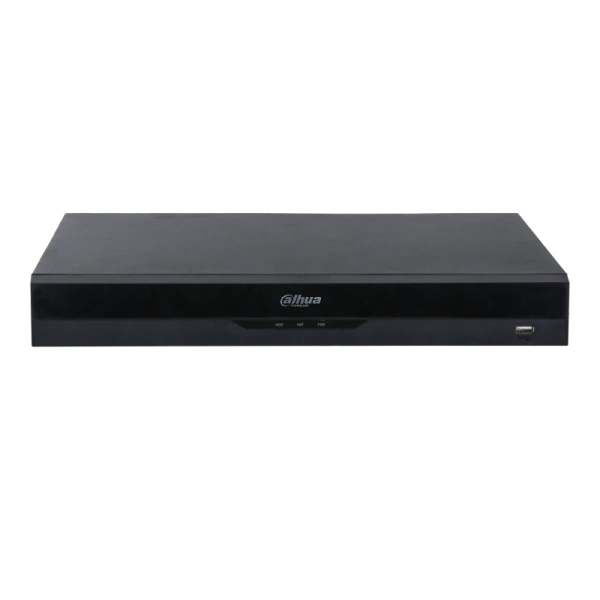

Dahua NVR5208-8P-EI 8CH 2HDD 1U Network Video Recorder

Technical information

• General
• Series:

  WizSense

• Main Processor:

  Embedded Processor

• Operating System:

  Embedded LINUX

• IP Camera Input:

  8 Channel

• Resolution:

  32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 720p; 960p; D1; CIF; QCIF

• Max rezolution of the cameras:

  32 MP

• Storage:

  2 SATA Port, up to 20TB capacity

• Camera
• Lens
• Video
• Video Compression:

  H.265; H.264; MJPEG

• Smart Codec:

  Smart H.265+/ Smart H.264+

• Bandwidth:

  AI disabled: 384 Mbps incoming, 384 Mbps recording and 384 Mbps outgoing AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing

• Decoding Capacity:

  AI disabled: 2-channel 32 MP@25 fps; 2-channel 24 MP@25 fps; 4-channel 16 MP@30 fps; 5-channel 12 MP@30 fps; 8-channel 8 MP@30 fps AI enabled: 1-channel 32 MP@25 fps; 1-channel 24 MP@25 fps; 2-channel 16 MP@30 fps; 4-channel 12 MP@30 fps;6-channel 8 MP@30 fps; 8-channel 6 MP@30 fps; 8-channel 5 MP@30 fps

• Record Mode:

  General, motion detection; intelligent; alarm; POS

• Playback:

  Up to 8 channels playback

• Playback Function:

  Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)

• Backup Mode:

  USB Device/Network

• Perimeter Protection
• Performance:

  4 channel, 10 IVS rules for each channel

• AI Functions:

  AcuPick , Face detection , Face recognition , Perimeter protection , Metadata , License plate recognition , Heat map , Intrusion , Tripwire , Stereo Analysis , SMD Plus (detection of vehicle/human) , People counting

• Perimeter protection by camera:

  8 channels

• Perimeter protection by recorder:

  4 channels, 10 IVS rules for each channel

• SMD Plus by camera:

  8 channels

• SMD Plus by recorder:

  8 channels

• Face recognition by camera:

  8 channels

• Face recognition by recorder:

  8-channel FD (by camera) + FR (by recorder), image stream: 16 face images/s, 2-channel FD (by recorder) + FR (by recorder), video stream: 12 face images/s

• Face Detection by camera:

  8 channels

• Face Detection by recorder:

  2 channels

• License plates recofnition by camera (ANPR):

  8 channels

• Video metadata by camera:

  8 channels

• Face Recognition
• Face Recognition:

  Yes

• Performance:

  8-channel FD (by camera) + FR (by recorder), image stream: 16 face images/s, 2-channel FD (by recorder) + FR (by recorder), video stream: 12 face images/s

• Database Management:

  Up to 20 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image.

• Metadata
• Face:

  Gender, age, expressions, glasses, face mask and beard.

• Vehicle:

  License plate, plate color, vehicle body, vehicle model, vehicle logo, calling, seatbelt, vehicle interior, vehicle registration location.

• Human Body:

  Tops style,tops color,bottom style,bottom color, hat, bag, gender, age, umbrella.

• Non-motor Vehicle:

  Vehicle model, vehicle color, number of persons, helmet.

• Artificial Intelligence
• Face Recogntion:

  Yes

• Smart Motion Detection Technology:

  Yes

• Alarm Prompt:

  Motion detection; local alarm; alarm box; camera external alarm; network alarm; scene changing; PIR alarm; thermal alarm

• Certification
• Certifications:

  FCC: 47 CFR FCC Part15, SubpartB, Class A; CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014; CE-LVD: EN 62368-1:2014

• Third-party Support:

  ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha

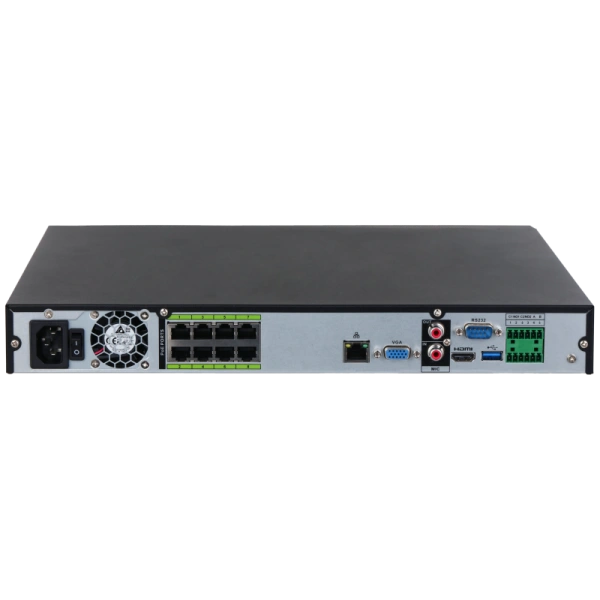

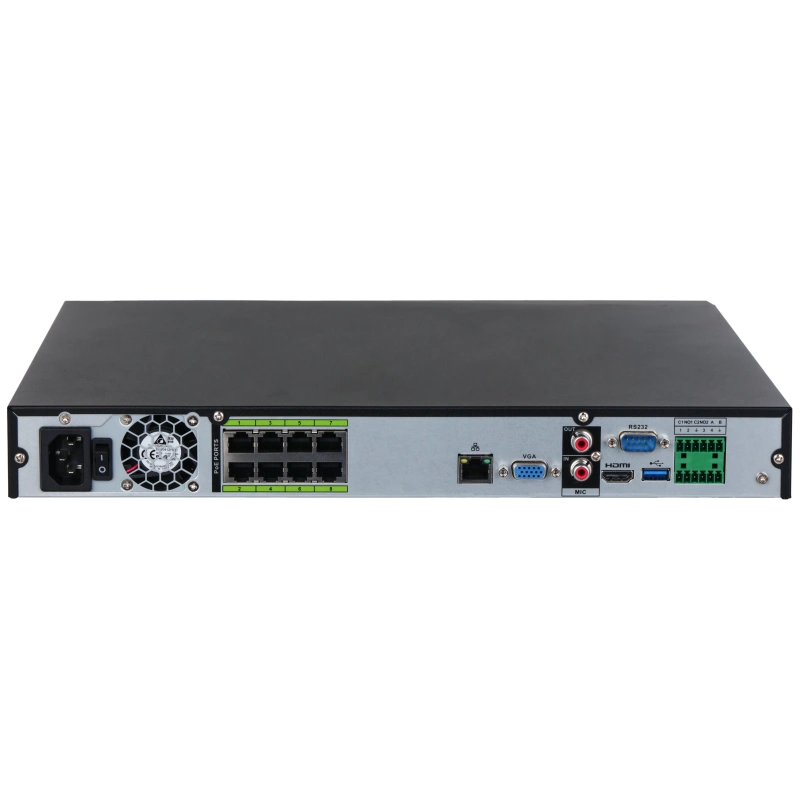

• Port
• Audio Input:

  1-channel (RCA port)

• Audio Output:

  1-channel (RCA port)

• Alarm I/O:

  4/2

• Video Port:

  2 x HDMI, 2x VGA

• USB:

  1 front USB 2.0 port, 1 rear USB 3.0 port

• RS232:

  1

• RS485:

  1

• Resolution:

  VGA:1920 × 1080, 1280 × 1024, 1280 × 720 HDMI:3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720

• Multi-screen Display:

  1st Screen: 1/4/8/9; 2nd Screen: 1/4/8/9

• Audio Compression:

  G.711a; G.711u; PCM; G726

• Network
• PoE:

  8 ports, 10/100 Mbps, IEEE 802.3 af/at, 1-8 ports support ePoE

• Ethernet:

  1 RJ-45 Port (10/100/1000Mbps)

• Mobile App:

  Android, iOS

• Network Function:

  HTTP; HTTPS; TCP/IP; IPv4; UDP; NTP; DHCP; DNS; SMTP; UPnP; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration; iSCSI

• Interoperability:

  ONVIF 23.12(Profile T; Profile S; Profile G); CGI; SDK

• Web Viewer:

  IE, Chrome, Firefox, Safari

• Power
• Power Supply:

  100–240 VAC, 47-63 Hz

• Power Consumption:

  NVR: <10W (Without HDD) PoE: Max 25.5W for single port, 130W total rated power

• Environment
• Operating Temperature:

  - 10°C to + 55°C

• Operating RH:

  10% to 93% RH (no condensation)

• Storage Temperature:

  - 20°C to + 60°C

• Construction
• Dimensions:

  375.0 mm × 329.4 mm x 53.0mm

• Net Weight:

  2.57 kg

• Gross Weight:

  3.8 kg

• Shipping package - DAHUA NVR5208-8P-EI
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  14.7 x 42.5 x 45.1; Weight: 3.8 kg.;
