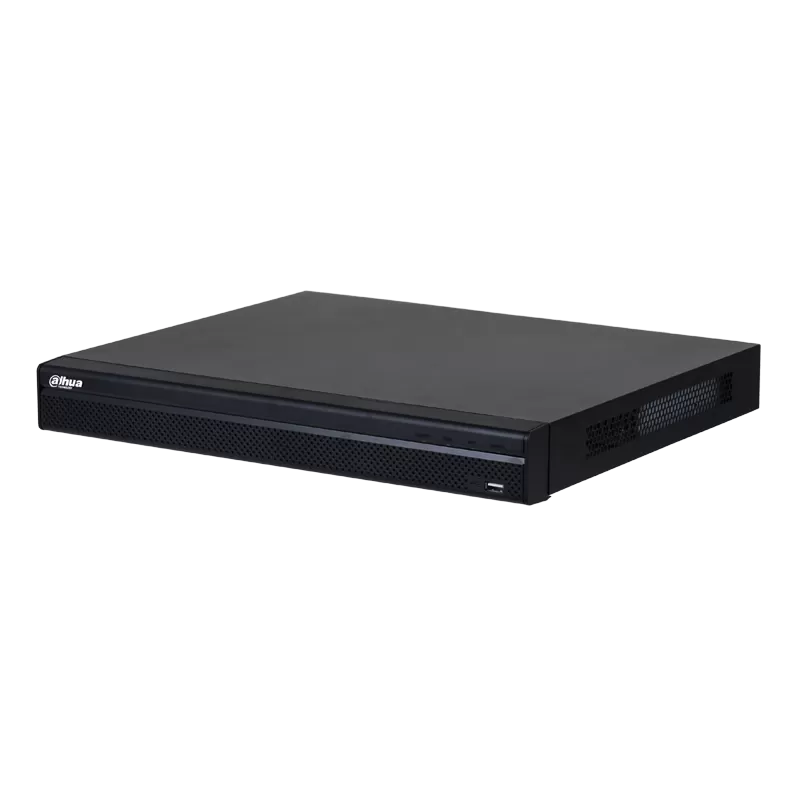

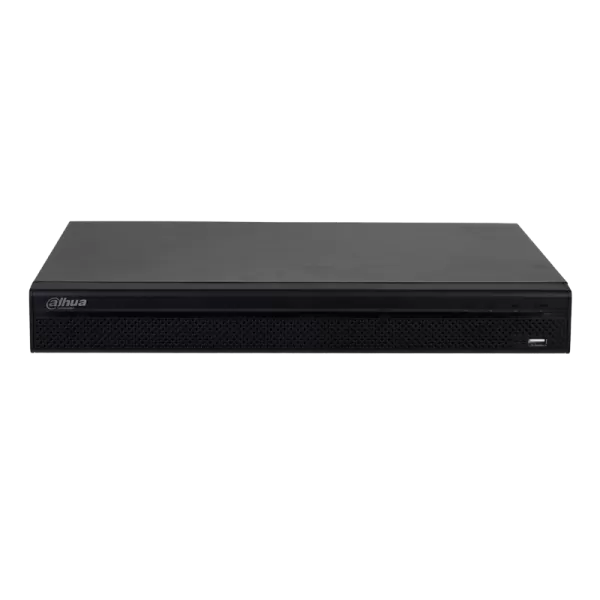

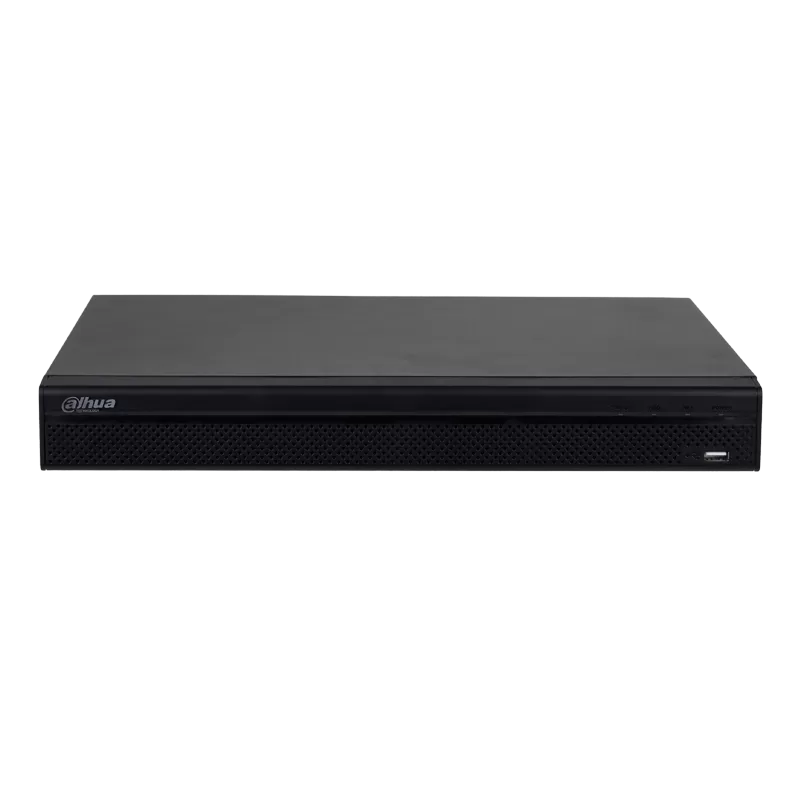

Dahua NVR4216-16P-4KS2+L 16 Channel 1U 2HDDs 16PoE Network Video Recorder

Technical information

• General
• Series:

  Lite

• Main Processor:

  Embedded Processor

• Operating System:

  Embedded LINUX

• IP Camera Input:

  16 channel

• Resolution:

  8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 720p; D1

• Max rezolution of the cameras:

  8 MP

• Storage:

  2 SATA III Ports, Up to 10 TB capacity for each HDD

• Camera
• Lens
• Video
• Video Compression:

  Smart H.265/H.265/Smart H.264/H.264/MJPEG

• Bandwidth:

  Access: 160 Mbps; Storage: 160 Mbps; Forward: 64 Mbps

• Decoding Capacity:

  8 × 1080p@30 fps

• Record Mode:

  Manual record; alarm recording; SMD recording; smart recording

• Playback:

  Up to 16 channels playback

• Playback Function:

  Play, Pause; Stop; Fast forward; Fast backward; Rewind; Play by frame; Full screen; Backup (cut/file); Partially enlarge; Audio on/off

• Backup Mode:

  USB device

• Perimeter Protection
• Performance:

  8 channels

• AI Search:

  Search for pictures by channel, time and event type

• AI Functions:

  Perimeter protection , Face detection , SMD Plus (detection of vehicle/human) , People counting

• Perimeter protection by camera:

  8 channels

• SMD Plus by camera:

  12 channels

• Face recognition by camera:

  4 channels

• Face Recognition
• Performance:

  4 channels, 6 attributes: Gender; age; glasses; expression; mouth mask; beard

• AI Search:

  Search for pictures by channel, time and face attributes

• Metadata
• Artificial Intelligence
• Motion Detection:

  Yes

• Smart Motion Detection Technology:

  Yes

• SMD Plus Performance:

  12 channels, Search by target classification (human, vehicle)

• Alarm Prompt:

  Motion detection, privacy masking, video loss, scene changing, PIR alarm, IPC external alarm

• Certification
• Certifications:

  CE: EN62368-1; EN55032,EN55024, EN55035, EN61000-3-2, EN61000-3-3 EN50130-4 FCC: Part 15 Subpart B

• Third-party Support:

  ONVIF; RTSP

• Port
• Audio Input:

  1-channel (RCA port)

• Audio Output:

  1-channel (RCA port)

• Alarm I/O:

  4/2

• Video Port:

  1 х HDMI, 1 x VGA

• USB:

  2 USB 2.0

• Multi-screen Display:

  1/4/8/9/16

• Audio Compression:

  PCM/G711A/G711U/G726/AAC

• Network
• PoE:

  16

• Ethernet:

  1 RJ-45 Port (10/100/1000Mbps)

• Mobile App:

  Android, iOS

• Network Function:

  HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); P2P; auto register

• Interoperability:

  ONVIF(profile T/S/G); CGI; SDK

• Web Viewer:

  Chrome; IE9 or later; Firefox

• Power
• Power Supply:

  100 V–240 V, 47 Hz–63 HZ, 3.5 A

• Power Consumption:

  NVR: < 10W (without HDD) PoE: Max 25.5W for single port, 117W in total

• Environment
• Operating Temperature:

  - 10°C to + 55°C

• Operating RH:

  10%–93%

• Storage Temperature:

  0°C to +40°C

• Construction
• Dimensions:

  375 mm × 327.4 mm × 53.8 mm

• Net Weight:

  2.63 kg

• Gross Weight:

  3.91 kg

• Shipping package - DAHUA NVR4216-16P-4KS2/L
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  42.1 x 44.9 x 17; Weight: 3.91 kg.;
