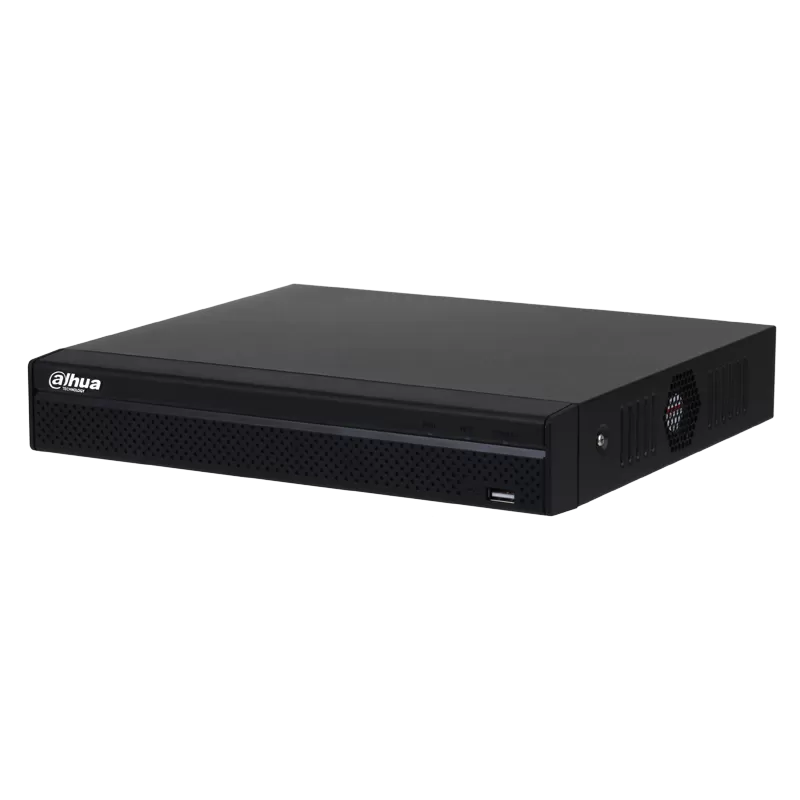

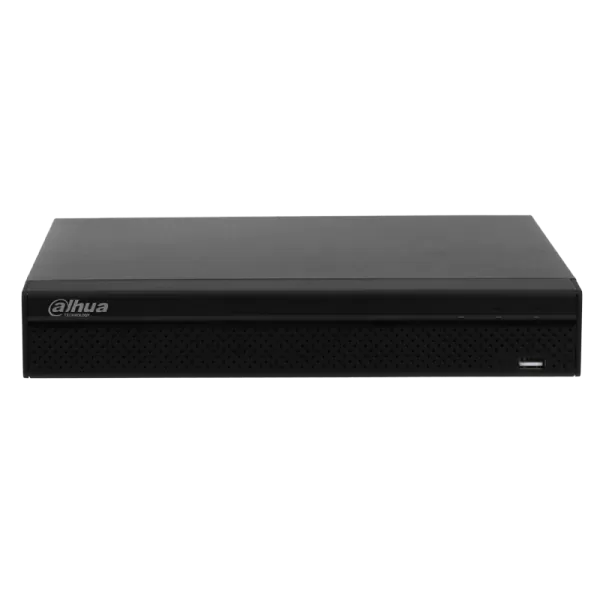

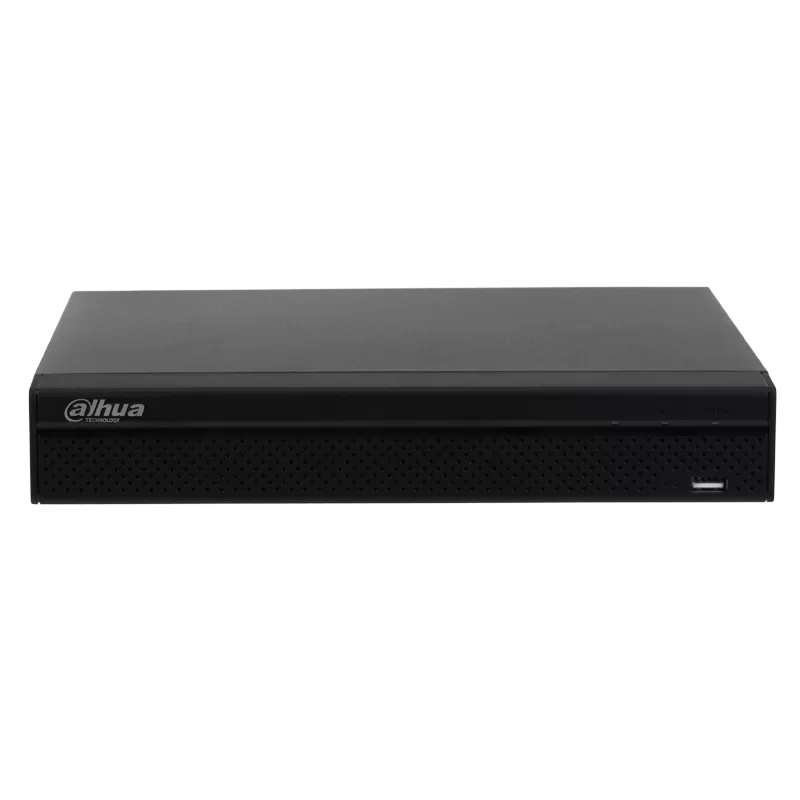

Dahua NVR4108HS-8P-4KS2+L 8 Channel Compact 1HDD 1U 8PoE Network Video Recorder

Technical information

• General
• Series:

  Lite

• Main Processor:

  Embedded Processor

• Operating System:

  Embedded LINUX

• IP Camera Input:

  8 Channel

• Resolution:

  8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 720P, D1

• Max rezolution of the cameras:

  8 MP

• Storage:

  1 SATA III port, up to 10 TB for a single HDD

• Camera
• Lens
• Video
• Video Compression:

  Smart H.265/H.265/Smart H.264/H.264/MJPEG

• Bandwidth:

  Access: 80 Mbps; Storage: 80 Mbps; Forward: 60 Mbps

• Decoding Capacity:

  8 × 1080p@30 fps

• Record Mode:

  Manual record; alarm recording; SMD recording; smart recording

• Playback:

  Up to 8 channels playback

• Playback Function:

  Play, Pause; Stop; Fast forward; Fast backward; Rewind; Play by frame; Full screen; Backup (cut/file); Partially enlarge; Audio on/off

• Backup Mode:

  USB device

• Perimeter Protection
• Performance:

  8 channels

• AI Search:

  Search for pictures by channel, time and event type

• AI Functions:

  Perimeter protection , Face detection , SMD Plus (detection of vehicle/human)

• Perimeter protection by camera:

  8 channels

• SMD Plus by camera:

  8 channels

• Face recognition by camera:

  4 channels

• Face Recognition
• Performance:

  4 channels, 6 attributes: Gender; age; glasses; expression; mouth mask; beard

• AI Search:

  Search for pictures by channel, time and face attributes

• Metadata
• Artificial Intelligence
• Motion Detection:

  Yes

• Smart Motion Detection Technology:

  Yes

• SMD Plus Performance:

  8 channels, Search by target classification (human, vehicle)

• Alarm Prompt:

  Motion detection, privacy masking, video loss, scene changing, PIR alarm, IPC external alarm

• Certification
• Certifications:

  CE: EN62368-1; EN55032,EN55024, EN55035, EN61000-3-2, EN61000-3-3 EN50130-4 FCC: Part 15 Subpart B

• Third-party Support:

  ONVIF; RTSP

• Port
• Audio Input:

  1-channel (RCA port)

• Audio Output:

  1-channel (RCA port)

• Video Port:

  1 х HDMI, 1 x VGA

• USB:

  2 USB 2.0

• Multi-screen Display:

  1/4/8/9

• Audio Compression:

  PCM/G711A/G711U/G726/AAC

• Network
• PoE:

  8

• Ethernet:

  1 RJ-45 Ports (10/100 Mbps)

• Mobile App:

  Android, iOS

• Network Function:

  HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); P2P; auto register

• Interoperability:

  ONVIF (profile T/S/G); CGI; SDK

• Web Viewer:

  Chrome; IE9 or later; Firefox

• Power
• Power Supply:

  DC48 V/53 V, 2A/1.8 A

• Power Consumption:

  NVR: < 10W (without HDD) PoE: Max 25.5W for single port, 72W in total

• Environment
• Operating Temperature:

  - 10°C to + 55°C

• Operating RH:

  10%–93%

• Storage Temperature:

  0°C to +40°C

• Construction
• Dimensions:

  260 mm × 232.5 mm × 50.3 mm

• Net Weight:

  0.92 kg

• Gross Weight:

  2.07 kg

• Shipping package - DAHUA NVR4108HS-8P-4KS2/L
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  30.7 x 37.3 x 11.7; Weight: 2.07 kg.;
