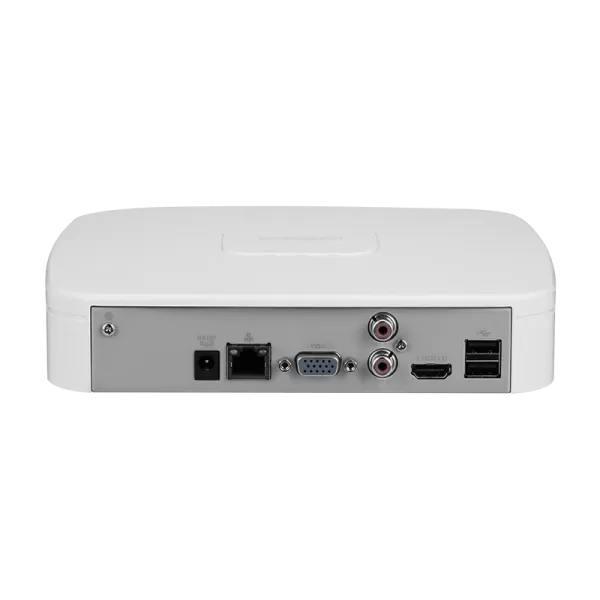

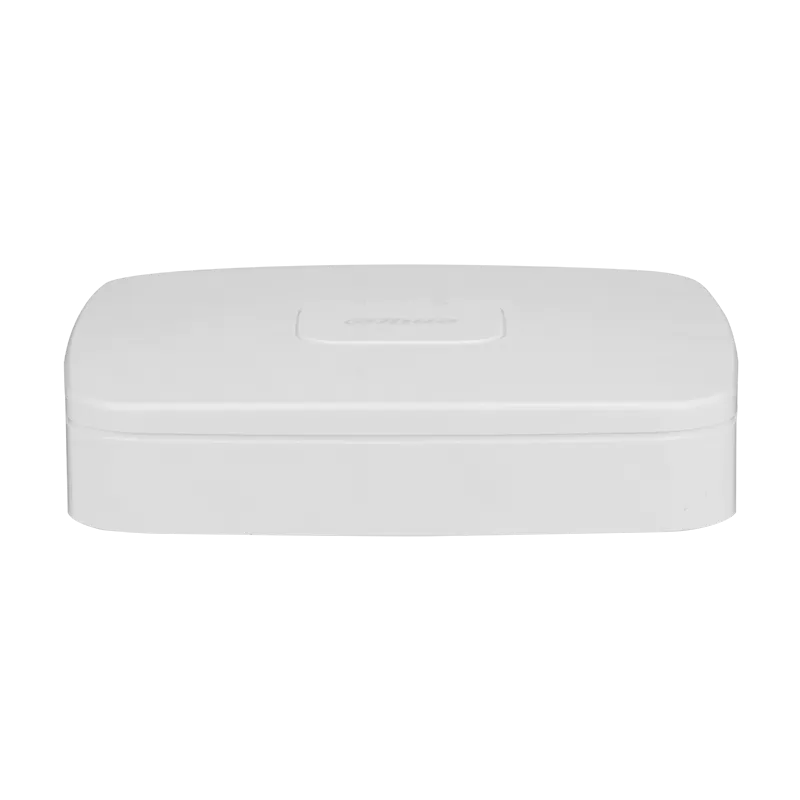

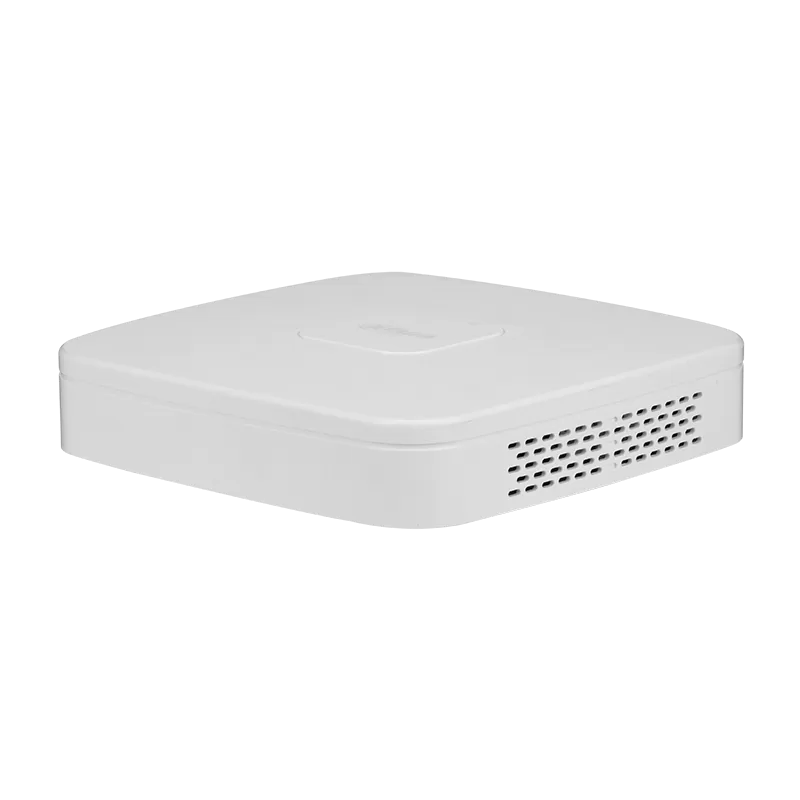

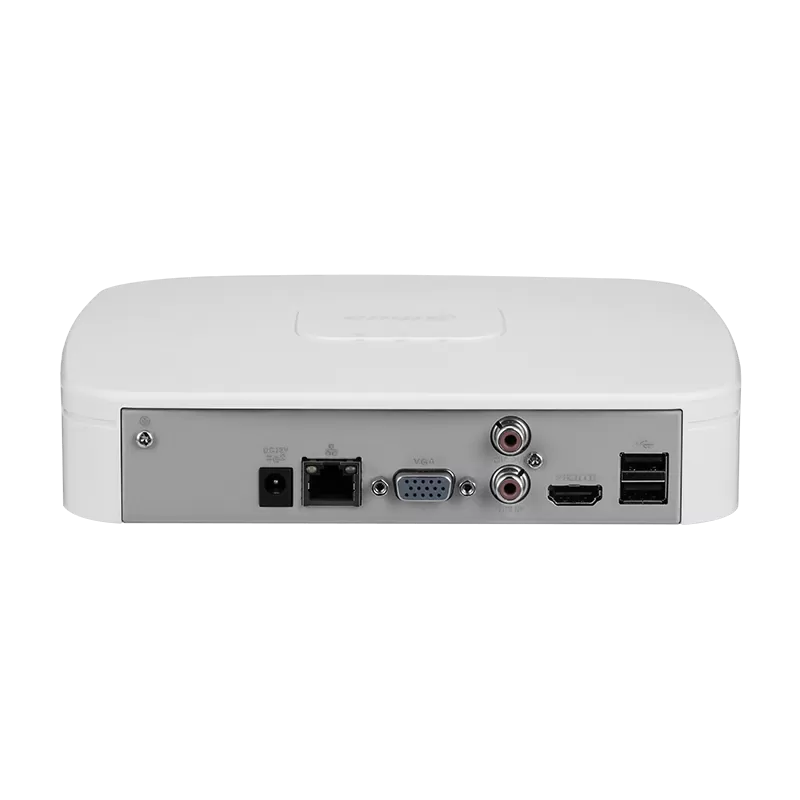

Dahua NVR2108-I2 8 Channel Smart 1U 1HDD WizSense Network Video Recorder

Technical information

• General
• Series:

  WizSense

• Main Processor:

  Embedded Processor

• Operating System:

  Embedded LINUX

• IP Camera Input:

  8 Channel

• Resolution:

  12MP; 8MP; 5MP; 4MP; 3MP; 2MP; 720p; D1

• Max rezolution of the cameras:

  12 MP

• Storage:

  1 SATA III port, up to 10 TB for a single HDD

• Camera
• Lens
• Video
• Video Compression:

  Smart H.265+/H.265/Smart H.264+/H.264/MJPEG

• Bandwidth:

  80 Mbps for access, 80 Mbps for storage and 60 Mbps for forwarding

• Decoding Capacity:

  AI disabled: 1-channel 12MP@30 fps; 1-channel 8MP@30 fps; 2-channel 5MP@30 fps; 3-channel 4MP@30 fps; 6-channel 1080p@30 fps AI enabled: 1-channel 8MP@30 fps; 1-channel 5MP@30 fps; 2-channel 4MP@30 fps; 4-channel 1080p@30 fps

• Record Mode:

  Manual/Alarm/Motion detection/Schedule

• Playback:

  Up to 8 channels playback

• Playback Function:

  Play, Pause; Stop; Fast forward; Fast backward; Rewind; Play by frame; Full screen; Backup (cut/file); Partially enlarge; Audio on/off

• Backup Mode:

  USB device

• Perimeter Protection
• AI Functions:

  Perimeter protection , Face detection , Face recognition , SMD Plus (detection of vehicle/human)

• Perimeter protection by camera:

  4 channels

• Perimeter protection by recorder:

  1

• SMD Plus by camera:

  6 channels

• Face recognition by camera:

  5 channels

• Face recognition by recorder:

  1

• Face Recognition
• Face Recognition:

  Yes

• Metadata
• Artificial Intelligence
• Motion Detection:

  Yes

• Face Recogntion:

  Yes

• Smart Motion Detection Technology:

  Yes

• Alarm Prompt:

  Motion detection, privacy masking, video loss, PIR alarm, IPC alarm

• Certification
• Certifications:

  FCC:47 CFR FCC Part15,SubpartB,Class A, CE-EMC:EN 55032:2015,Class A;EN IEC 61000-3-2:2019;EN 61000-3-3:2013+A1:2019;EN 55024:2010+A1:2015;EN 55035:2017;EN 50130-4:2011+A1:2014, CE-LVD:EN 62368-1:2014+A11:2017

• Third-party Support:

  Onvif

• Port
• Audio Input:

  1-channel (RCA port)

• Audio Output:

  1-channel (RCA port)

• Video Port:

  1 х HDMI, 1 x VGA

• USB:

  2 rear USB 2.0 ports

• Multi-screen Display:

  1/4/8/9

• Audio Compression:

  PCM; G.711A; G.711U; G.726

• Network
• Ethernet:

  1 RJ-45 Ports (10/100 Mbps)

• Mobile App:

  Android, iOS

• Network Function:

  HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); P2P;Auto Registration

• Interoperability:

  ONVIF (profile T/S/G); CGI; SDK

• Web Viewer:

  Chrome; IE9 or later; Firefox

• Power
• Power Supply:

  DC 12V/1.5A

• Power Consumption:

  < 10W (Without HDD)

• Environment
• Operating Temperature:

  - 10°C to + 55°C

• Operating RH:

  10%–93%

• Storage Temperature:

  0°C to +40°C

• Construction
• Dimensions:

  204.6 mm × 206.4 mm × 48.1 mm

• Net Weight:

  0.45 kg

• Gross Weight:

  1.07 kg

• Shipping package - DAHUA NVR2108-I2
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  9.6 x 36.4 x 26.1; Weight: 1.07 kg.;
