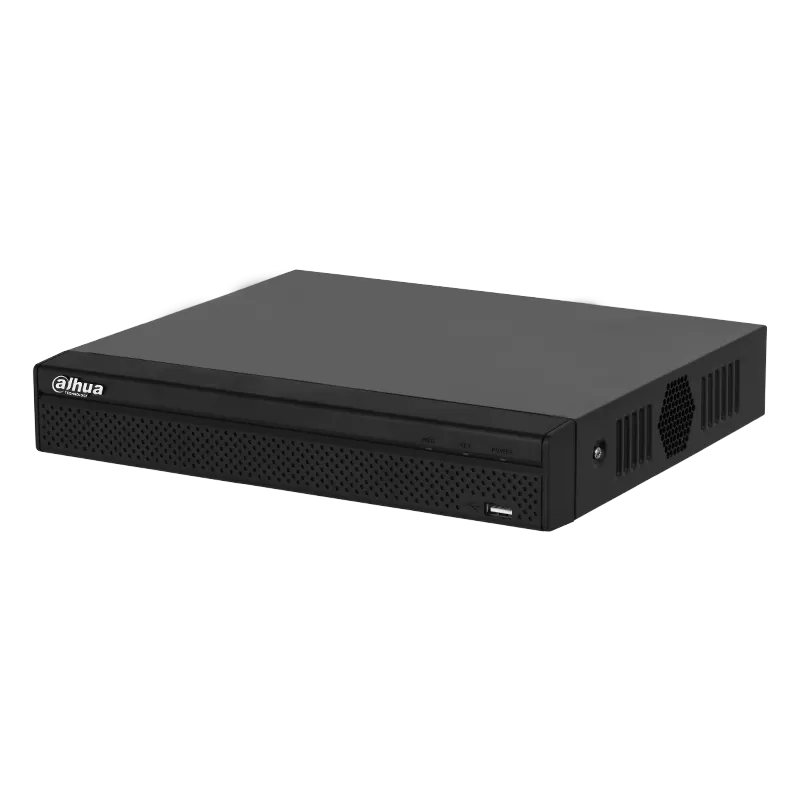

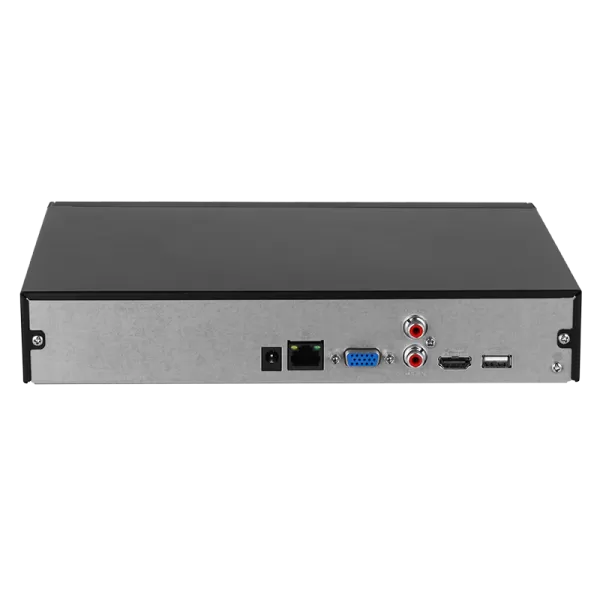

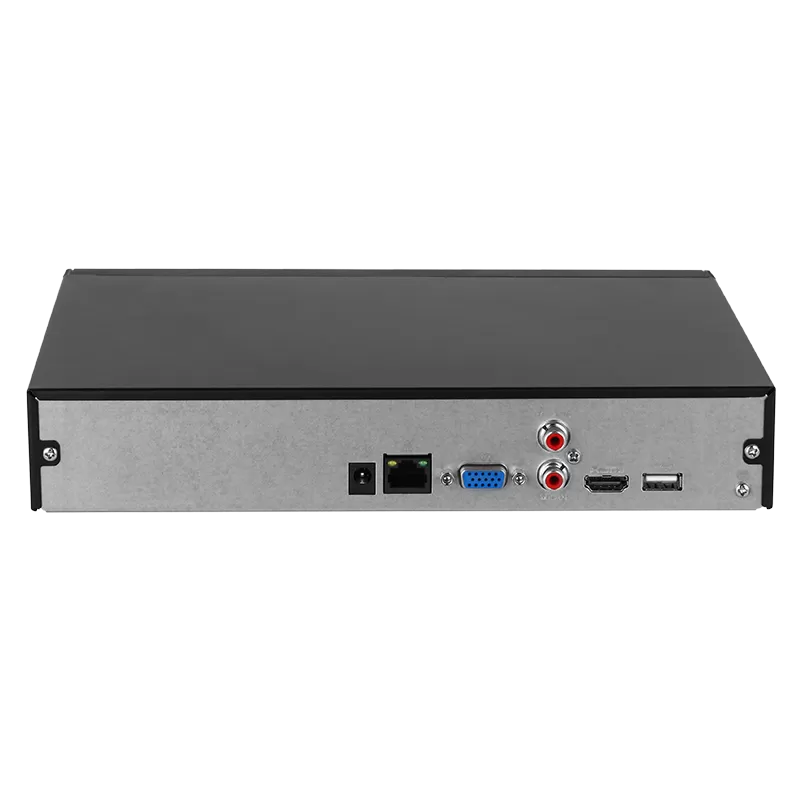

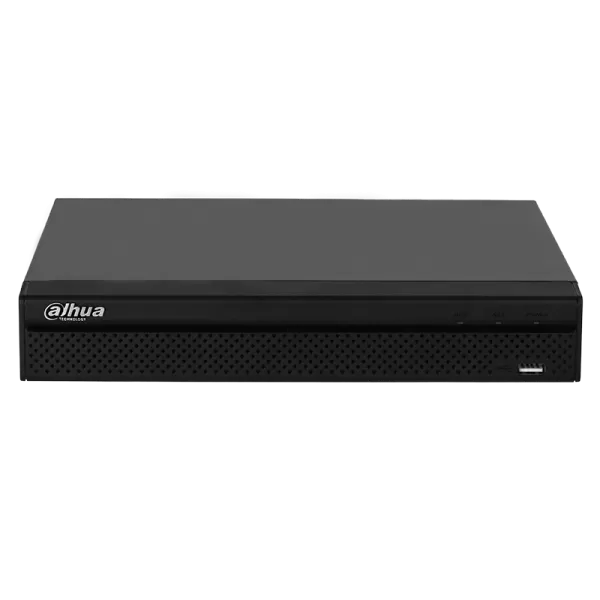

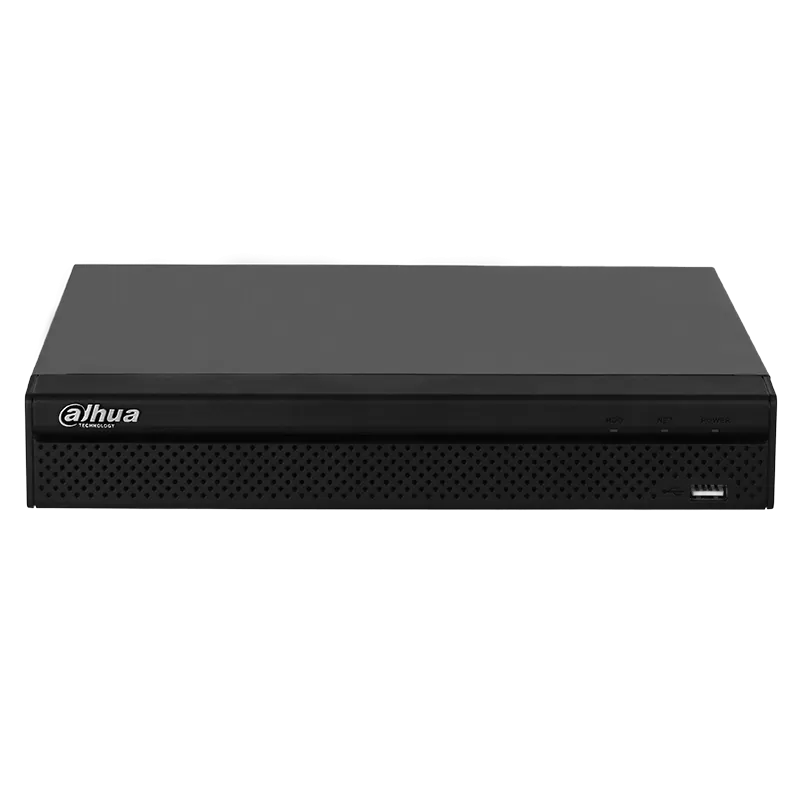

Dahua NVR2108HS-S3 8 Channel Compact 1U 1HDD Network Video Recorder

Technical information

• General
• Series:

  Lite

• Main Processor:

  Embedded Processor

• Operating System:

  Embedded LINUX

• IP Camera Input:

  8 Channel

• Resolution:

  12MP; 8MP; 5MP; 4MP; 3MP; 2MP; 720p; D1

• Max rezolution of the cameras:

  12 MP

• Storage:

  1 SATA Port, up to 16TB capacity

• Camera
• Lens
• Video
• Video Compression:

  Smart H.265; H.265; Smart H.264; H.264

• Bandwidth:

  80 Mbps for access, 80 Mbps for storage and 60 Mbps for forwarding

• Decoding Capacity:

  1-channel 12MP@30 fps; 1-channel 8MP@30 fps; 2-channel 5MP@30 fps; 3-channel 4MP@30 fps; 6-channel 1080p@30 fps

• Record Mode:

  Manual record; alarm recordings; motion detection recordings; scheduled recordings

• Playback:

  Up to 8 channels playback

• Playback Function:

  Play, Pause; Stop; Fast forward; Fast backward; Rewind; Play by frame; Full screen; Backup (cut/file); Partially enlarge; Audio on/off

• Backup Mode:

  USB device

• Perimeter Protection
• Performance:

  4 channels

• AI Functions:

  SMD Plus (detection of vehicle/human)

• Perimeter protection by camera:

  4 channels

• SMD Plus by camera:

  4 channels

• Face Recognition
• Metadata
• Artificial Intelligence
• Smart Motion Detection Technology:

  Yes

• SMD Plus Performance:

  4-channel SMD Plus (AI by camera), secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change

• Certification
• Certifications:

  CE: EN62368-1; EN55032,EN55024, EN55035, EN61000-3-2, EN61000-3-3 EN50130-4 FCC: Part 15 Subpart B

• Third-party Support:

  Onvif

• Port
• Audio Input:

  1

• Audio Output:

  1

• Video Port:

  1 х HDMI, 1 x VGA

• USB:

  1 Rear USB2.0, 1 Front USB2.0

• Multi-screen Display:

  1/4/8/9

• Audio Compression:

  G.711a; G.711Mu; G.726; PCM

• Network
• Ethernet:

  1 RJ-45 Ports (10/100 Mbps)

• Mobile App:

  Android, iOS

• Network Function:

  HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); P2P;Auto Registration

• Interoperability:

  ONVIF (profile T/S/G); CGI; SDK

• Web Viewer:

  Chrome; IE9 or later; Firefox

• Power
• Power Supply:

  DC 12V/1.5A

• Power Consumption:

  < 10W (Without HDD)

• Environment
• Operating Temperature:

  - 10°C to + 55°C

• Operating RH:

  10%–93%

• Construction
• Dimensions:

  260 mm × 232.7 mm × 47.6 mm

• Net Weight:

  0.81 kg

• Gross Weight:

  1.33 kg

• Shipping package - DAHUA NVR2108HS-S3
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  8.9 x 33.3 x 31.5; Weight: 1.33 kg.;
