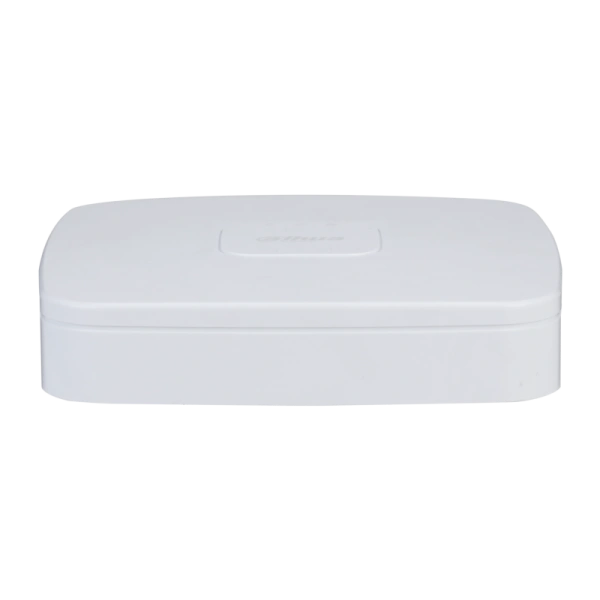

Dahua NVR2108-4KS3 8CH Smart 1U 1HDD Lite Network Video Recorder

Technical information

• General
• Series:

  Lite

• Main Processor:

  Embedded Processor

• Operating System:

  Embedded LINUX

• IP Camera Input:

  8 Channel

• Resolution:

  12 MP; 8 MP; 5 MP; 4 MP; 3 MP; 1080p; 720p; D1

• Max rezolution of the cameras:

  12 MP

• Storage:

  1 SATA Port, up to 20TB capacity

• Camera
• Lens
• Video
• Video Compression:

  H.265; H.264; MJPEG

• Smart Codec:

  Smart H.265+/ Smart H.264+

• Bandwidth:

  80 Mbps for access, 80 Mbps for storage and 60 Mbps for forwarding

• Record Mode:

  General, motion detection; intelligent; alarm

• Decoding Capacity:

  AI disabled: 1-channel 12 MP@30 fps; 1-channel 8 MP@30 fps; 2-channel 5 MP@30 fps; 3-channel 4 MP@30 fps; 6-channel 1080p@30 fps AI enabled: 1-channel 8 MP@30 fps; 1-channel 5 MP@30 fps; 2-channel 4 MP@30 fps; 4-channel 1080p@30 fps

• Playback:

  Up to 8 channels playback

• Playback Function:

  Instant playback, general playback, event playback, tag playback, smart playback

• Backup Mode:

  USB Device/Network

• Perimeter Protection
• AI Functions:

  Perimeter protection , SMD Plus (detection of vehicle/human)

• Perimeter protection by camera:

  4 channels

• SMD Plus by camera:

  4 channels

• Face Recognition
• Metadata
• Artificial Intelligence
• Motion Detection:

  Yes

• Smart Motion Detection Technology:

  Yes

• Alarm Prompt:

  Motion detection; camera external alarm; PIR alarm

• Certification
• Certifications:

  CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014

• Third-party Support:

  Onvif

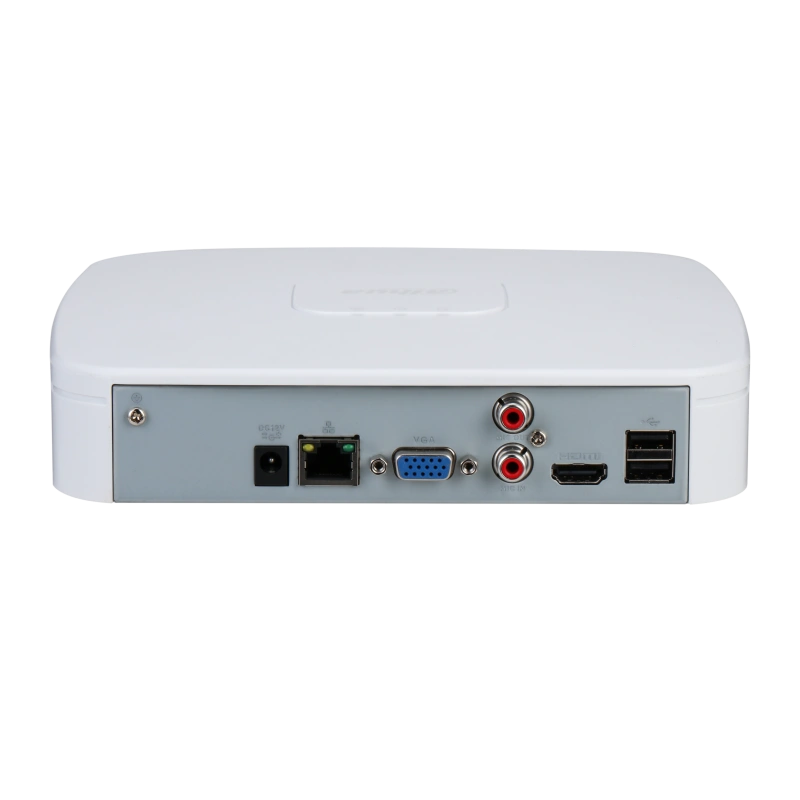

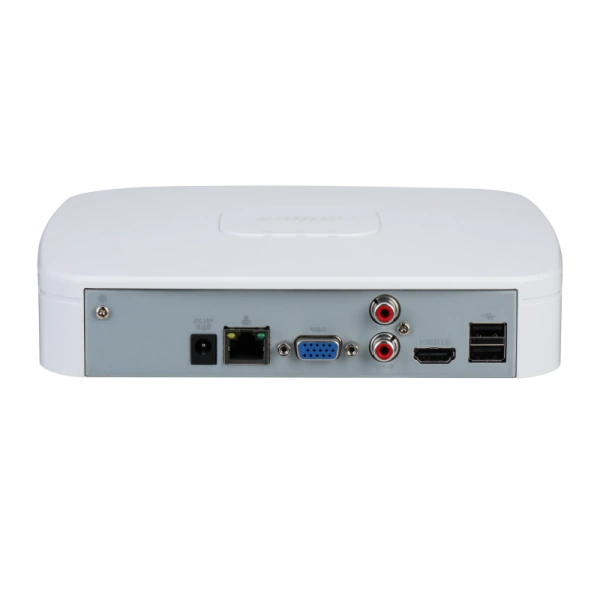

• Port
• Audio Input:

  1-channel (RCA port)

• Audio Output:

  1-channel (RCA port)

• Video Port:

  1 х HDMI, 1 x VGA

• USB:

  2 rear USB 2.0 ports

• Multi-screen Display:

  1/4/8/9

• Audio Compression:

  G.711a; G.711u; PCM; G726

• Network
• Ethernet:

  1 RJ-45 Ports (10/100 Mbps)

• Mobile App:

  Android, iOS

• Network Function:

  HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; IP Filter; DDNS; IP Search (Supports IP camera, DVR, NVS, etc.); P2P; Auto Registration

• Interoperability:

  ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK

• Web Viewer:

  IE, Chrome, Firefox, Safari

• Power
• Power Supply:

  DC 12V/1.5A

• Power Consumption:

  < 10W (Without HDD)

• Environment
• Operating Temperature:

  - 10°C to + 55°C

• Operating RH:

  10% to 93% RH (no condensation)

• Storage Temperature:

  - 20°C to + 60°C

• Construction
• Dimensions:

  204.6 mm × 206.4 mm × 45.6 mm

• Net Weight:

  0.45 kg

• Gross Weight:

  1.05 kg

• Shipping package - DAHUA NVR2108-4KS3
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  9.6 x 36.4 x 26.1; Weight: 1.05 kg.;
