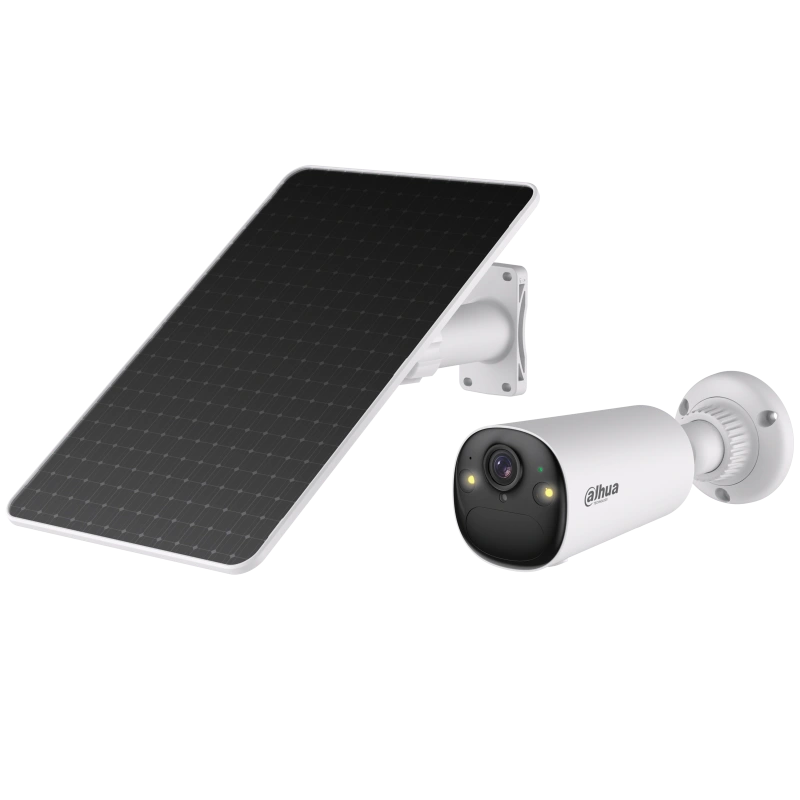

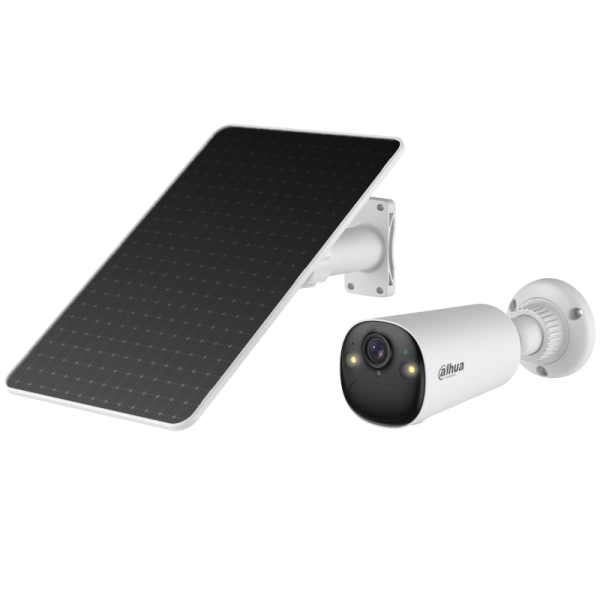

Dahua KIT/BF8CP-0210B-XL/M0508 8MP Wi-Fi Battery Bullet Network Camera Solar Monitoring System

Technical information

• General
• Case Type:

  Bullet

• Series:

  Wireless

• Color:

  White

• Image Sensor:

  1/2.82” 8 Megapixel progressive CMOS

• Resolution:

  4K (3840 × 2160)

• Resolution_surveillance:

  8 Mp

• Scanning System:

  Progressive

• Day/Night:

  Auto (ICR)/Color/B/W

• IR backlight to:

  15 meters

• IR LEDs:

  2

• Fill Light (White Light) Distance:

  20 m

• Fill Light Number:

  2

• Camera
• Pan/Tilt/Rotation:

  0°–360° (pan); -60°–0° (tilt); 0°–360° (rotation)

• Lens
• Lens type:

  Fixed

• Focal Length:

  2.1 mm

• Max Aperture:

  F1.6

• Angle of View:

  123° (H)

• Video
• Frame Rate:

  Main stream: 3840 × 2160@(1–15 fps); sub stream: 640 × 360@(1–15 fps)

• Video Compression:

  H.265

• Streaming Capability:

  2 streams

• Bit Rate:

  32 kbps – 4096 kbps

• WDR:

  Yes

• Perimeter Protection
• AI Functions:

  SMD Plus (detection of vehicle/human)

• Face Recognition
• Metadata
• Artificial Intelligence
• Motion Detection:

  Yes

• Smart Motion Detection Technology:

  Yes

• Certification
• Certifications:

  CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; CE-RED: Radio Equipment Directive 2014/53/EU

• Port
• Audio Compression:

  G.711a; G.711mu; PCM

• Built-in Microphone:

  Yes

• Built-in Speaker:

  Yes

• SD card:

  Yes

• SD card capacity:

  Micro SD up to 512GB

• Network
• Wi-Fi:

  IEEE 802.11a/b/g/n/ac/ax, 2.4 G/ 5 G

• Mobile App:

  Android, iOS

• Management Software:

  DMSS

• Power
• Power Supply:

  USB (5 VDC±5%, 2 A)

• Environment
• Operating Temperature:

  - 20°C to + 60°C

• Operating RH:

  < 95% RH (non-condensation)

• Protection:

  IP66

• Construction
• Casing:

  Plastic

• Dimensions:

  Φ65 mm × 186.5 mm

• Net Weight:

  0.33 kg

• Shipping package - DAHUA KIT/BF8CP-0210B-XL/M0508
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  8.6 x 21.7 x 32.5; Weight: 1.35 kg.;
