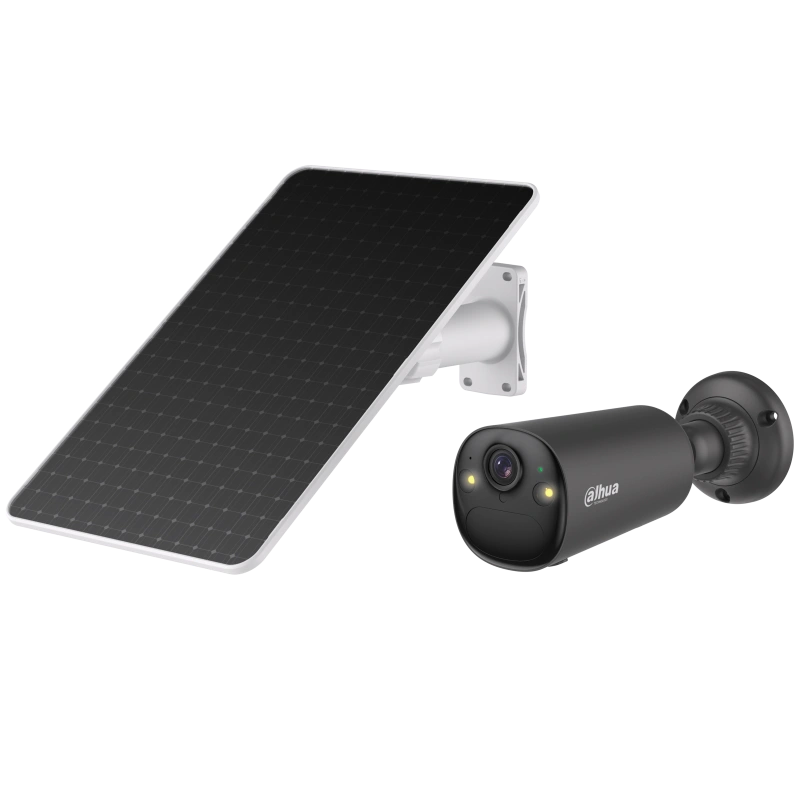

Dahua KIT/BF4CA-4G-0210B-XL/M0508

Technical information

• General
• Case Type:

  Bullet

• Series:

  Wireless

• Color:

  Black

• Image Sensor:

  1/3” 4 Megapixel progressive CMOS

• Resolution:

  4M (2560 × 1440)

• Resolution_surveillance:

  4 Mp

• Scanning System:

  Progressive

• Day/Night:

  Auto (ICR)/Color/B/W

• IR backlight to:

  15 meters

• IR LEDs:

  2

• Fill Light (White Light) Distance:

  20 m

• Fill Light Number:

  2

• Camera
• Pan/Tilt/Rotation:

  0°–360° (pan); -60°–0° (tilt); 0°–360° (rotation)

• Lens
• Lens type:

  Fixed

• Focal Length:

  2.1 mm

• Max Aperture:

  F1.6

• Angle of View:

  122.5° (H)

• Video
• Frame Rate:

  Main stream: 2560 × 1440@(1–15 fps) Sub stream: 640 × 360@(1–15 fps)

• Video Compression:

  H.265

• Streaming Capability:

  2 streams

• Bit Rate:

  H.265: 32 kbps–4096 kbps

• BLC:

  WDR

• WDR:

  Yes

• Perimeter Protection
• AI Functions:

  SMD Plus (detection of vehicle/human)

• Face Recognition
• Metadata
• Artificial Intelligence
• Motion Detection:

  Yes

• Smart Motion Detection Technology:

  Yes

• Certification
• Certifications:

  CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; CE-RED: Radio Equipment Directive 2014/53/EU

• Port
• Audio Compression:

  G.711a; G.711mu; PCM

• Built-in Microphone:

  Yes

• Built-in Speaker:

  Yes

• SD card:

  Yes

• SD card capacity:

  Micro SD up to 512GB

• Network
• Mobile network:

  Yes

• Mobile App:

  Android, iOS

• Management Software:

  DMSS

• Power
• Power Supply:

  5V DC USB Type-C, 8 W Solar panel, 32.4Wh Rechargeable battery

• Power Consumption:

  < 1.2W

• Environment
• Operating Temperature:

  - 20°C to + 60°C

• Operating RH:

  < 95% RH (non-condensation)

• Protection:

  IP66

• Construction
• Casing:

  Plastic

• Dimensions:

  Φ65 mm × 186.5 mm

• Net Weight:

  0.37 kg

• Shipping package - DAHUA KIT/BF4CA-4G-0210B-XL/M0508
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  8.6 x 21.7 x 32.5; Weight: 0.55 kg.;
