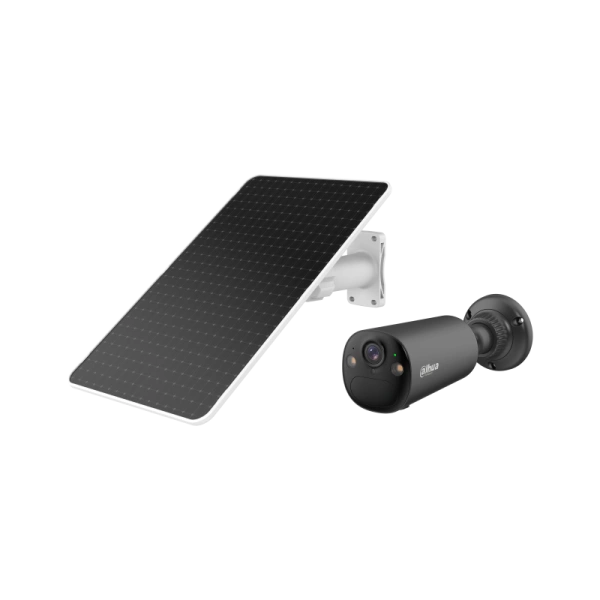

Dahua KIT/BF4CA-0210B-XL/M0508 4MP Wi-Fi Battery Bullet Network Camera Solar Monitoring System

Technical information

• General
• Case Type:

  Bullet

• Series:

  Wireless

• Color:

  Black

• Image Sensor:

  1/3” 4 Megapixel progressive CMOS

• RAM/ROM:

  128 MB/128 MB

• Resolution:

  4M (2560 × 1440)

• Resolution_surveillance:

  4 Mp

• Scanning System:

  Progressive

• Electronic Shutter Speed:

  Auto/Manual 1/3 s–1/100000 s

• Minimum Illumination:

  0.01 lux@F1.6 (Color, 30 IRE) 0.001 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on)

• Day/Night:

  Auto (ICR)/Color/B/W

• IR backlight to:

  15 meters

• IR On/Off Control:

  Auto / Manual

• IR LEDs:

  2

• Fill Light (White Light) Distance:

  20 m

• Fill Light On/Off Control:

  Auto / Manual

• Fill Light Number:

  2

• Camera
• IRE:

  30, 0Lux IR on

• S/N Ratio:

  > 48dB

• Pan/Tilt/Rotation:

  0°–360° (pan); -60°–0° (tilt); 0°–360° (rotation)

• Lens
• Lens type:

  Fixed

• Focal Length:

  2.1 mm

• Mount Type:

  M12

• Max Aperture:

  F1.6

• Angle of View:

  122.5° (H)

• Iris Type:

  Fixed aperture

• Close Focus Distance:

  0.8 m

• Video
• Frame Rate:

  Main stream: 2560 × 1440@(1–15 fps) Sub stream: 640 × 360@(1–15 fps)

• Video Compression:

  H.265

• Streaming Capability:

  2 streams

• Bit Rate:

  H.265: 32 kbps–4096 kbps

• Bit Rate Control:

  VBR

• WDR:

  Yes

• Gain Control:

  Auto

• Noise Reduction:

  3D NR

• Privacy Masking:

  4 areas

• Perimeter Protection
• AI Functions:

  SMD Plus (detection of vehicle/human) , Smart Dual Illuminators , Privacy masking

• Face Recognition
• Metadata
• Artificial Intelligence
• Motion Detection:

  Yes

• Smart Motion Detection Technology:

  Yes

• Alarm Prompt:

  SD card error; SD card full; motion detection; PIR alarm; low battery alarm

• Certification
• Certifications:

  CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; CE-RED: Radio Equipment Directive 2014/53/EU

• Port
• Audio Compression:

  G.711a; G.711mu; PCM

• Audio Sample Rate:

  8KHz, 16 bit Per Channel

• Built-in Microphone:

  Yes

• Built-in Speaker:

  Yes

• SD card:

  Yes

• SD card capacity:

  Micro SD up to 512GB

• Network
• Wi-Fi:

  IEEE 802.11a/b/g/n/ac 2.4 G & 5 G

• Mobile App:

  Android, iOS

• Management Software:

  DMSS

• Power
• Power Supply:

  USB (5 VDC±5%, 2 A)

• Environment
• Operating Temperature:

  - 20°C to + 60°C

• Operating RH:

  < 95% RH (non-condensation)

• Storage Temperature:

  - 20°C to + 60°C

• Protection:

  IP66

• Construction
• Casing:

  Plastic

• Dimensions:

  Φ65 mm × 186.5 mm

• Net Weight:

  0.37 kg

• Gross Weight:

  1.35 kg

• Shipping package - DAHUA KIT/BF4CA-0210B-XL/M0508
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  8.6 x 21.7 x 32.5; Weight: 1.35 kg.;
