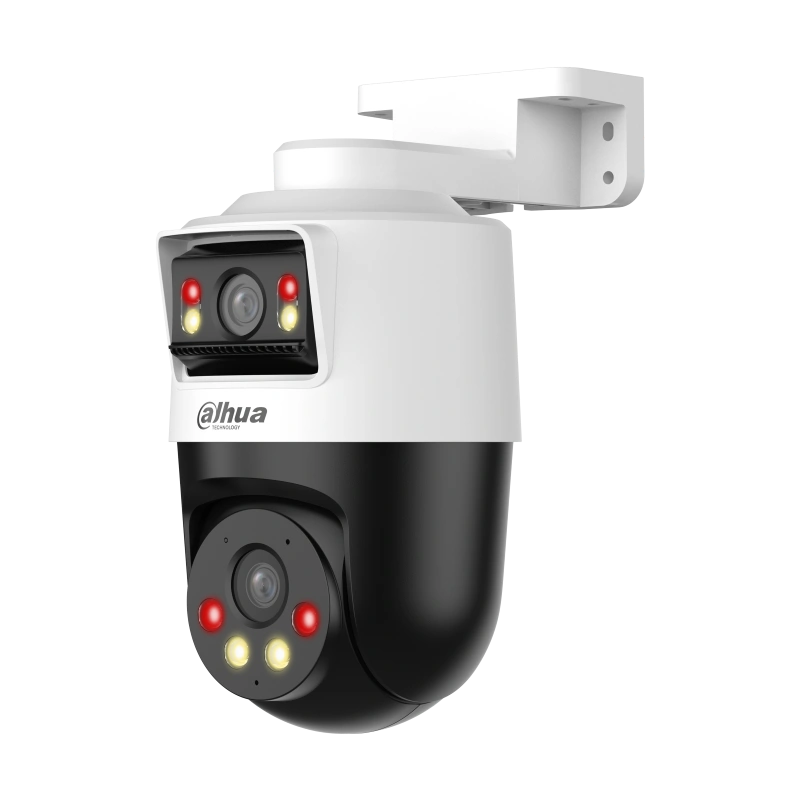

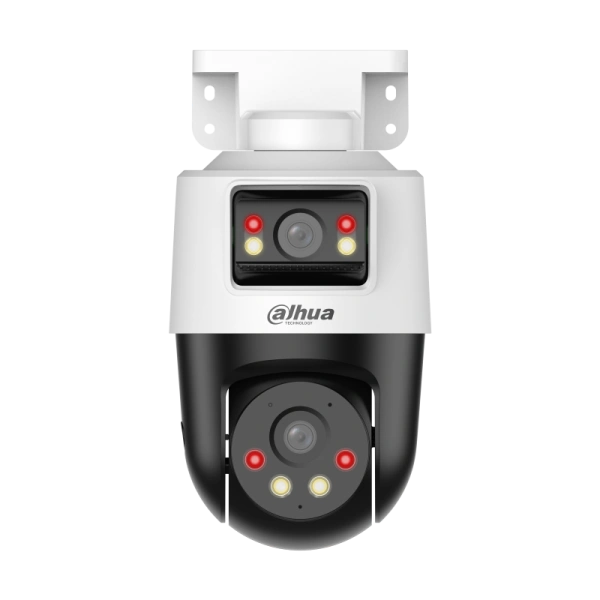

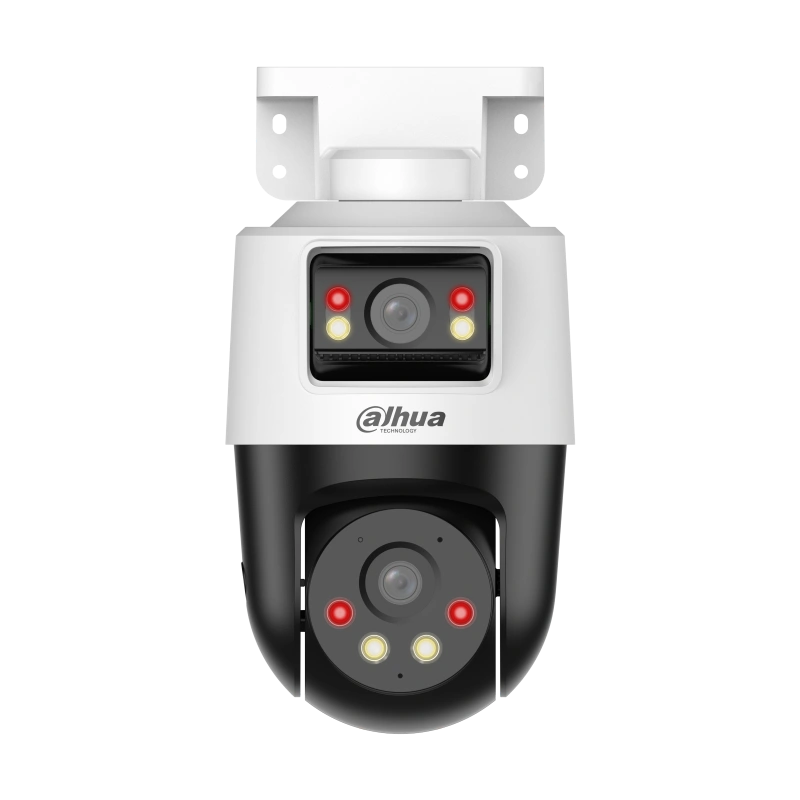

Dahua IPC-PTS1439B-E2-S-PV-0360B 4+4MP Active Deterrance Dual-lens Fixed-focal Entry Network PT Camera

Technical information

• General
• Series:

  PT

• Color:

  White

• Image Sensor:

  2 x 1/3” 4 Megapixel Progressive CMOS

• RAM/ROM:

  512 MB/128 MB

• Resolution:

  2 x 4M (2560 × 1440)

• Resolution_surveillance:

  4 + 4 Mp

• Scanning System:

  Progressive

• Electronic Shutter Speed:

  Auto/Manual 1/3 s–1/100000 s

• Minimum Illumination:

  0.008 lux@F1.6 (Color,30 IRE) 0.0008 lux@F1.6( B/W,30 IRE) 0 lux (Illuminator on)

• Day/Night:

  Auto (ICR)/Color/B/W

• IR backlight to:

  30 meters

• IR On/Off Control:

  Auto / Manual

• IR LEDs:

  4

• Fill Light (White Light) Distance:

  30 m

• Fill Light On/Off Control:

  Auto / Manual

• Fill Light Number:

  4

• Storage:

  FTP; Micro SD card (256G)

• Camera
• IRE:

  30, 0Lux IR on

• S/N Ratio:

  > 56dB

• Pan/Tilt/Rotation:

  Fixed Camera: 0~326°Pan & -10~15°Tilt, PTZ: 0~350°Pan & 0~90°Tilt

• Manual Control Speed:

  0.1° ~55.4° /s (pan); 0.1° ~29.3° /s (tilt)

• Preset Speed:

  55.4° /s (pan); 29.3° /s (tilt)

• Presets:

  50

• PTZ / PT:

  Yes

• Power up Action:

  Yes

• Idle Motion:

  Preset

• Lens
• Lens type:

  Fixed

• Focal Length:

  2 x 3.6 mm

• Mount Type:

  M12

• Max Aperture:

  2 x F1.6

• Angle of View:

  2 x 78° (H)

• Focus Control:

  Fixed

• Close Focus Distance:

  2 x 1.5 m

• Video
• Frame Rate:

  Channel 1 (PT Lens): Main stream: 2560 × 1440@(1–25 fps) sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–25 fps) Channel 2 (Fixed Lens): Main stream: 2560 × 1440@(1–25 fps) sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–25 fps)

• Video Compression:

  H.265; H.264; H.264H; H.264B; MJPEG (only supported by sub stream)

• Smart Codec:

  Smart H.265+/ Smart H.264+

• Streaming Capability:

  2 streams

• Bandwidth:

  48 Mbps incoming bandwidth

• Bit Rate:

  H.264: 32 kbps–6144 kbps; H.265: 32 kbps–6144 kbps

• Bit Rate Control:

  CBR/VBR

• BLC:

  BLC / HLC / WDR

• WDR:

  120dB

• White Balance:

  Auto/natural/street lamp/outdoor/manual/regional custom

• Gain Control:

  Auto / Manual

• Noise Reduction:

  3D NR

• Smart light:

  Yes

• Flip:

  0° / 180°

• Mirror:

  Yes

• Privacy Masking:

  4 areas

• Region of Interest:

  Yes

• Perimeter Protection
• AI Functions:

  Active Deterrence , SMD Plus (detection of vehicle/human) , Smart Dual Illuminators , Privacy masking , ROI (Region of interest)

• Face Recognition
• Metadata
• Artificial Intelligence
• Motion Detection:

  Yes

• Smart Motion Detection Technology:

  Yes

• Alarm Prompt:

  No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; SMD; security exception

• Certification
• Certifications:

  CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

• Port
• Audio Compression:

  G.711a; G.711Mu; PCM; G.726

• Built-in Microphone:

  Yes

• Built-in Speaker:

  Yes

• SD card:

  Yes

• SD card capacity:

  Micro SD up to 256 GB

• Network
• Ethernet:

  1 RJ-45 Ports (10/100 Mbps)

• Mobile App:

  Android, iOS

• Network Function:

  IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P; Auto Registration

• Interoperability:

  ONVIF (Profile S & Profile G & Profile T); CGI

• Max. User Access:

  20

• Web Viewer:

  Chrome; IE9 or later; Firefox

• Management Software:

  Smart PSS Lite; DSS; DMSS

• Power
• Power Supply:

  12 VDC (±30%); PoE (802.3af)

• Power Consumption:

  Max 8.6 W (12 VDC); 10.5 W (PoE)

• Environment
• Operating Temperature:

  -40°C to +50°C

• Operating RH:

  < 95% RH (non-condensation)

• Storage Temperature:

  -40°C to +50°C

• Protection:

  IP66

• Construction
• Casing:

  Plastic

• Dimensions:

  159.4 mm × 110.1 mm × 210 mm

• Net Weight:

  0.62 kg

• Gross Weight:

  0.85 kg

• Shipping package - DAHUA IPC-PTS1439B-E2-S-PV-0360B
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  23.1 x 13.6 x 18.5; Weight: 0.85 kg.;
