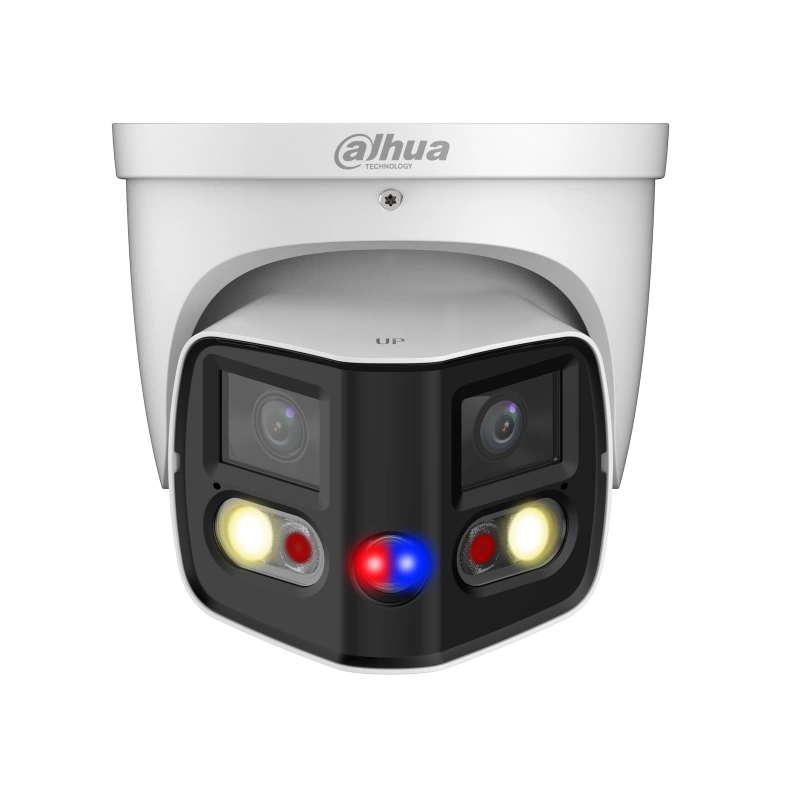

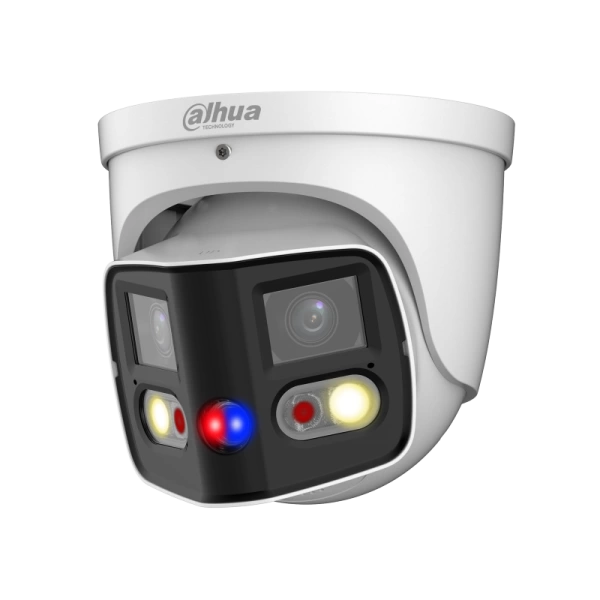

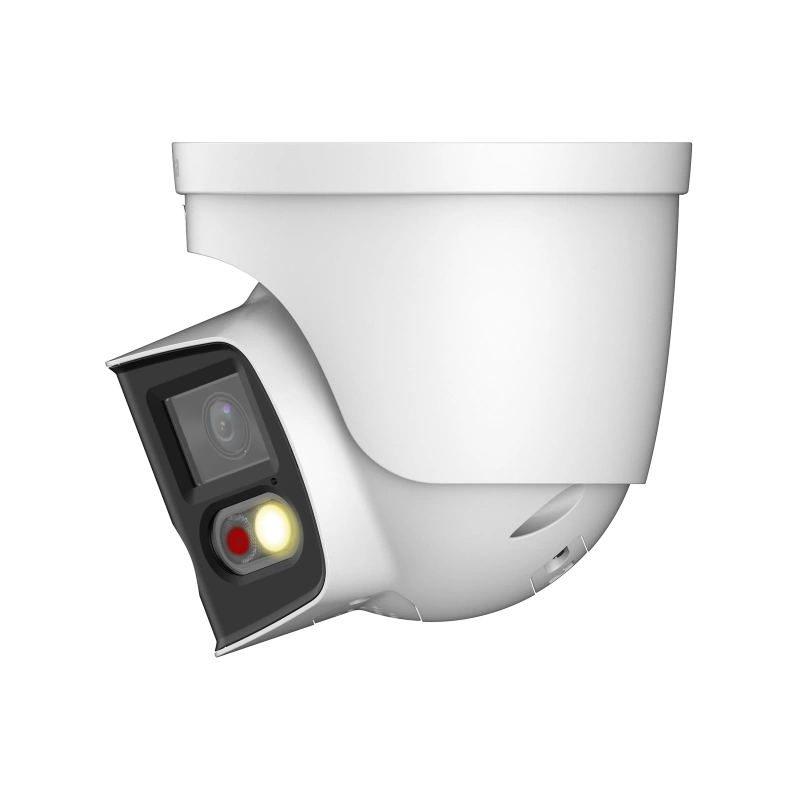

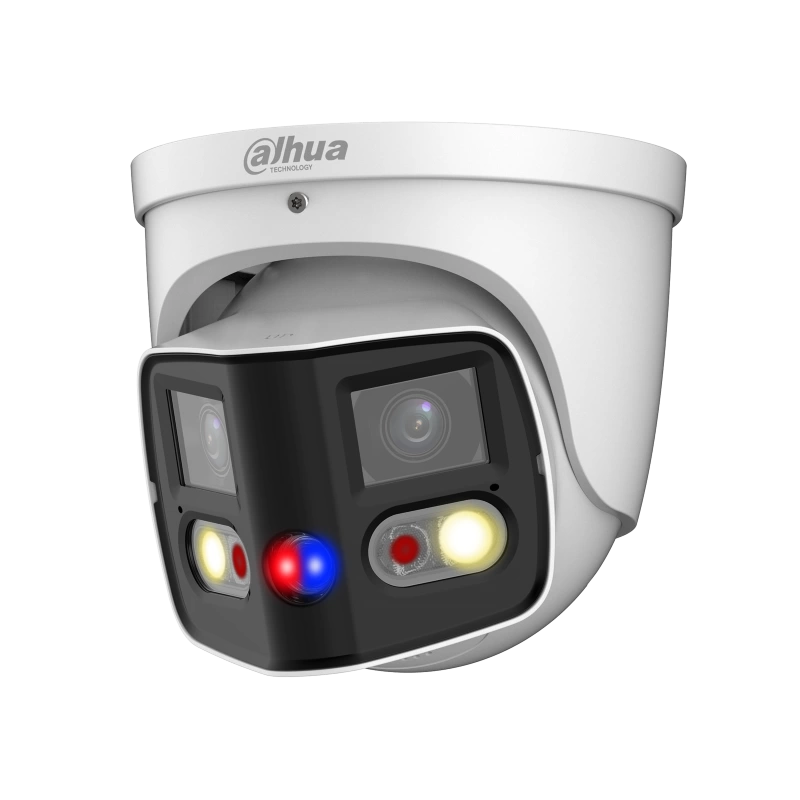

Dahua IPC-PDW3849-A180-AS-PV-0280B 2x4MP TiOC Duo Splicing Fixed-focal Eyeball WizSense Network Camera

Technical information

• General
• Case Type:

  Duo

• Series:

  WizSense

• Color:

  White

• Image Sensor:

  2 x 1/1.7" 4 Megapixels Progressive CMOS

• RAM/ROM:

  1 GB/128 MB

• Resolution:

  4K (4096 × 1860)

• Resolution_surveillance:

  8 Mp

• Scanning System:

  Progressive

• Electronic Shutter Speed:

  Auto/Manual 1/3 s–1/100000 s

• Minimum Illumination:

  0.005 lux@F1.4 (Color, 30 IRE) 0.0005 lux@F1.4 (B/W, 30 IRE) 0 lux (Illuminator on)

• Day/Night:

  Auto (ICR)/Color/B/W

• IR backlight to:

  25 meters

• IR On/Off Control:

  Auto / Manual

• IR LEDs:

  2

• Fill Light (White Light) Distance:

  20 m

• Fill Light On/Off Control:

  Auto / Manual

• Fill Light Number:

  2

• Storage:

  FTP; Micro SD card (support max. 256 G); NAS; SFTP

• Camera
• IRE:

  30, 0Lux IR on

• S/N Ratio:

  > 56dB

• Pan/Tilt/Rotation:

  0°-360°(pan); 0°-77°(tilt); 0°-360°(rotation)

• Lens
• Lens type:

  Fixed

• Focal Length:

  2.8 mm

• Mount Type:

  M12

• Max Aperture:

  F1.4

• Angle of View:

  180° (H)

• Focus Control:

  Fixed

• Close Focus Distance:

  0.8 m

• Video
• Frame Rate:

  Main stream: 4096 × 1860@(1–20 fps ) Sub stream: 1200 × 530@(1–20 fps) Third stream: 1920 × 860@(1–20 fps)

• Video Compression:

  H.265; H.264; H.264H; H.264B; MJPEG (only supported by sub stream)

• Smart Codec:

  AI H.265; AI H.264 , Smart H.265+/ Smart H.264+

• Streaming Capability:

  3 streams

• Bandwidth:

  64 Mbps incoming bandwidth

• Bit Rate:

  H.264: 6 kbps –16384 kbps H.265: 6 kbps –16384 kbps

• Bit Rate Control:

  CBR/VBR

• BLC:

  BLC / HLC / WDR / SSA

• WDR:

  120dB

• White Balance:

  Auto/natural/street lamp/outdoor/manual/regional custom

• Gain Control:

  Auto

• Noise Reduction:

  3D NR

• Privacy Masking:

  4 areas

• Region of Interest:

  Yes

• Electronic Defog:

  Yes

• Perimeter Protection
• Performance:

  Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

• AI Search:

  Intelligent Search (Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.)

• AI Functions:

  Defog , E-PTZ , Intrusion , Perimeter protection , Privacy masking , ROI (Region of interest) , SMD Plus (detection of vehicle/human) , Tripwire

• Face Recognition
• Metadata
• Artificial Intelligence
• Motion Detection:

  Yes

• IVS / Intelligent Video Surveillance :

  Tripwire, Intrusion

• Smart Motion Detection Technology:

  Yes

• Alarm Prompt:

  No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception

• Certification
• Certifications:

  CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

• Port
• Audio Input:

  1-channel (RCA port)

• Audio Output:

  1-channel (RCA port)

• Alarm Input:

  1 channel in: 5mA 3V–5V DC

• Alarm Output:

  1 channel out: 300mA 12V DC

• Audio Compression:

  G.711a; G.711Mu; PCM; G.726; G.723

• Built-in Microphone:

  Yes

• Built-in Speaker:

  Yes

• SD card:

  Yes

• SD card capacity:

  Micro SD up to 256 GB

• Network
• Ethernet:

  RJ-45 (10/100 Base-T)

• Mobile App:

  Android, iOS

• Network Function:

  IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P

• Interoperability:

  ONVIF (Profile S/Profile G/Profile T); CGI

• Max. User Access:

  20

• Web Viewer:

  Chrome; IE9 or later; Firefox

• Management Software:

  Smart PSS Lite; DSS; DMSS

• Compatible accessories:

  PFA137, PFB205W-E, PFA109, PFA152-E, PFB220C

• Power
• Power Supply:

  DC 12V (±30%), PoE (802.3af)

• Power Consumption:

  Max 8.7 W (12 VDC); 10.85 W (PoE)

• Environment
• Operating Temperature:

  - 40°C to + 60°C

• Operating RH:

  < 95% RH

• Storage Temperature:

  - 40°C to + 60°C

• Protection:

  IP67

• Construction
• Casing:

  Metal

• Dimensions:

  Φ122 mm × 135.2 mm

• Net Weight:

  0.99 kg

• Gross Weight:

  1.15 kg

• Shipping package - DAHUA IPC-PDW3849-A180-AS-PV-0280B
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  13.52 x 12.2 x 12.2; Weight: 1.15 kg.;
