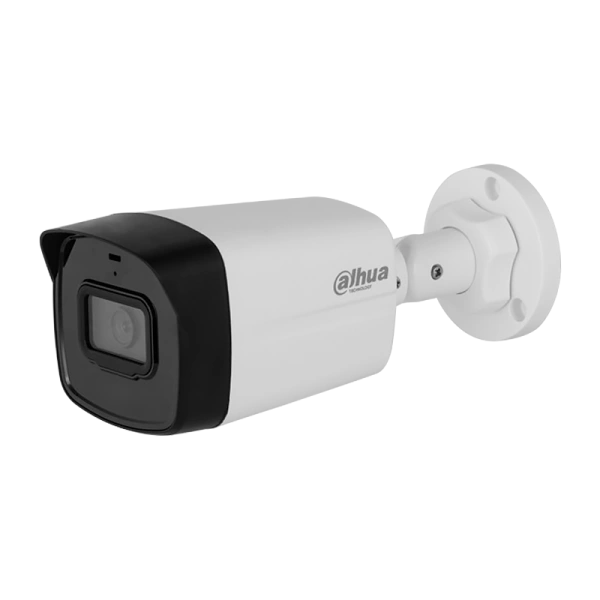

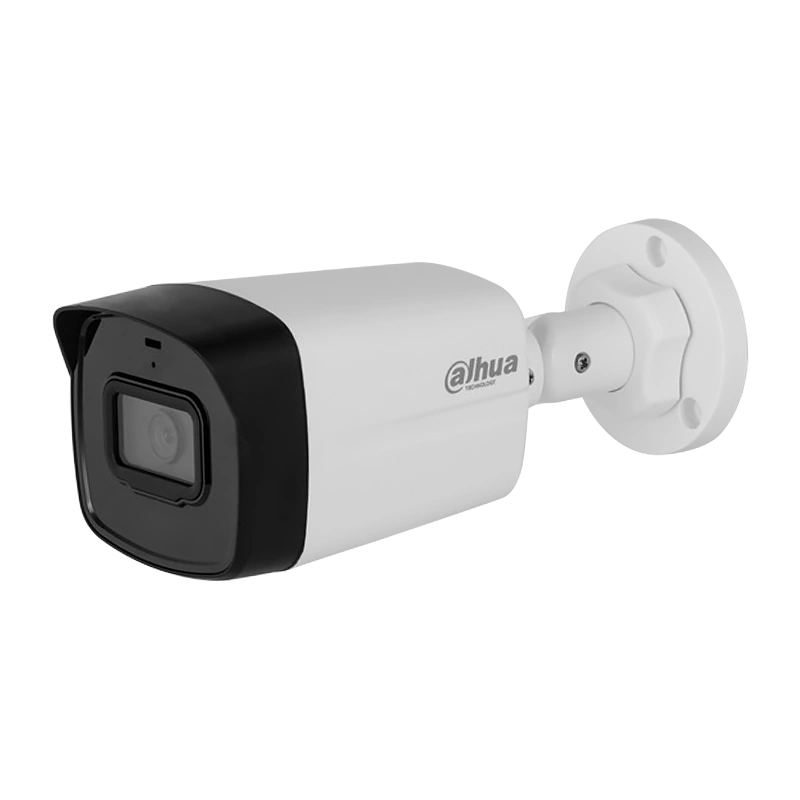

Dahua IPC-B1E20-A-0280B 2MP ECO IR Fixed-focal Bullet Network Camera

Technical information

• General
• Case Type:

  Bullet

• Series:

  ECO

• Color:

  White

• Image Sensor:

  1/3.2” 2 Megapixel progressive CMOS

• RAM/ROM:

  64 MB/16 MB

• Resolution:

  1080p (1920 × 1080)

• Resolution_surveillance:

  2 Mp

• Scanning System:

  Progressive

• Electronic Shutter Speed:

  Auto/Manual 1/3 s–1/100000 s

• Minimum Illumination:

  0.01 lux@F2.2 (Color, 30 IRE) 0.005 lux@F2.2 (B/W,30 IRE) 0 lux (Illuminator on)

• Day/Night:

  Auto (ICR)/Color/B/W

• IR backlight to:

  30 meters

• IR On/Off Control:

  Auto / Manual

• IR LEDs:

  2

• Storage:

  FTP

• Camera
• IRE:

  30, 0Lux IR on

• S/N Ratio:

  > 56dB

• Pan/Tilt/Rotation:

  0°–360° (pan); 0°–90° (tilt); 0°–360° (rotation)

• Lens
• Lens type:

  Fixed

• Focal Length:

  2.8 mm

• Mount Type:

  M12

• Max Aperture:

  F2.2

• Angle of View:

  99° (H)

• Iris Type:

  Fixed aperture

• Close Focus Distance:

  0.5 m

• Video
• Frame Rate:

  Main stream: 1920 × 1080@(1–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)

• Video Compression:

  H.265; H.264; H.264B; MJPEG (only supported by the sub stream)

• Smart Codec:

  Smart H.265+/ Smart H.264+

• Streaming Capability:

  2 streams

• Bandwidth:

  24 Mbps incoming bandwidth

• Bit Rate:

  H.264: 32 kbps–4096 kbps H.265: 12 kbps–4096 kbps

• Bit Rate Control:

  CBR/VBR

• BLC:

  BLC / HLC / WDR

• WDR:

  DWDR

• White Balance:

  Auto/natural/street lamp/outdoor/manual/regional custom

• Gain Control:

  Auto

• Noise Reduction:

  3D NR

• Smart light:

  Yes

• Flip:

  0° / 180°

• Mirror:

  Yes

• Privacy Masking:

  4 areas

• Region of Interest:

  Yes

• Perimeter Protection
• AI Functions:

  Privacy masking , ROI (Region of interest)

• Face Recognition
• Metadata
• Artificial Intelligence
• Motion Detection:

  Yes

• Alarm Prompt:

  Network disconnection; IP conflict; illegal access; motion detection; audio detection; video tampering; security exception

• Certification
• Port
• Audio Compression:

  G.711a; G.711Mu; G.726; PCM

• Built-in Microphone:

  Yes

• SD card:

  No

• Network
• Ethernet:

  1 RJ-45 Ports (10/100 Mbps)

• Mobile App:

  Android, iOS

• Network Function:

  IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; P2P

• Interoperability:

  ONVIF (Profile S; Profile T); CGI

• Max. User Access:

  6

• Web Viewer:

  Chrome; IE9 or later; Firefox

• Management Software:

  Smart PSS Lite; DSS; DMSS

• Compatible accessories:

  PFA130-E, PFA157

• Power
• Power Supply:

  12V DC/PoE

• Power Consumption:

  Max 2.8 W (12 VDC); 4 W (PoE)

• Environment
• Operating Temperature:

  -40°C to +50°C

• Operating RH:

  < 95% RH

• Storage Temperature:

  - 40°C to + 60°C

• Protection:

  IP67

• Construction
• Casing:

  Plastic

• Dimensions:

  198.9 mm x 80.2 mm x 76.2 mm

• Net Weight:

  0.25 kg

• Gross Weight:

  0.37 kg

• Shipping package - DAHUA IPC-B1E20-0280B
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  7.62 x 8.02 x 19.89; Weight: 0.37 kg.;
