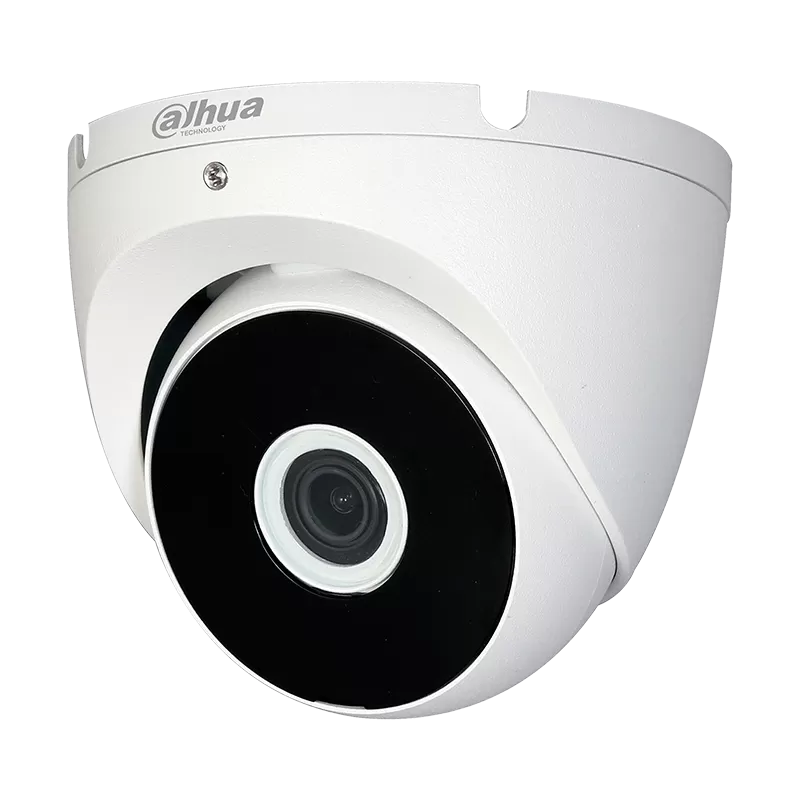

Dahua HAC-T2A21-0280B 2MP HDCVI IR Eyeball Camera

Technical information

• General
• Case Type:

  Eyeball

• Series:

  Cooper

• Color:

  White

• Image Sensor:

  1/2.7” 2 Megapixel Progressive CMOS

• Resolution:

  1920 x 1080

• Resolution_surveillance:

  2 Mp

• Scanning System:

  Progressive

• Electronic Shutter Speed:

  PAL: 1/25~1/100000s NTSC: 1/30~1/100000s

• Minimum Illumination:

  0.04Lux/F1.85, 30IRE, 0Lux IR on

• Day/Night:

  Yes

• IR backlight to:

  20 meters

• IR On/Off Control:

  Auto / Manual

• Camera
• Lens
• Lens type:

  Fixed

• Focal Length:

  2.8 mm

• Mount Type:

  Board-in

• Max Aperture:

  F1.85

• Angle of View:

  100° (H)

• Focus Control:

  No

• Close Focus Distance:

  0.8 m

• Video
• Frame Rate:

  25/30fps@1080P, 25/30/50/60fps@720P

• OSD Menu:

  Yes

• BLC:

  BLC / HLC / DWDR

• WDR:

  DWDR

• Gain Control:

  AGC

• Noise Reduction:

  2D

• Smart light:

  Auto / Manual

• Perimeter Protection
• Face Recognition
• Metadata
• Artificial Intelligence
• Certification
• Certifications:

  CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

• Port
• Video Port:

  1-channel BNC high definition video output / CVBS video output (Can switch)

• Network
• Compatible accessories:

  PFB205W, PFA152-E

• Power
• Power Supply:

  12V DC ±30%

• Power Consumption:

  < 2.7W

• Environment
• Operating Temperature:

  - 40°C to + 60°C

• Operating RH:

  < 95% RH

• Storage Temperature:

  - 40°C to + 60°C

• Protection:

  IP67

• Construction
• Dimensions:

  94 mm x 94 mm x 78 mm

• Net Weight:

  0.27 kg

• Gross Weight:

  0.32 kg

• Shipping package - DAHUA HAC-T2A21-0280B
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  7.8 x 9.4 x 9.4; Weight: 0.4 kg.;
