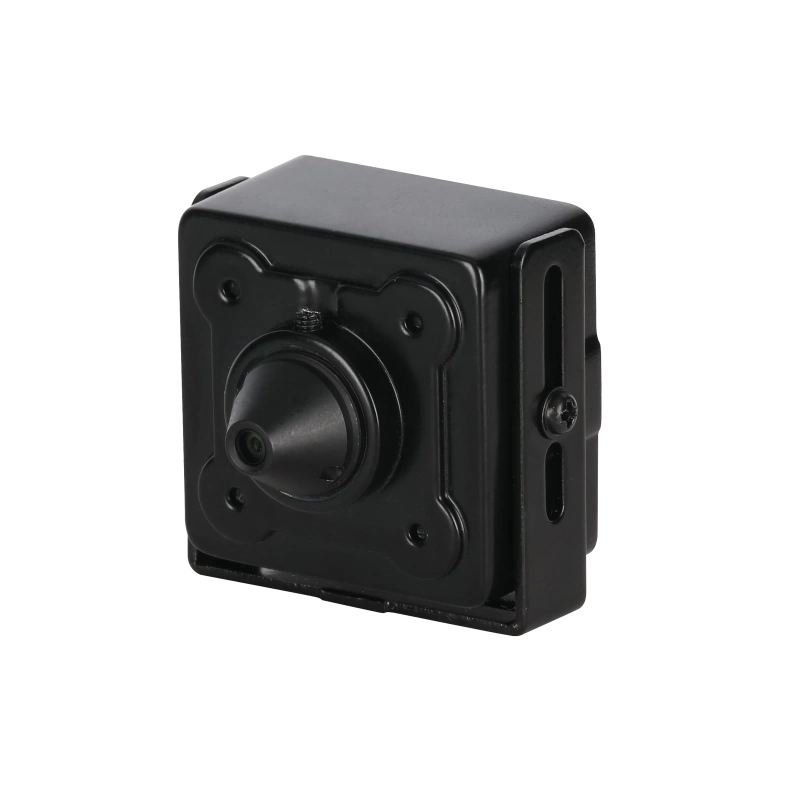

Dahua HAC-HUM3201B-P-0280B-S2 2MP Starlight HDCVI Pinhole Camera

Technical information

• General
• Case Type:

  Pinhole

• Series:

  Micro-size

• Color:

  Black

• Image Sensor:

  1/2.8” 2 Megapixel Progressive CMOS

• Resolution:

  1080p (1920 × 1080)

• Resolution_surveillance:

  2 Mp

• Scanning System:

  Progressive

• Electronic Shutter Speed:

  PAL: 1/3s~1/100,000s NTSC: 1/4s~1/100,000s

• Minimum Illumination:

  Color: 0.004LuxLux/F2.4 Black & White: 0.0004LuxLux/F2.4

• Day/Night:

  Auto (ICR)

• Camera
• Lens
• Lens type:

  Fixed

• Focal Length:

  2.8 mm

• Zoom:

  4 x digital

• Mount Type:

  M12

• Max Aperture:

  F2.4

• Angle of View:

  103° (H)

• Iris Type:

  Fixed aperture

• Focus Control:

  Fixed

• Close Focus Distance:

  0.5 m

• Video
• Frame Rate:

  CVI: PAL: 1080P@25fps, 720P@25/50fps NTSC: 1080P@30fps, 720P@30/60fps AHD: PAL: 1080P@25fps, 720P@25fps NTSC: 1080P@30fps, 720P@30fps TVI: PAL: 1080P@25fps, 720P@25ps NTSC: 1080P@30fps, 720P@30ps CVBS: PAL: 960 × 576H NTSC: 960 × 480H

• BLC:

  BLC / HLC / WDR

• WDR:

  120dB

• White Balance:

  Auto / Manual

• Gain Control:

  Auto / Manual

• Noise Reduction:

  3D NR

• Smart light:

  Yes

• Mirror:

  Off/On

• Privacy Masking:

  Off/On

• Electronic Defog:

  Yes

• Lowlight performance technology:

  Starlight

• Perimeter Protection
• AI Functions:

  Defog , Privacy masking

• Face Recognition
• Metadata
• Artificial Intelligence
• Certification
• Certifications:

  CE (EN55032, EN55024, EN50130-4,EN60950-1) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

• Port
• Audio Input:

  1-channel (RCA port)

• Video Port:

  Video output choices of CVI/TVI/AHD/CVBS by one BNC port

• Network
• Power
• Power Supply:

  12V ±30% DC

• Power Consumption:

  Max 2.11W

• Environment
• Operating Temperature:

  - 30°C to + 60°C

• Operating RH:

  < 95% RH (non-condensation)

• Storage Temperature:

  - 30°C to + 60°C

• Construction
• Casing:

  Metal

• Dimensions:

  43.5 mm × 36.2 mm × 29.5 mm

• Net Weight:

  0.04 kg

• Gross Weight:

  0.14 kg

• Shipping package - DAHUA HAC-HUM3201B-P-0280B-S2
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  2.95 x 3.62 x 4.35; Weight: 0.14 kg.;
