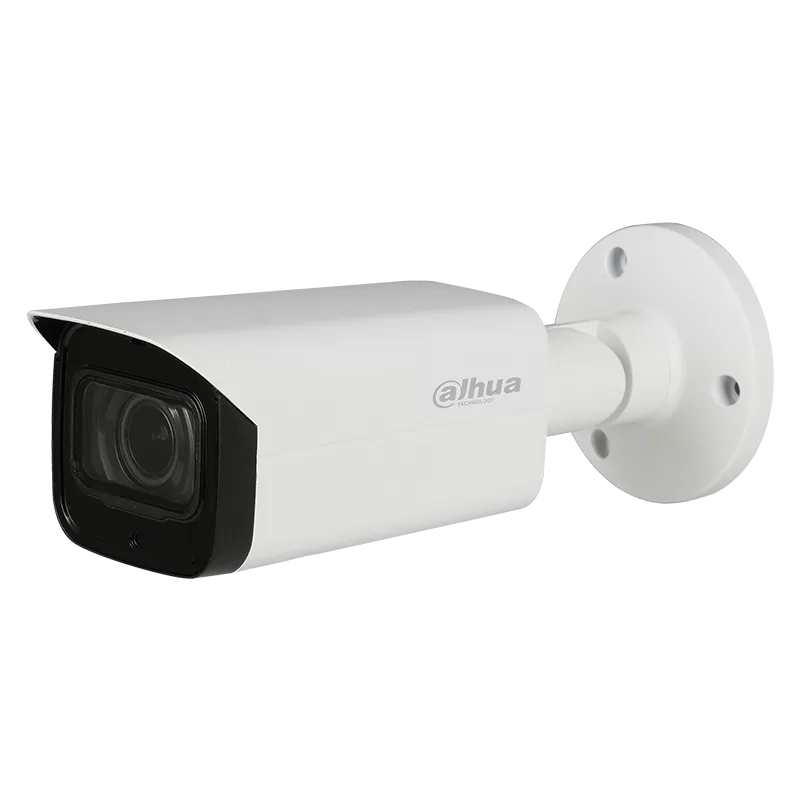

Dahua HAC-HFW2501T-I8-A-0280B 4K Starlight HDCVI IR Bullet Camera
- Code: 1710057
- In stock
- Weight: 0.53 kg
Comments
Technical information
-
General
-
Case Type:
Bullet
-
Series:
Pro
-
Color:
White
-
Image Sensor:
1/1.8" 8 Megapixels Progressive CMOS
-
Resolution:
3840 × 2160 (4K)
-
Resolution_surveillance:
8 Mp
-
Scanning System:
Progressive
-
Electronic Shutter Speed:
PAL: 1/4s~1/100,000s NTSC: 1/3s~1/100,000s
-
Minimum Illumination:
0.005Lux/F1.6, 30IRE, 0Lux IR on
-
Day/Night:
Auto (ICR) / Manual
-
IR backlight to:
80 meters
-
IR On/Off Control:
Auto / Manual
-
IR LEDs:
4
-
Camera
-
IRE:
30, 0Lux IR on
-
S/N Ratio:
> 65dB
-
Lens
-
Lens type:
Fixed
-
Focal Length:
3.6 mm
-
Mount Type:
Board-in
-
Max Aperture:
F1.6
-
Angle of View:
87° (H)
-
Iris Type:
Fixed aperture
-
Focus Control:
No
-
Close Focus Distance:
2.5 m
-
Video
-
Frame Rate:
15fps@4K, 20fps@6MP, 25/30fps@4MP
-
OSD Menu:
Yes
-
BLC:
BLC / HLC / WDR
-
WDR:
120dB
-
White Balance:
Auto / Manual
-
Gain Control:
AGC
-
Noise Reduction:
2D/3D
-
Smart light:
Auto / Manual
-
Perimeter Protection
-
Face Recognition
-
Metadata
-
Artificial Intelligence
-
Certification
-
Certifications:
CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
-
Port
-
Video Port:
1-channel BNC high definition video output / CVBS video output (DIP switch)
-
Audio Port:
1 channel in
-
Built-in Microphone:
Yes
-
Network
-
Compatible accessories:
PFA130-E, PFA152-E, PFA151
-
Power
-
Power Supply:
12V DC ±30%
-
Power Consumption:
Max 11.3W (12V DC, IR on)
-
Environment
-
Operating Temperature:
- 30°C to + 60°C
-
Operating RH:
< 90% RH
-
Storage Temperature:
- 30°C to + 60°C
-
Protection:
IP67
-
Construction
-
Casing:
Aluminium
-
Dimensions:
244 mm × 90 mm × 90 mm
-
Net Weight:
0.42 kg
-
Gross Weight:
0.53 kg
- Shipping package - DAHUA HAC-HFW2802T-A-I8-0360B
- Packages quantity:
1 pc.
-
Package dimensions (HxWxD cm):
9 x 9 x 24.4; Weight: 0.53 kg.;
