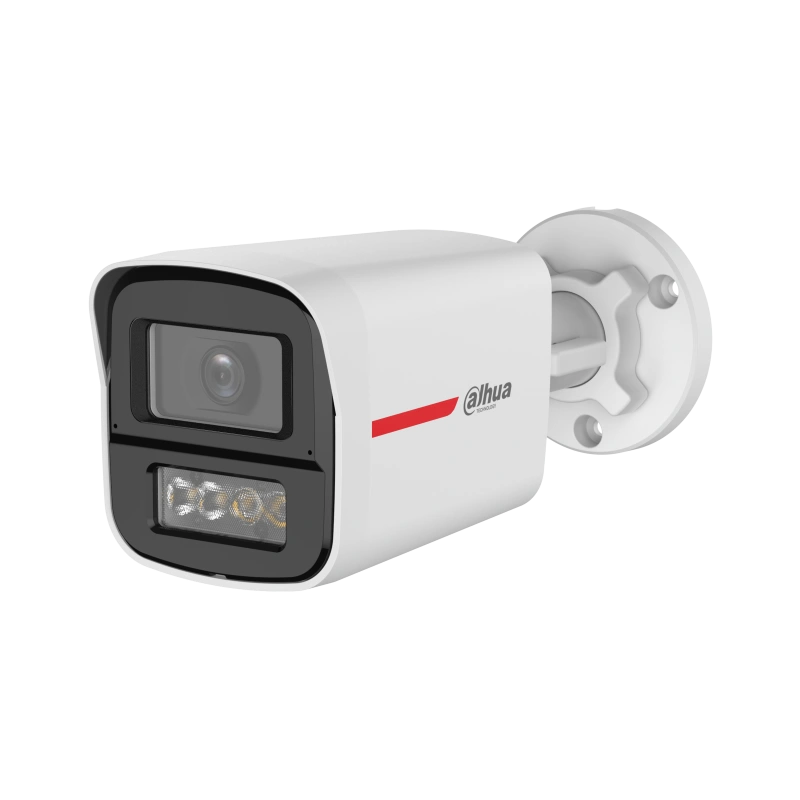

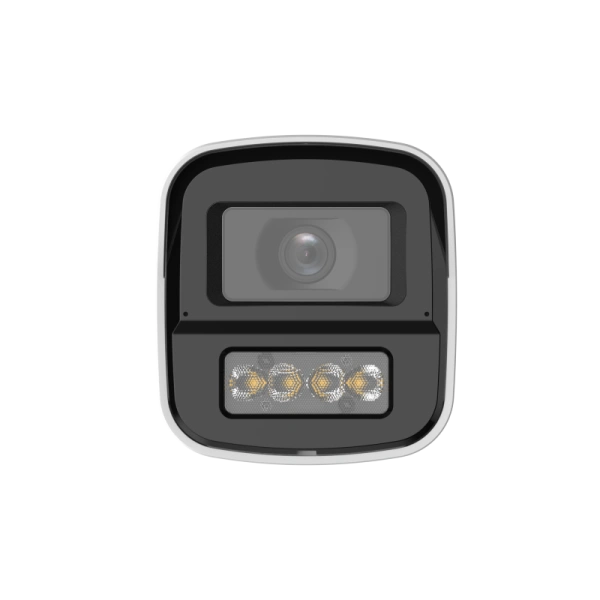

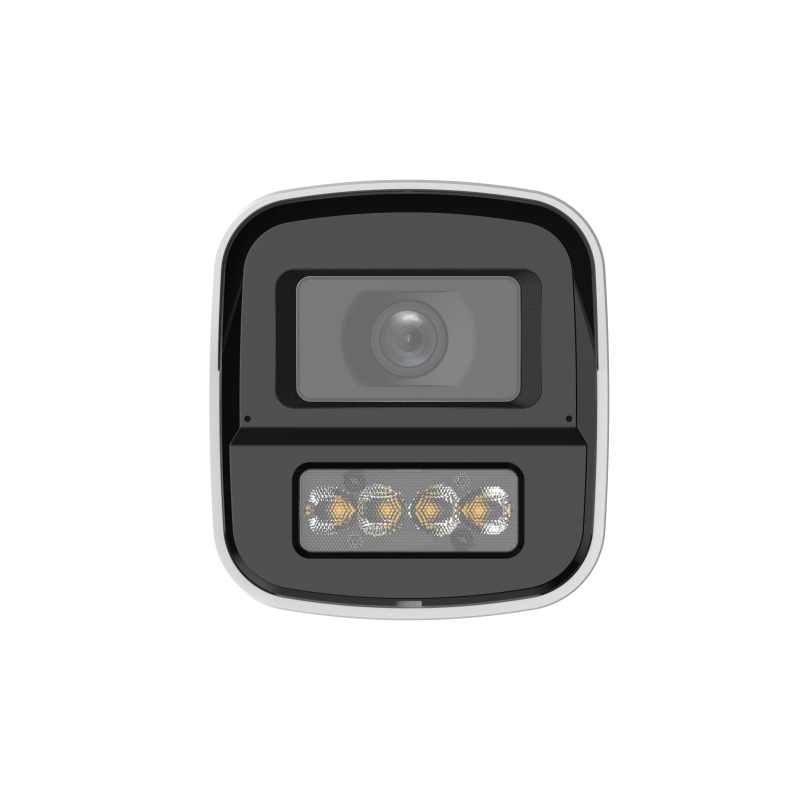

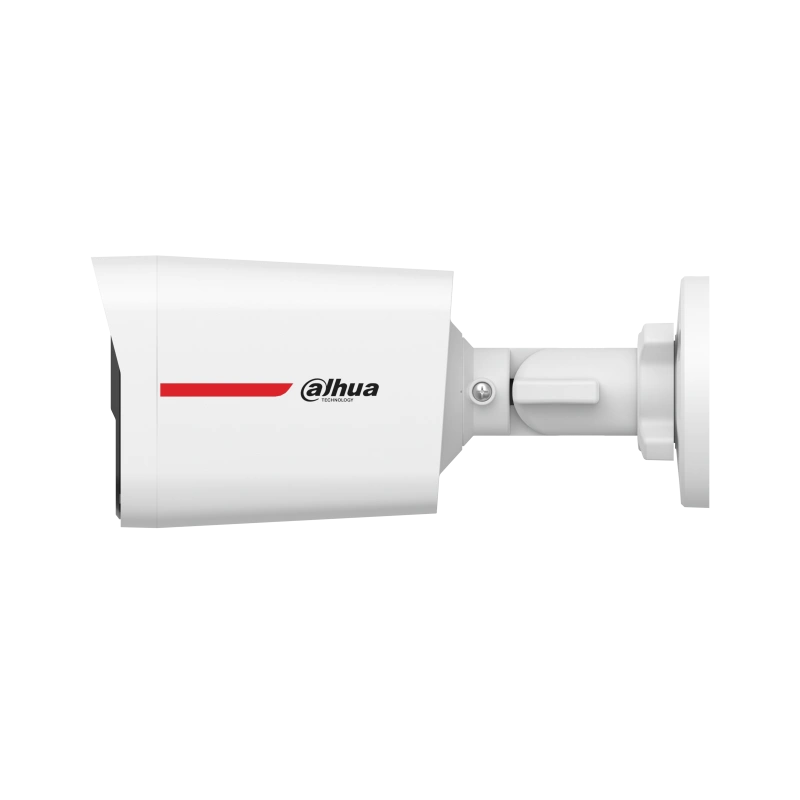

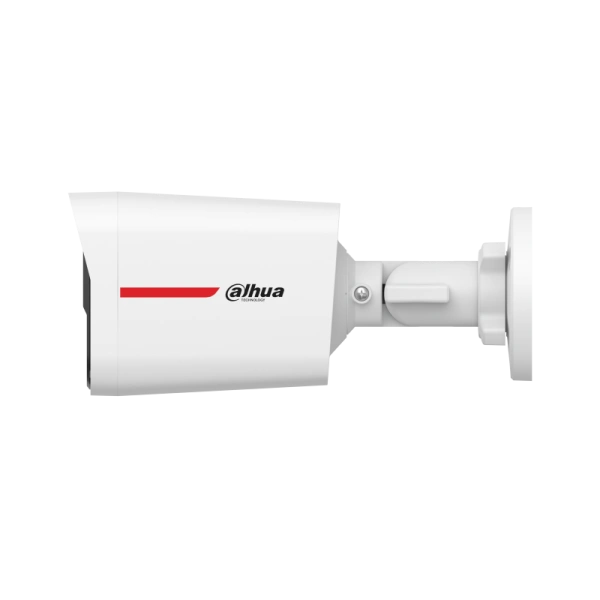

Dahua HAC-HFW1549X-IL-A-PRO-0280B-DIP 5MP WizColor HDCVI Fixed-focal Bullet Camera

Technical information

• General
• Case Type:

  Bullet

• Series:

  Lite

• Color:

  White

• Image Sensor:

  5 Megapixel Progressive CMOS

• Resolution:

  5M (2880 × 1620)

• Resolution_surveillance:

  5 Mp

• Scanning System:

  Progressive

• Electronic Shutter Speed:

  PAL: 1/25~1/100000s NTSC: 1/30~1/100000s

• Minimum Illumination:

  0.0001 lux@F1.0 (Color, 30 IRE) 0.00001 lux@F1.0 (B/W, 30 IRE) 0 lux (Illuminator on)

• Day/Night:

  Auto (ICR)/Color/B/W

• IR backlight to:

  50 meters

• IR On/Off Control:

  Auto / Manual

• IR LEDs:

  4

• Fill Light (White Light) Distance:

  50 m

• Fill Light On/Off Control:

  Auto / Manual

• Fill Light Number:

  4

• Camera
• IRE:

  30, 0Lux IR on

• S/N Ratio:

  > 65dB

• Pan/Tilt/Rotation:

  0°–360° (pan); 0°–90° (tilt); 0°–360° (rotation)

• Lens
• Lens type:

  Fixed

• Focal Length:

  2.8 mm

• Mount Type:

  M12

• Max Aperture:

  F1.0

• Angle of View:

  111° (H)

• Focus Control:

  Fixed

• Close Focus Distance:

  1.4 m

• Video
• Frame Rate:

  CVI: PAL: 5M@25 fps; 5M@12.5 fps; NTSC: 5M@25 fps; 5M@10 fps; AHD: PAL: 4M@25 fps NTSC: 4M@30 fps TVI: PAL: 5M@20 fps NTSC: 5M@20 fps CVBS: PAL: 960H NTSC: 960H

• BLC:

  WDR

• WDR:

  130dB

• White Balance:

  Auto

• Gain Control:

  Auto

• Noise Reduction:

  3D NR

• Mirror:

  Yes

• Lowlight performance technology:

  WizColor

• Perimeter Protection
• Face Recognition
• Metadata
• Artificial Intelligence
• Motion Detection:

  Yes

• Certification
• Certifications:

  CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035

• Port
• Video Port:

  Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)

• Built-in Microphone:

  Yes

• Network
• Compatible accessories:

  G3416GW, PFA130-E, PFA134, PFA151

• Power
• Power Supply:

  12 VDC (±30%)

• Power Consumption:

  Max 6.1 W (12 VDC)

• Environment
• Operating Temperature:

  - 40°C to + 60°C

• Operating RH:

  < 95% RH (non-condensation)

• Storage Temperature:

  - 40°C to + 60°C

• Protection:

  IP67

• Construction
• Casing:

  Metal+Plastic

• Dimensions:

  186.5 mm × 75 mm × 82.2 mm

• Net Weight:

  0.35 kg

• Gross Weight:

  0.49 kg

• Shipping package - DAHUA HAC-HFW1549X-IL-A-PRO-0280B-DIP
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  8.22 x 7.5 x 18.65; Weight: 0.49 kg.;
