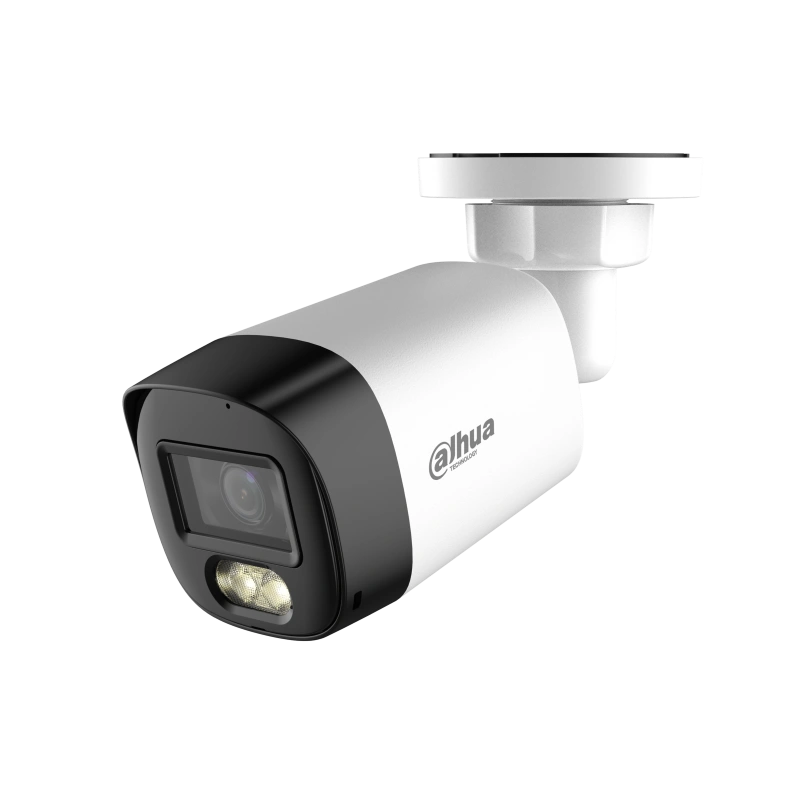

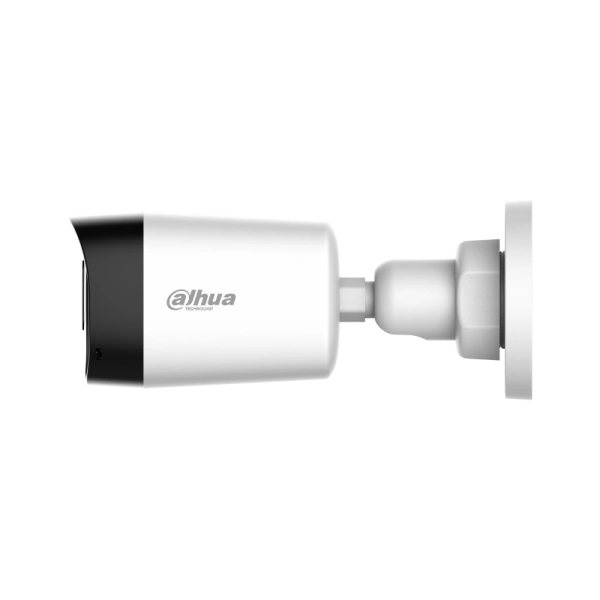

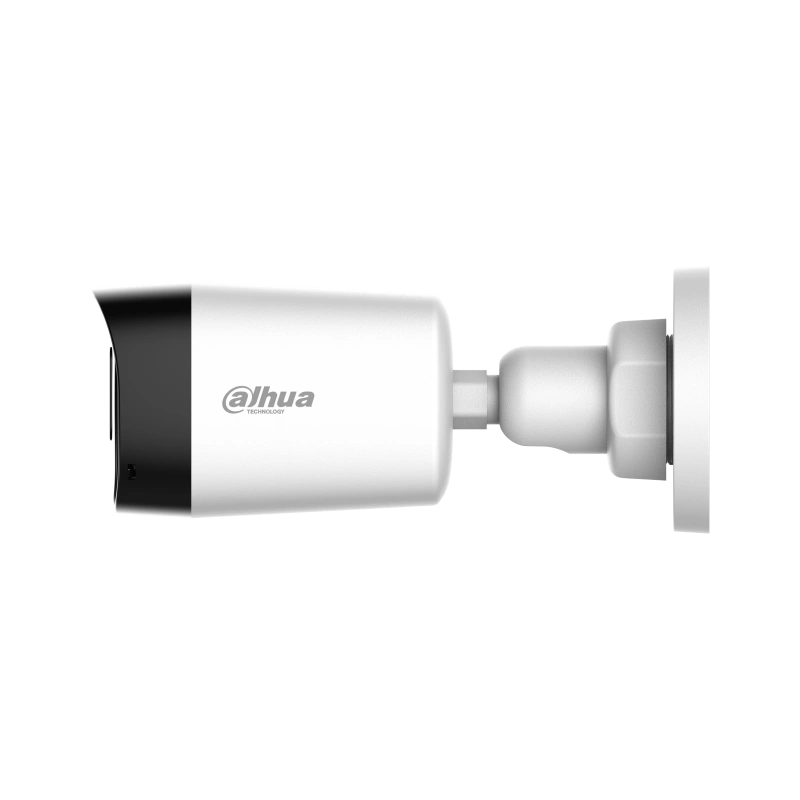

Dahua HAC-HFW1500RL-IL-A-0280B-S3-DIP 5MP Smart Dual Light HDCVI Fixed-focal Bullet Camera

Technical information

• General
• Case Type:

  Bullet

• Series:

  Lite

• Color:

  White

• Image Sensor:

  5 Megapixel Progressive CMOS

• Resolution:

  5M (2880 × 1620)

• Resolution_surveillance:

  5 Mp

• Scanning System:

  Progressive

• Electronic Shutter Speed:

  PAL: 1/25~1/100000s NTSC: 1/30~1/100000s

• Minimum Illumination:

  0.01 lux@F1.6 (Color, 30 IRE) 0.001 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on)

• Day/Night:

  Auto (ICR)/Color/B/W

• IR backlight to:

  30 meters

• IR On/Off Control:

  Auto

• IR LEDs:

  2

• Fill Light (White Light) Distance:

  30 m

• Fill Light On/Off Control:

  Auto

• Fill Light Number:

  2

• Camera
• IRE:

  30, 0Lux IR on

• S/N Ratio:

  > 65dB

• Pan/Tilt/Rotation:

  0°–360° (pan); 0°–90° (tilt); 0°–360° (rotation)

• Lens
• Lens type:

  Fixed

• Focal Length:

  2.8 mm

• Mount Type:

  M12

• Max Aperture:

  F1.6

• Angle of View:

  113.3° (H)

• Iris Type:

  Fixed aperture

• Close Focus Distance:

  0.8 m

• Video
• Frame Rate:

  CVI: PAL: 5M@25 fps; 5M@12.5 fps; 4M@25 fps; 1080p@25 fps NTSC: 5M@25 fps; 5M@20 fps; 5M@10 fps; 4M@30 fps; 1080p@30 fps AHD: PAL: 4M@25 fps NTSC: 4M@30 fps TVI: PAL: 5M 16:9@20 fps NTSC: 5M 16:9@20 fps CVBS: PAL: 960H NTSC: 960H

• BLC:

  BLC / HLC / WDR

• WDR:

  DWDR

• White Balance:

  Auto; Area WB

• Gain Control:

  Auto

• Noise Reduction:

  3D NR

• Smart light:

  Yes

• Mirror:

  Yes

• Privacy Masking:

  Off/On (8 area, rectangle)

• Perimeter Protection
• AI Functions:

  Privacy masking

• Face Recognition
• Metadata
• Artificial Intelligence
• Motion Detection:

  Yes

• Certification
• Certifications:

  CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035

• Port
• Video Port:

  Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)

• Built-in Microphone:

  Yes

• Network
• Compatible accessories:

  G3416GW, PFA130-E, PFA134,PFA152-E, PFA151

• Power
• Power Supply:

  12 VDC (±30%)

• Power Consumption:

  Max 4.3 W (12 VDC, WLED on)

• Environment
• Operating Temperature:

  - 40°C to + 60°C

• Operating RH:

  < 95% RH (non-condensation)

• Storage Temperature:

  - 40°C to + 60°C

• Protection:

  IP67

• Construction
• Casing:

  Plastic

• Dimensions:

  161.6 mm × 70.0 mm × 69.7 mm

• Net Weight:

  0.2 kg

• Gross Weight:

  0.27 kg

• Shipping package - DAHUA HAC-HFW1500RL-IL-A-0280B-S3-DIP
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  6.97 x 7 x 16.16; Weight: 0.27 kg.;
