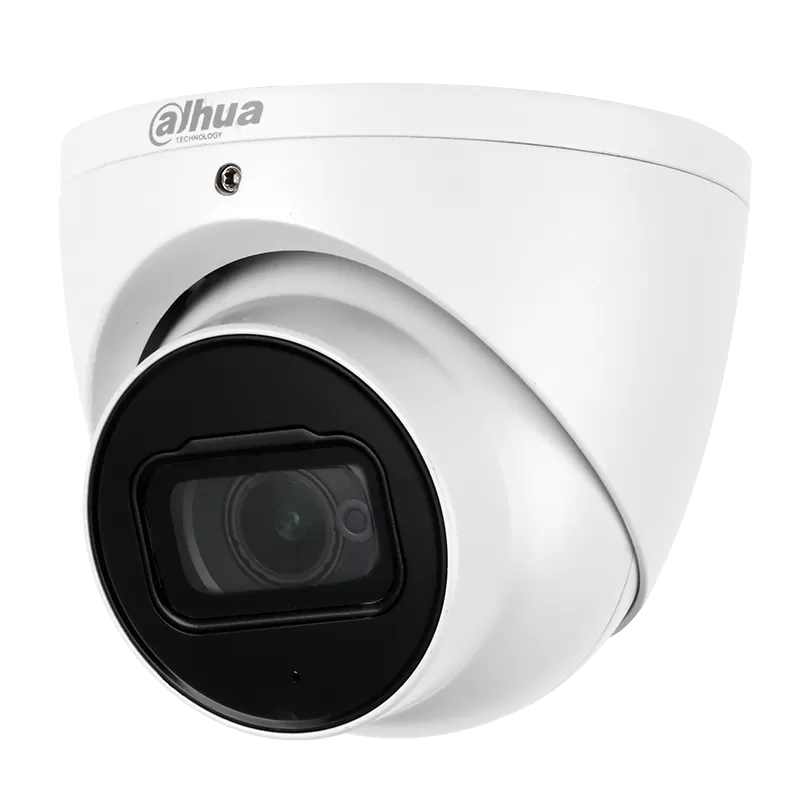

Dahua HAC-HDW2802T-A-0280B 4K Starlight HDCVI IR Eyeball Camera

Technical information

• General
• Case Type:

  Eyeball

• Series:

  Pro

• Color:

  White

• Image Sensor:

  1/2” 8 Megapixel Progressive CMOS

• Resolution:

  3840 × 2160 (4K)

• Resolution_surveillance:

  8 Mp

• Scanning System:

  Progressive

• Electronic Shutter Speed:

  PAL: 1/4s~1/100,000s NTSC: 1/3s~1/100,000s

• Minimum Illumination:

  0.005Lux/F1.6, 30IRE, 0Lux IR on

• Day/Night:

  Auto (ICR) / Manual

• IR backlight to:

  50 meters

• IR On/Off Control:

  Auto / Manual

• IR LEDs:

  2

• Camera
• IRE:

  30, 0Lux IR on

• S/N Ratio:

  > 65dB

• Pan/Tilt/Rotation:

  0°-360°(pan); 0°-70°(tilt); 0°-360°(rotation)

• Lens
• Lens type:

  Fixed

• Focal Length:

  2.8 mm

• Mount Type:

  Board-in

• Max Aperture:

  F1.6

• Angle of View:

  110.8° (H)

• Iris Type:

  Fixed aperture

• Focus Control:

  Auto / Manual

• Close Focus Distance:

  1.8 m

• Video
• Frame Rate:

  15fps@4K, 20fps@6MP, 25/30fps@4MP

• OSD Menu:

  Yes

• BLC:

  BLC / HLC / WDR

• WDR:

  120dB

• White Balance:

  Auto / Manual

• Gain Control:

  AGC

• Noise Reduction:

  2D/3D

• Smart light:

  Auto / Manual

• Lowlight performance technology:

  Starlight

• Perimeter Protection
• Face Recognition
• Metadata
• Artificial Intelligence
• Certification
• Certifications:

  CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

• Port
• Audio Input:

  1

• Video Port:

  1-channel BNC high definition video output / CVBS video output (DIP switch)

• Built-in Microphone:

  Yes

• Network
• Compatible accessories:

  PFA130-E, PFB204W, PFA152-E

• Power
• Power Supply:

  12V DC ±30%

• Power Consumption:

  < 8W

• Environment
• Operating Temperature:

  - 30°C to + 60°C

• Operating RH:

  < 90% RH

• Storage Temperature:

  - 30°C to + 60°C

• Protection:

  IP67

• Construction
• Casing:

  Aluminium

• Dimensions:

  Φ106 mm x 99.2 mm

• Net Weight:

  0.5 kg

• Gross Weight:

  0.62 kg

• Shipping package - DAHUA HAC-HDW2802T-A-0280B
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  9.92 x 10.6 x 10.6; Weight: 0.62 kg.;
