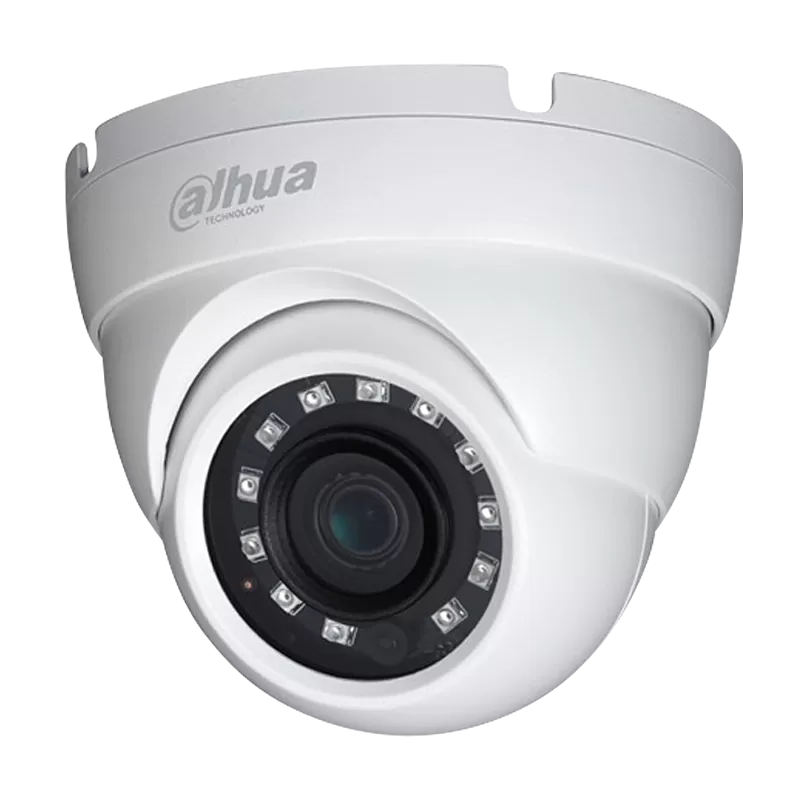

Dahua HAC-HDW1800M 4K Real-time HDCVI IR Eyeball Camera
- Code: 1710092
- In stock
- Weight: 0.35 kg
Comments
Technical information
-
General
-
Case Type:
Eyeball
-
Series:
Lite
-
Color:
White
-
Image Sensor:
1/2.7” 4K Progressive CMOS
-
Resolution:
4K (3840 × 2160); 5M (2592 × 1944); 4M (2560 × 1440); 960H (960 × 576/960 × 480)
-
Resolution_surveillance:
8 Mp
-
Scanning System:
Progressive
-
Electronic Shutter Speed:
PAL: 1/25~1/100000s NTSC: 1/30~1/100000s
-
Minimum Illumination:
0.03Lux/F2.0, 30IRE, 0Lux IR on
-
Day/Night:
Auto (ICR)
-
IR backlight to:
30 meters
-
IR On/Off Control:
Auto / Manual
-
IR LEDs:
12
-
Camera
-
IRE:
30, 0Lux IR on
-
S/N Ratio:
> 65dB
-
Pan/Tilt/Rotation:
0° - 360° (pan), 0° - 78° (tilt), 0°- 360° (rotation)
-
Lens
-
Lens type:
Fixed
-
Focal Length:
2.8 mm
-
Mount Type:
M12
-
Max Aperture:
F2.0
-
Angle of View:
105° (H)
-
Iris Type:
Fixed aperture
-
Close Focus Distance:
1 m
-
Video
-
Frame Rate:
CVI: 4K@25/30fps; 4K@15fps; 5M@20fps; 4M@25fps/30fps; AHD: 4K@15fps; TVI: 4K@15fps; CVBS: 960H
-
BLC:
BLC / HLC / DWDR
-
WDR:
DWDR
-
White Balance:
Auto / Manual
-
Gain Control:
Auto / Manual
-
Noise Reduction:
2D NR
-
Smart light:
Yes
-
Mirror:
Off/On
-
Privacy Masking:
Off/On (8 area, rectangle)
-
Perimeter Protection
-
Face Recognition
-
Metadata
-
Artificial Intelligence
-
Certification
-
Certifications:
CE (EN55032, EN55024, EN50130-4,EN60950-1) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
-
Port
-
Video Port:
Video output choices of CVI/TVI/AHD/CVBS by one BNC port
-
Network
-
Compatible accessories:
PFA13A-E, PFB204W, PFA152-2, PFB220C
-
Power
-
Power Supply:
12V DC ±30%
-
Power Consumption:
Max 4.3W (12V DC, IR on)
-
Environment
-
Operating Temperature:
- 40°C to + 60°C
-
Operating RH:
< 95% RH (non-condensation)
-
Storage Temperature:
- 40°C to + 60°C
-
Protection:
IP67
-
Construction
-
Casing:
Metal
-
Dimensions:
Φ93.4 mm × 79.4 mm
-
Net Weight:
0.27 kg
-
Gross Weight:
0.35 kg
- Shipping package - DAHUA HAC-HDW1800M-0280B
- Packages quantity:
1 pc.
-
Package dimensions (HxWxD cm):
7.94 x 9.34 x 9.34; Weight: 0.35 kg.;
