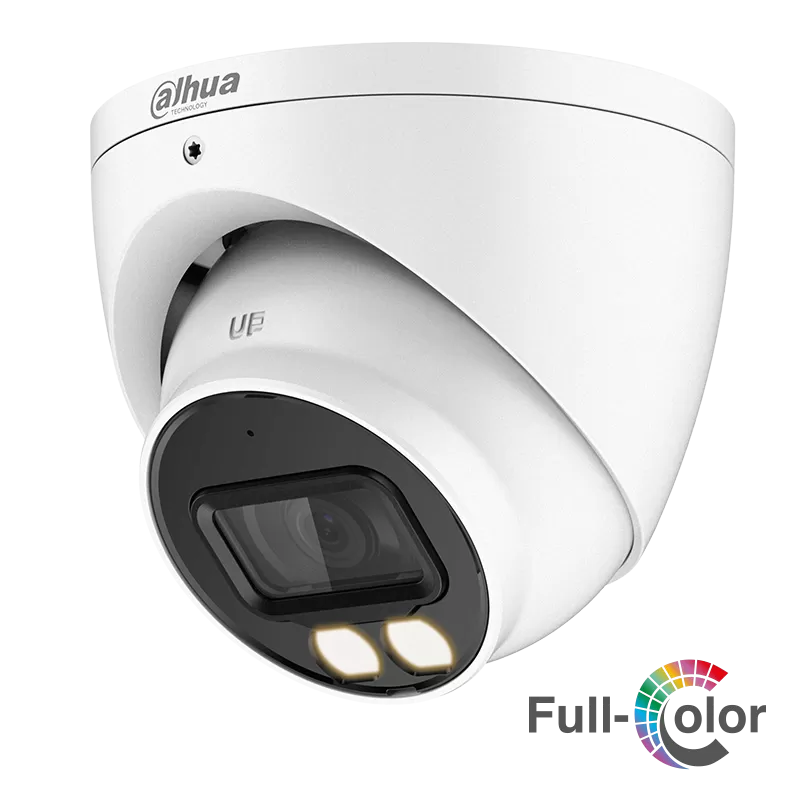

Dahua HAC-HDW1239T-A-LED-0280B-S2 2MP Full-color HDCVI Eyeball Camera

Technical information

• General
• Case Type:

  Eyeball

• Series:

  Lite

• Color:

  White

• Image Sensor:

  1/2.8” 2 Megapixel Progressive CMOS

• Resolution:

  1080p (1920 × 1080); 960H (960 × 576/960 × 480)

• Resolution_surveillance:

  2 Mp

• Scanning System:

  Progressive

• Electronic Shutter Speed:

  PAL: 1/25~1/100000s NTSC: 1/30~1/100000s

• Minimum Illumination:

  0.001 Lux/F1.6, 30IRE, 0 Lux LED on

• Fill Light (White Light) Distance:

  40 m

• Fill Light On/Off Control:

  Auto / Manual

• Fill Light Number:

  2

• Camera
• S/N Ratio:

  > 65dB

• Pan/Tilt/Rotation:

  0° - 360° (pan), 0° - 78° (tilt), 0°- 360° (rotation)

• Lens
• Lens type:

  Fixed

• Focal Length:

  2.8 mm

• Mount Type:

  M12

• Max Aperture:

  F1.6

• Angle of View:

  107° (H)

• Iris Type:

  Fixed aperture

• Close Focus Distance:

  0.7 m

• Video
• Frame Rate:

  CVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; AHD: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; TVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; CVBS: PAL: 960 × 576H; NTSC: 960 × 480H

• BLC:

  BLC / HLC / WDR

• WDR:

  130dB

• SuperAdapt:

  Intelligent algorithm for automatic picture adjustment.

• White Balance:

  Auto; Area WB

• Gain Control:

  Auto / Manual

• Noise Reduction:

  3D NR

• Smart light:

  Yes

• Mirror:

  Off/On

• Privacy Masking:

  Off/On (8 area, rectangle)

• Lowlight performance technology:

  Full-Color

• Full-Color:

  Yes

• Perimeter Protection
• AI Functions:

  Privacy masking

• Face Recognition
• Metadata
• Artificial Intelligence
• Certification
• Certifications:

  CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

• Port
• Video Port:

  Video output choices of CVI/TVI/AHD/CVBS by one BNC port

• Built-in Microphone:

  Yes

• Network
• Compatible accessories:

  PFB205W, PFA130-E, PFA139, PFA152-E, PFA106, PFB220C

• Power
• Power Supply:

  12V DC ±30%

• Power Consumption:

  Max 5.1 W (12 V DC, LED on)

• Environment
• Operating Temperature:

  - 40°C to + 60°C

• Operating RH:

  < 95% RH (non-condensation)

• Storage Temperature:

  - 40°C to + 60°C

• Protection:

  IP67

• Construction
• Casing:

  Metal

• Dimensions:

  Φ106 mm x 93.6 mm

• Net Weight:

  0.46 kg

• Gross Weight:

  0.58 kg

• Shipping package - DAHUA HAC-HDW1239T-A-LED-0280B-S2
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  9.36 x 10.6 x 10.6; Weight: 0.58 kg.;
