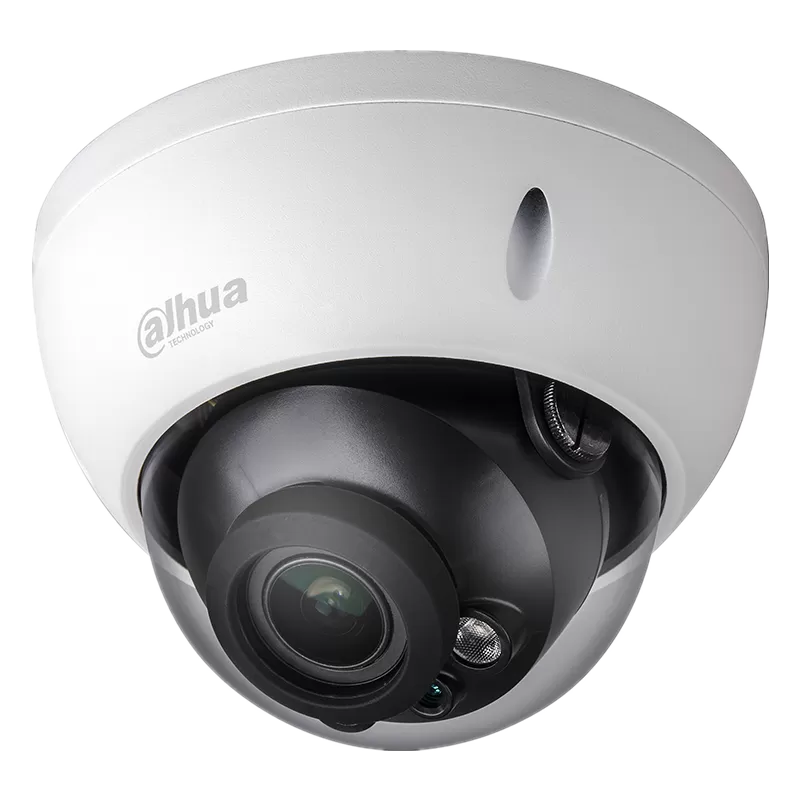

Dahua HAC-HDBW2241R-Z-27135 2MP Starlight HDCVI IR Dome Camera
- Code: 1710052
- In stock
- Weight: 0.49 kg
Comments
Technical information
-
General
-
Case Type:
Dome
-
Series:
Pro
-
Color:
White
-
Image Sensor:
1/2.8” 2 Megapixel Progressive CMOS
-
Resolution:
1080P (1920×1080)
-
Resolution_surveillance:
2 Mp
-
Scanning System:
Progressive
-
Electronic Shutter Speed:
PAL: 1/4s~1/100,000s NTSC: 1/3s~1/100,000s
-
Minimum Illumination:
0.004Lux/F1.6, 30IRE, 0Lux IR on
-
Day/Night:
Yes
-
IR backlight to:
30 meters
-
IR On/Off Control:
Auto / Manual
-
IR LEDs:
2
-
Camera
-
IRE:
30, 0Lux IR on
-
S/N Ratio:
> 65dB
-
Pan/Tilt/Rotation:
0°-355°(pan); 0°-75°(tilt); 0°-355°(rotation)
-
Lens
-
Lens type:
Varifocal
-
Focal Length:
2.7 mm to 13.5 mm
-
Mount Type:
Board-in
-
Max Aperture:
F1.6
-
Angle of View:
108.7° - 28.7° (H)
-
Iris Type:
Fixed aperture
-
Focus Control:
Auto / Manual
-
Close Focus Distance:
0.2 m
-
Video
-
Frame Rate:
25/30fps@1080P, 25/30/50/60fps@720P
-
OSD Menu:
Yes
-
BLC:
BLC / HLC / WDR
-
WDR:
120dB
-
White Balance:
Auto / Manual
-
Gain Control:
AGC
-
Noise Reduction:
2D/3D
-
Smart light:
Auto / Manual
-
Lowlight performance technology:
Starlight
-
Perimeter Protection
-
Face Recognition
-
Metadata
-
Artificial Intelligence
-
Certification
-
Certifications:
CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
-
Port
-
Video Port:
1-channel BNC high definition video output / CVBS video output (Can switch)
-
Network
-
Compatible accessories:
PFA137, PFA200W, PFB203W, PFB200C, PFA152-E, PFA106, PFB220C
-
Power
-
Power Supply:
12V DC ±30%
-
Power Consumption:
< 4.7W
-
Environment
-
Operating Temperature:
- 30°C to + 60°C
-
Operating RH:
< 95% RH
-
Storage Temperature:
- 30°C to + 60°C
-
Protection:
IP67
-
Vandal Resistance:
IK10
-
Construction
-
Casing:
Aluminium
-
Dimensions:
Φ122 mm x 88.9 mm
-
Net Weight:
0.39 kg
-
Gross Weight:
0.49 kg
