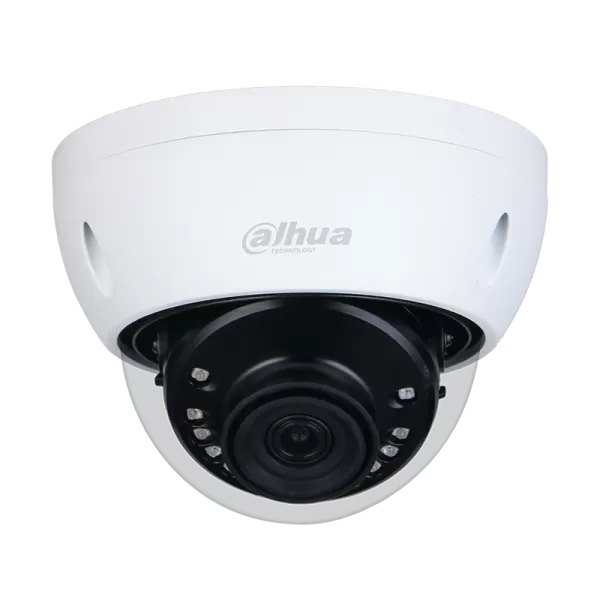

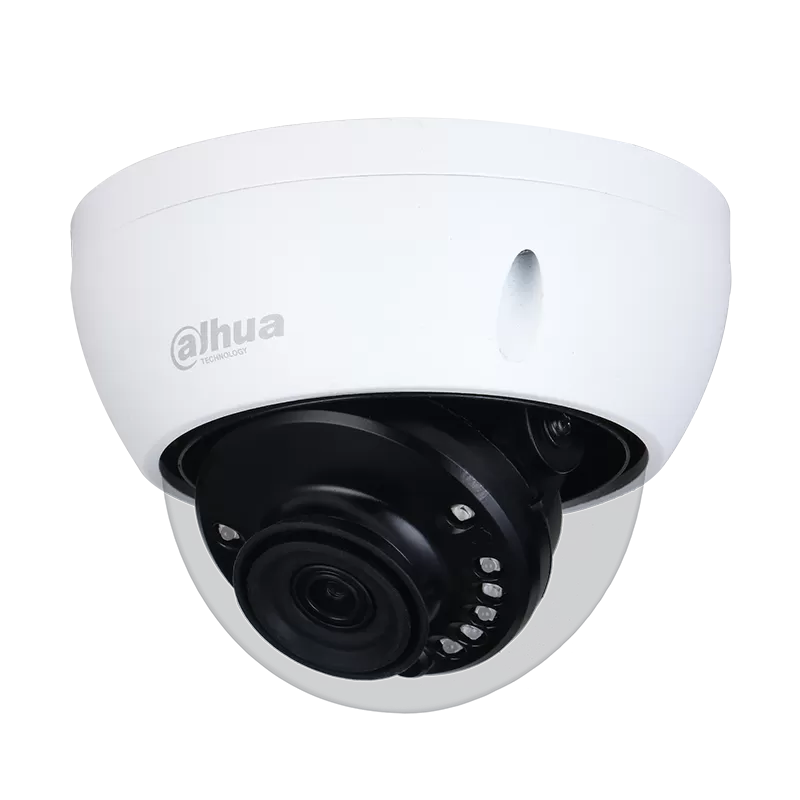

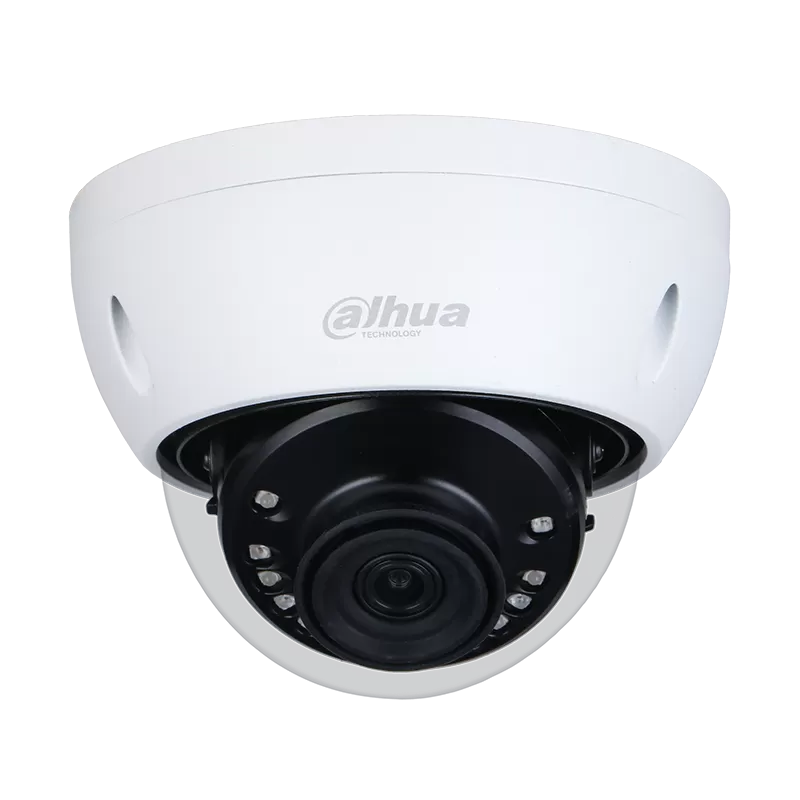

Dahua HAC-HDBW1500E-0280B-S2 5MP HDCVI IR Dome Camera

Technical information

• General
• Case Type:

  Dome

• Series:

  Lite

• Color:

  White

• Image Sensor:

  1/2.7” 5 Megapixel Progressive CMOS

• Resolution:

  5M (2880 × 1620)

• Resolution_surveillance:

  5 Mp

• Scanning System:

  Progressive

• Electronic Shutter Speed:

  PAL: 1/25~1/100000s NTSC: 1/30~1/100000s

• Minimum Illumination:

  0.005Lux Lux/F1.6, 30IRE, 0 Lux IR on

• Day/Night:

  Auto (ICR)

• IR backlight to:

  30 meters

• IR On/Off Control:

  Auto / Manual

• IR LEDs:

  12

• Camera
• IRE:

  30, 0Lux IR on

• S/N Ratio:

  > 65dB

• Pan/Tilt/Rotation:

  0° - 355° (pan); 0° - 65° (tilt); 0° - 355° (rotation)

• Lens
• Lens type:

  Fixed

• Focal Length:

  2.8 mm

• Mount Type:

  M12

• Max Aperture:

  F1.6

• Angle of View:

  111° (H)

• Iris Type:

  Fixed aperture

• Close Focus Distance:

  0.9 m

• Video
• Frame Rate:

  CVI: PAL: 5M@25 fps; 4M@25 fps; 1080P@25 fps NTSC: 5M@25 fps; 4M@30 fps; 1080P@30 fps AHD: PAL: 4M@25 fps; NTSC: 4M@30 fps TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps CVBS: PAL: 960H; NTSC: 960H

• BLC:

  BLC / HLC / DWDR

• WDR:

  DWDR

• White Balance:

  Auto / Manual

• Gain Control:

  Auto / Manual

• Noise Reduction:

  2D NR

• Smart light:

  Yes

• Mirror:

  Off/On

• Privacy Masking:

  Off/On (8 area, rectangle)

• Lowlight performance technology:

  Starlight

• Perimeter Protection
• Face Recognition
• Metadata
• Artificial Intelligence
• Certification
• Certifications:

  CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

• Port
• Video Port:

  Video output choices of CVI/TVI/AHD/CVBS by one BNC port

• Network
• Power
• Power Supply:

  12V DC ±30%

• Power Consumption:

  Max 3.5W (12V DC, IR on)

• Environment
• Operating Temperature:

  - 40°C to + 60°C

• Operating RH:

  < 95% RH (non-condensation)

• Storage Temperature:

  - 40°C to + 60°C

• Protection:

  IP67

• Vandal Resistance:

  IK10

• Construction
• Casing:

  Metal+Plastic

• Dimensions:

  Φ109.9 mm x 81 mm

• Net Weight:

  0.31 kg

• Gross Weight:

  0.45 kg

• Shipping package - DAHUA HAC-HDBW1500E-0280B-S2
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  8.1 x 10.99 x 10.99; Weight: 0.45 kg.;
