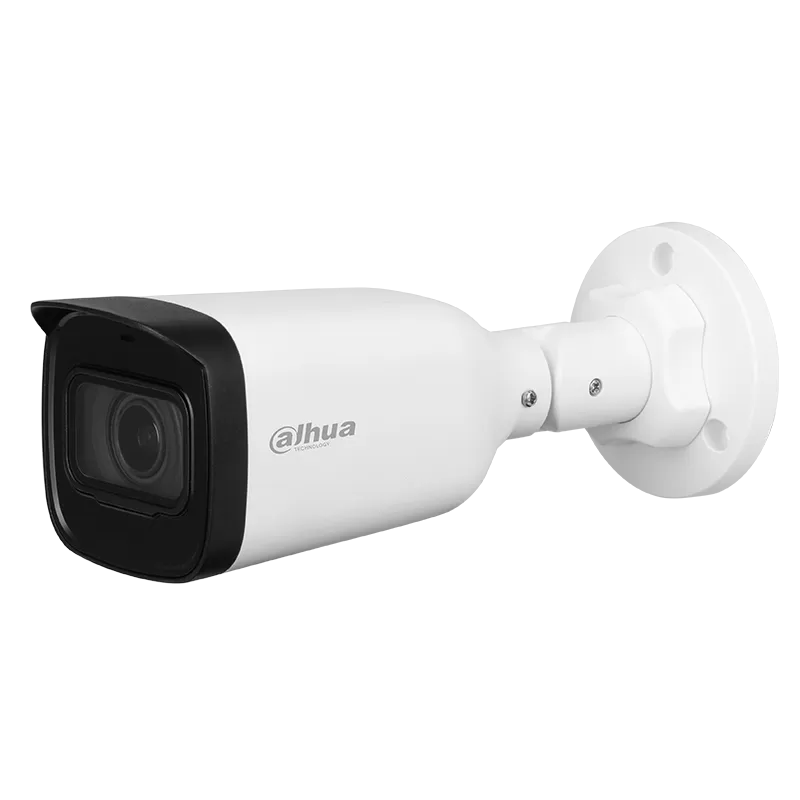

Dahua HAC-B3A21-Z-2712 2MP HDCVI IR Bullet Camera

Technical information

• General
• Case Type:

  Bullet

• Series:

  Cooper

• Color:

  White

• Image Sensor:

  1/2.7” 2 Megapixel Progressive CMOS

• Resolution:

  1080P (1920×1080); 720P (1280×720); 960H (960× 576/960×480)

• Resolution_surveillance:

  2 Mp

• Scanning System:

  Progressive

• Electronic Shutter Speed:

  PAL: 1/25~1/100000s NTSC: 1/30~1/100000s

• Minimum Illumination:

  0.04Lux/F1.7, 30IRE, 0Lux IR on

• Day/Night:

  Auto (ICR)

• IR backlight to:

  40 meters

• IR On/Off Control:

  Auto / Manual

• IR LEDs:

  2

• Camera
• IRE:

  30, 0Lux IR on

• S/N Ratio:

  > 65dB

• Lens
• Lens type:

  Varifocal

• Focal Length:

  2.7 mm to 12 mm

• Mount Type:

  Ф14

• Max Aperture:

  F1.7

• Angle of View:

  33°–102° (H)

• Iris Type:

  Fixed aperture

• Close Focus Distance:

  1.2 m

• Video
• Frame Rate:

  CVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps; AHD: 1080P@25/30fps; 720P@25/30fps; TVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps; CVBS: 960H

• BLC:

  BLC / HLC / DWDR

• WDR:

  DWDR

• White Balance:

  Auto / Manual

• Gain Control:

  Auto / Manual

• Noise Reduction:

  2D NR

• Mirror:

  Off/On

• Privacy Masking:

  Off/On (8 area, rectangle)

• Electronic Defog:

  Yes

• Perimeter Protection
• AI Functions:

  Defog , Privacy masking

• Face Recognition
• Metadata
• Artificial Intelligence
• Certification
• Certifications:

  CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

• Port
• Video Port:

  Video output choices of CVI/TVI/AHD/CVBS by one BNC port

• Built-in Microphone:

  No

• Network
• Compatible accessories:

  PFA13G, PFA130-E, PFA152-E

• Power
• Power Supply:

  12V DC ±30%

• Power Consumption:

  Max 6.6W (12V DC, IR on)

• Environment
• Operating Temperature:

  - 30°C to + 60°C

• Operating RH:

  < 95% RH

• Storage Temperature:

  - 30°C to + 60°C

• Protection:

  IP67

• Construction
• Casing:

  Metal+Plastic

• Dimensions:

  243.5 mm × Φ90.70 mm × 90.4 mm

• Net Weight:

  0.39 kg

• Gross Weight:

  0.53 kg

• Shipping package - DAHUA HAC-B3A21-Z-2712
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  9.07 x 9.04 x 24.35; Weight: 0.53 kg.;
