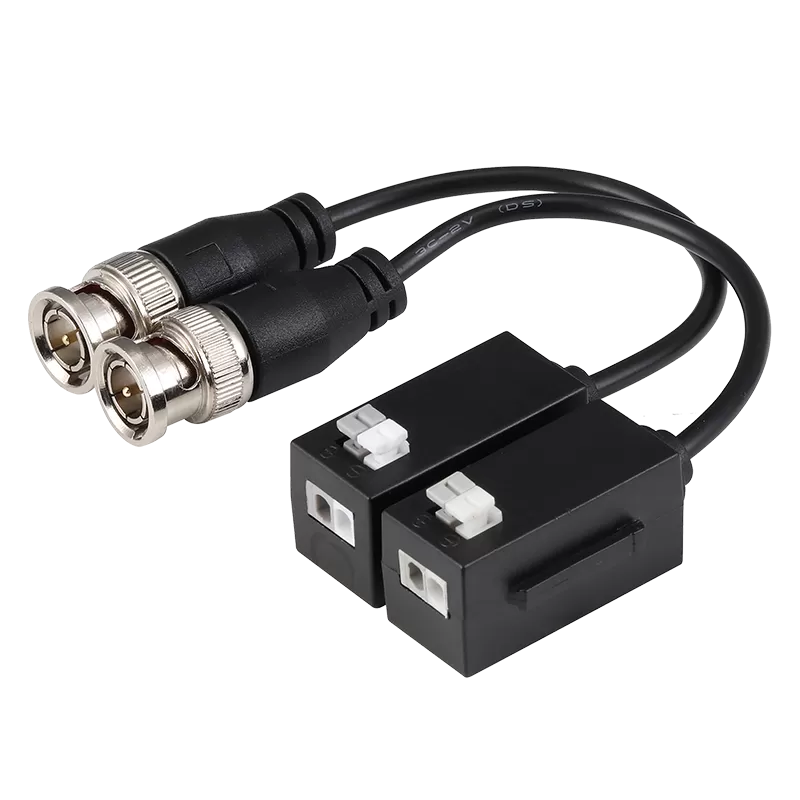

Dahua DH-PFM800-4K 1-CH Passive Video Balun

Technical information

• General
• Material:

  ABS

• Operating Temperature:

  -30℃ ~ +70℃

• Operating RH:

  < 95% RH

• Weight:

  0.04 kg

• Dimension:

  173.8 mm x 19.5 mm x 21 mm

• Детайли за продукт:

  Transmission Signal: 1-CH, Network cable Type: UTP CAT5E/6 (material: CU), Coaxial Video Connector: BNC-M; Connection Way: RJ45, Compatible Format: HDCVI/TVI/AHD/CVBS, Resolution: 720P/1080P/4MP/5MP/4K, BNC Male Impedance:75 ohms, UTP Cable Impedance: 100 ohms

• Shipping package - DAHUA DH-PFM800-4K
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  2.1 x 1.95 x 17.38; Weight: 0.06 kg.;
