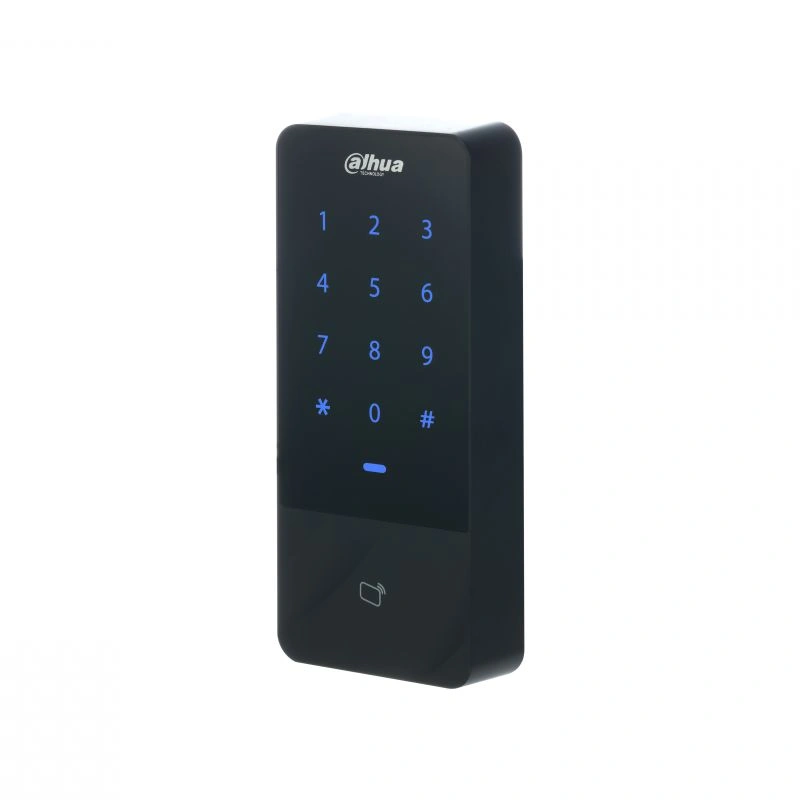

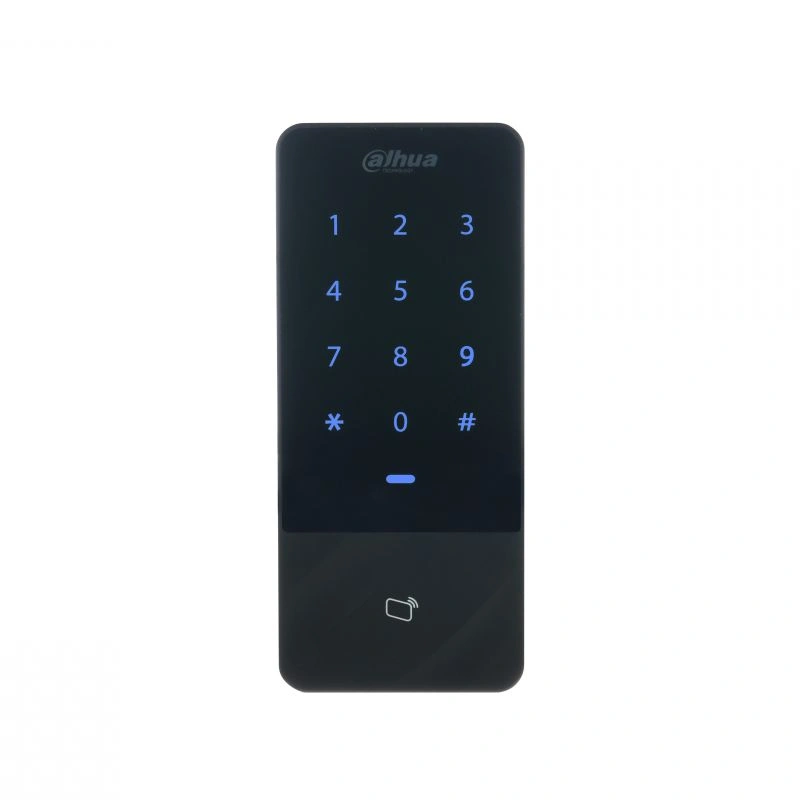

Dahua ASI1201E-V1 IC Card Access Standalone

Technical information

• Бранд:

  DAHUA

• General
• Type:

  Standalone controller

• Material:

  PC

• Operating frequency:

  13560 kHz

• Waterproof:

  IP66

• Supports up to:

  30000 cards

• User Capacity:

  30000 users

• Password Capacity:

  30500 passwords

• Record Capacity:

  60000 records

• Functions
• Multiple Authentication:

  Yes

• Auto-Registration:

  Yes

• RS-485:

  1

• Wiegand:

  1

• Readers:

  1+1

• Exit Button:

  1

• Door Status Detection:

  1

• Tamper:

  Yes

• Control of electromagnetic lock:

  Yes

• Visual indication:

  Yes

• Technical information
• Reading distance:

  0 - 60 mm

• Working voltage:

  DC 12V, 2A

• Current consumption during operation:

  < 12 W

• Installation:

  Surface mounted

• Operating Temperature:

  –30°C to +60°C

• Operating Humidity:

  0%–90% (RH), non-condensing

• Dimensions:

  142 × 62 × 23 mm

• Shipping package - DAHUA ASI1201E-V1
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  2.3 x 14.2 x 6.2; Weight: 0.6 kg.;
